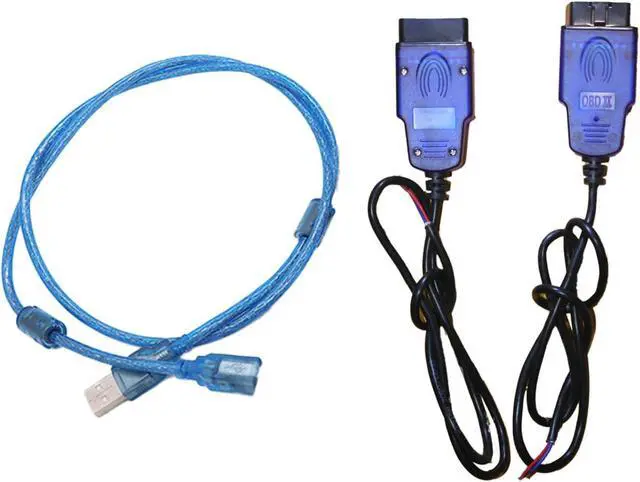

USB to CAN Adapter Dual-Channel CAN Analyzer with OBD Adapter
- USB, CAN1, and CAN2 are completely isolated. CAN-bus circuit adopts high-speed magnetic lotus root isolation and Independent isolated DC-DC power supply modules, USB, CAN1, and CAN2 are completely isolated
- Support protocol conversion between USB and CAN-bus. Support Decoding And Analyzing For Multiple CAN Protocols. Support Single-Wire CAN, High-Speed CAN And Low-Speed/Fault-Tolerant CAN
- Adopt electrical isolation, the isolation voltage is 2500V.
- Max data flow: more than 8000 fps (standard frame) for receiving and 8000 fps (standard frame) for transmitting and can be run at the same time. Buffer size: 1000 frames length buffer for transmission (with auto repeat transmission when failed) per channel, 2000 frames length buffer for receiving per channel.
- Support Various Development Environments
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

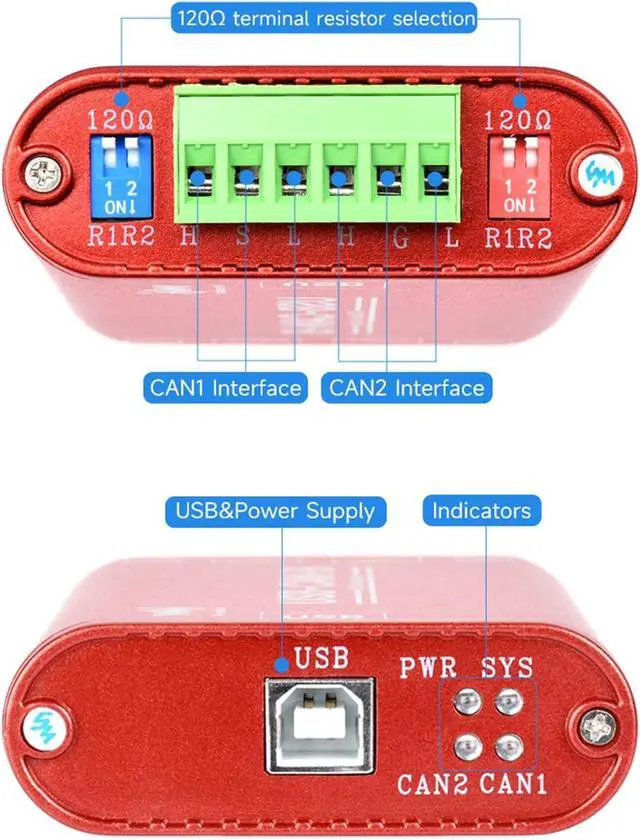

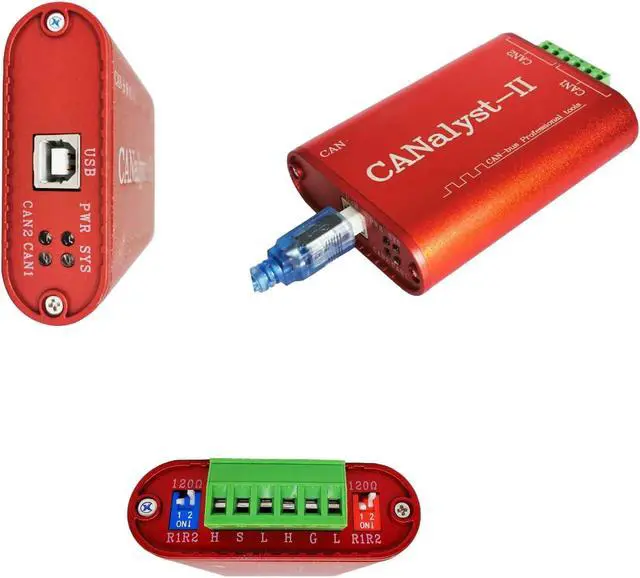

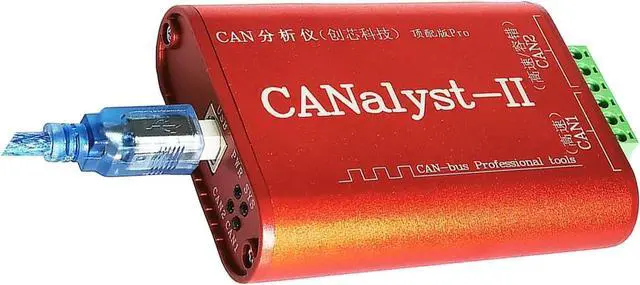

CANalyst-II analyzer is a CAN-bus adapter with a USB2.0 interface and 2 CAN interfaces and has a CAN-bus protocol analysis function that supports SAE J1939, DeviceNet, CANopen, iCAN, and customized advanced protocol analysis function, also It is compatible with ZLG CANPro software and Can carry out bidirectional transmission.
CAN channel: 2
CAN interface: CAN 2.0A, 2.0B, conform to ISO 11898-2
CAN baud rate: 5k~1Mbps

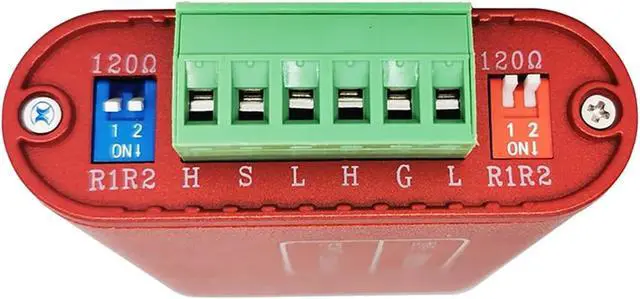

CAN connector: Open6 terminal block

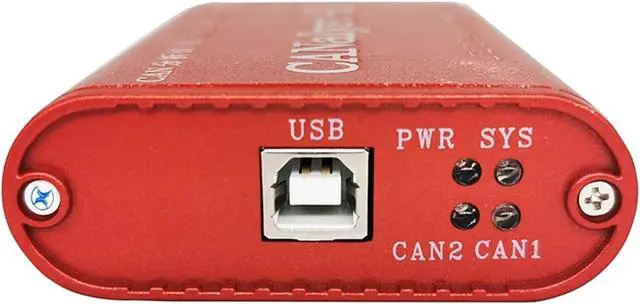

USB interface: USB 2.0
Receive maximum: 8500fps
Isolation: DC 2500V
Shell material: Aluminum alloy
Typical applications
Transmit or receive messages in the CAN-bus network via PC or laptop's USB;
Data collection, and data analysis in the fast CAN network;
CAN-bus-USB gateway;
USB interface to CAN network interface;
Extend CAN-bus line length;
Industrial site CAN network data monitoring.
