FILFEEL USB to RS232 Converter with FT4232HL Chip, Isolated Design, Overcurrent, and LED Indicators for Industrial Use
- High-Speed - Experience and stable data transfer with our USB to RS232 converter featuring the original FT4232HL chip. This program ensures that is not only reliable but also highly compatible across a wide of industrial serial devices. Connect up to four isolated RS232 interfaces seamlessly through USB for efficient multi-device management, enhancing productivity in your operations.
- Integrated Power Isolation - Our converter is designed with onboard integration of power isolation, delivering stable isolation voltage for reliable performance. The digital isolation ensures integrity while providing high reliability, which is in environments prone to electrical interference. This feature significantly reduces the of data loss or corruption, making it ideal for - applications.
- Effective - Equipped with advanced transient voltage suppression (TVS) technology, this converter effectively safeguards voltages and transient spikes in the circuit. The built-in and static guard ensure enhanced
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

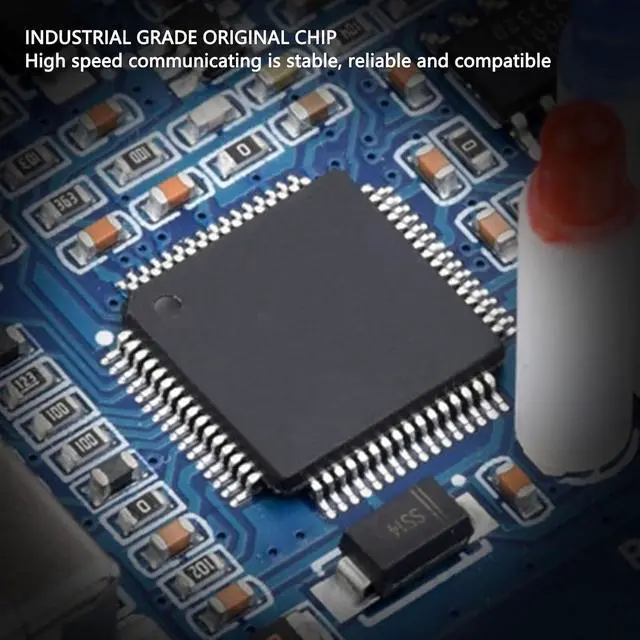

1. FT4232HL Chip: Adopting the original FT4232HL chip program, the high speed communicating is stable, reliable and wide compatibility. 4 isolated for RS232 interfaces can be extended via USB, and multiple for serial devices can be accessed.
2. On Board Isolation: Integrated power isolation, which can provide stable isolation voltage. On board integrated digital isolation, signal isolation, high reliability, strong anti interference, low power consumption.
3. Surge And Static Guard: TVS (transient voltage suppression tube), which can effectively the surge voltage and transient spike voltage in the circuit, thunder and static guard.
4. Over Current And Over Voltage Guard: USB to for RS232 converter, with self recovery fuse and guard diode, can ensure stable output of current and voltage, prevent over current and over voltage, and improve shock resistance.
5. Power Supply: Extra power supply interface on terminal, support 536V DC wide voltage range power supply. 9 external LED indicators, convenient to check the power supply and signal transmitting and receiving status.
Spec:
Item Type: USB to for RS232 Converter
Material: Aluminum Alloy
Host Interface: USB
Device Interface: for RS232
Communicating Range: 300bps-921600bps
USB Interface:
Operating Level: 5V
Interface Format: USB B Type Interface
Interface Guard: 200mA Self Recovery Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Power Supply Voltage: 5-36V DC Power Supply Terminal
Interface Guard: Anti Reverse Connection
For RS232 Interface:
Interface Form: For DB9 Male
Interface Guard: TVS Tube Guard, Surge and Static Guard
Transmission Distance: Approx. 15m/49.2ft
Transmission Mode: Point to Point
Indicator Light:
PWR: Power indicator, access to the USB, the detection of voltage will light up red
TXD: Transmit indicator, green lamp when data is sent from the for RS232 interface
RXD: Receive indicator, blue lamp when there is data sent back from the for RS232 interface
Use Environment:
Temperature Range: -40 to 85
Humidity Range: 5% to 95%RH
Operating System: For OS X, for for etc
Package List:
1 x USB to for RS232 Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement, please allow some errors.
2. On Board Isolation: Integrated power isolation, which can provide stable isolation voltage. On board integrated digital isolation, signal isolation, high reliability, strong anti interference, low power consumption.
3. Surge And Static Guard: TVS (transient voltage suppression tube), which can effectively the surge voltage and transient spike voltage in the circuit, thunder and static guard.
4. Over Current And Over Voltage Guard: USB to for RS232 converter, with self recovery fuse and guard diode, can ensure stable output of current and voltage, prevent over current and over voltage, and improve shock resistance.
5. Power Supply: Extra power supply interface on terminal, support 536V DC wide voltage range power supply. 9 external LED indicators, convenient to check the power supply and signal transmitting and receiving status.
Spec:
Item Type: USB to for RS232 Converter
Material: Aluminum Alloy
Host Interface: USB
Device Interface: for RS232
Communicating Range: 300bps-921600bps
USB Interface:
Operating Level: 5V
Interface Format: USB B Type Interface
Interface Guard: 200mA Self Recovery Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Power Supply Voltage: 5-36V DC Power Supply Terminal
Interface Guard: Anti Reverse Connection
For RS232 Interface:
Interface Form: For DB9 Male
Interface Guard: TVS Tube Guard, Surge and Static Guard
Transmission Distance: Approx. 15m/49.2ft
Transmission Mode: Point to Point
Indicator Light:
PWR: Power indicator, access to the USB, the detection of voltage will light up red
TXD: Transmit indicator, green lamp when data is sent from the for RS232 interface
RXD: Receive indicator, blue lamp when there is data sent back from the for RS232 interface
Use Environment:
Temperature Range: -40 to 85
Humidity Range: 5% to 95%RH
Operating System: For OS X, for for etc
Package List:
1 x USB to for RS232 Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement, please allow some errors.
