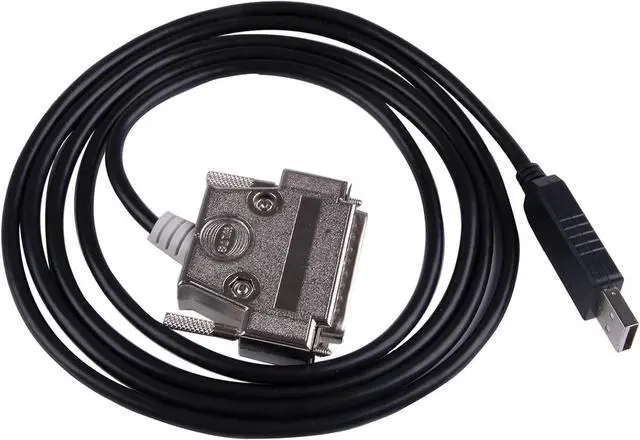

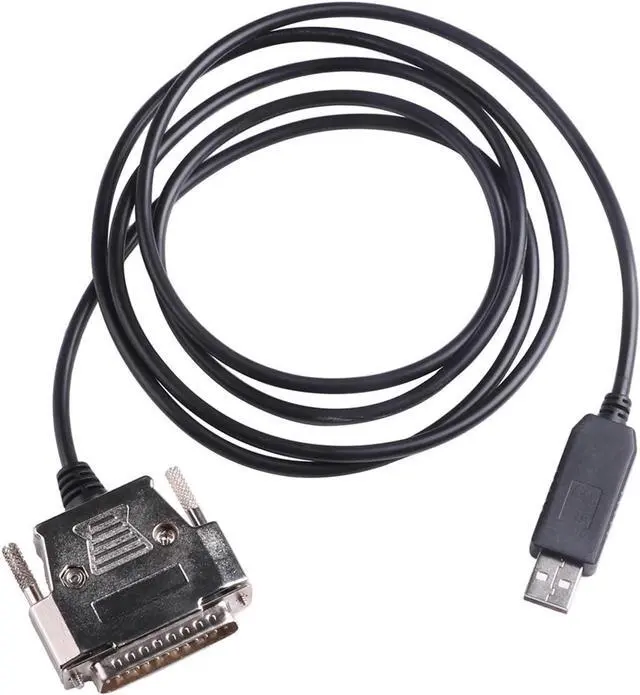

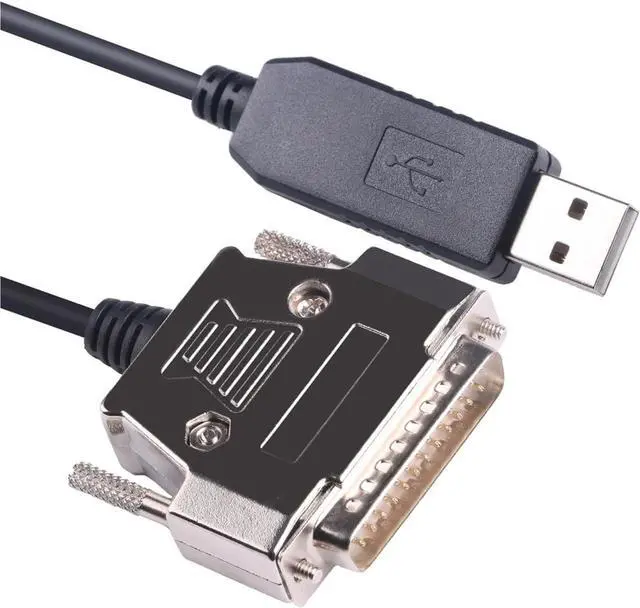

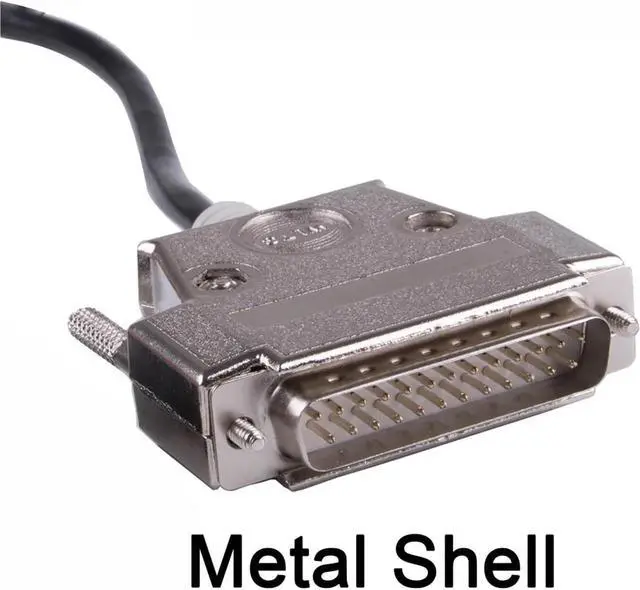

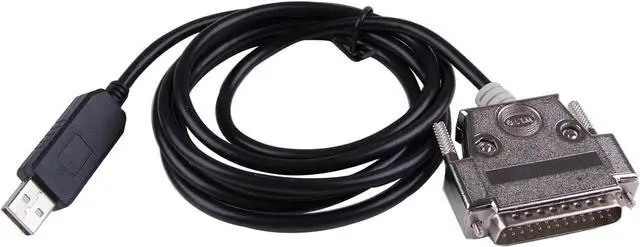

USB to DB25 Male Printer RS232 Serial Cable for Printer TM-T88VI TM-T88VRS232 Serial Adapter(5m)

Industrial Motors
USB to DB25 Male Printer RS232 Serial Cable for Printer TM-T88VI TM-T88V X68K
Length: 1.8M 5M Optional
Chipset: FT231XS
Compatiable: for connecting printer TM-T88VI TM-T88V
See the following website link for the full driver support list including OS versions and legacy OS.
The FT231XS Chip Features:
1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 2048 byte multi-timeprogrammable (MTP) memory, storing device descriptors and CBUS I/O configuration.
4. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
5. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, and RS232) at TTL levels.
6. 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
7. Royalty-free Virtual Com Port (VCP)and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
8. Configurable CBUS I/O pins.
9. Transmit and receive LED drive signals.
10. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space no parity
11. and asynchronous bit bang interface options with RD# and WR# strobes. USB Battery Charger Detection. Allows for USB peripheral devices to detect the presence of a higher power to enable improved charging.
12. Device supplied pre-programmed with unique USB serial number.
13. USB Power Configurations; supports buspowered, self-powered and bus-powered with power switching
14. Integrated +3.3V level converter for USB I/O.
15. True 3.3V CMOS drive output and TTL input;Operates down to 1V8 with external pull-ups.Tolerant of 5V input.
16. Configurable I/O pin output drive strength; 4 mA(min) and 16 mA(max).
17. Integrated power-on-reset circuit.
18. Fully integrated AVCC supply filtering - no external filtering required.
19. UART signal inversion option.
20. +5V Single Supply Operation.
21. Internal 3V3/1V8 LDO regulators
22. Low operating and USB suspend current; 8mA (active-typ) and 125uA (suspend-typ).
23. UHCI/OHCI/EHCI host controller compatible
24. USB 2.0 Full Speed capable.
25. Extended operating temperature range; -40 to 85C.
==========
Model Number : 000378
Type : Serial Cable
Length : 1.8M 5M
Chipset : FT231XS
