1PCS IOT Accessory CubeCell Lora Node ASR6502 LoRaWAN Node Applications for with Antenna 1/2AA Battery case 868 915MHZ(433-470MHz)

Serial Adapters
NOTE:
Include antenna;
Include SH1.25 x 2 battery connector;
Not include battery;
2.54 headers default not assemble.

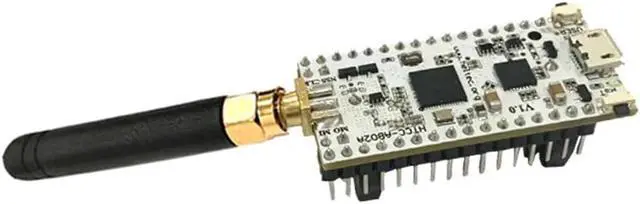

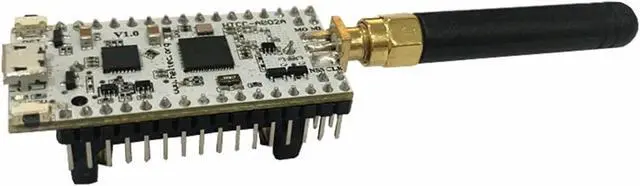

HTCC-AB02A is a part of the "CubeCell" series, with the following features:
Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;

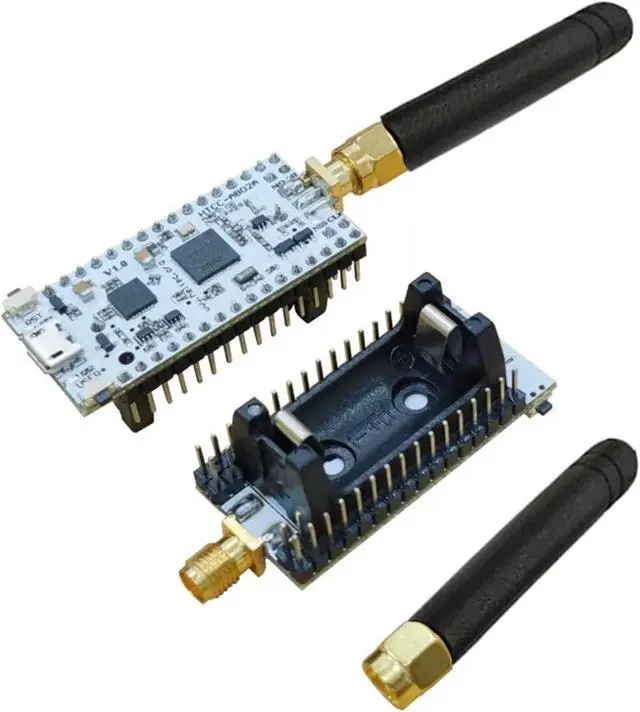

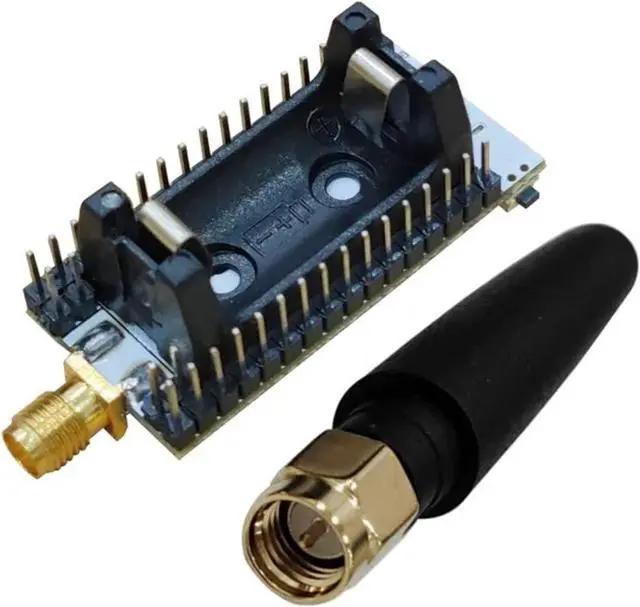

1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can't charge, but onboard USB / battery power automatic switching allows connect USB when the battery is assembled);
Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Good impendence matching and long communication distance.
Technical Parameters
MCU:ASR6502 (48 MHz ARM Cortex M0+ MCU, 128KB FLASH, 16KB SRAM )
LoRa Chip:ASR6502 (Internal assembled LoRa Transceiver SX1262)
LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power:22 ± 1dB
Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1;
12 bits ADC; 8 channel DMA engine;
14 x GPIO;
FLASH:128KB internal FLASH
Interface:Micro USB x 1; LoRa (SMA) x 1
Size:56.6 x 24 x 20 mm
USB-UART bridge:CP2102
Battery Type:3.7V Lithium (SH1.25 x 2 socket)
Battery detection circuit:
External device power control(Vext):
Low power design: Deep Sleep 3.5uA
Scene application
==========
Model Number : HTCC-AB02A
