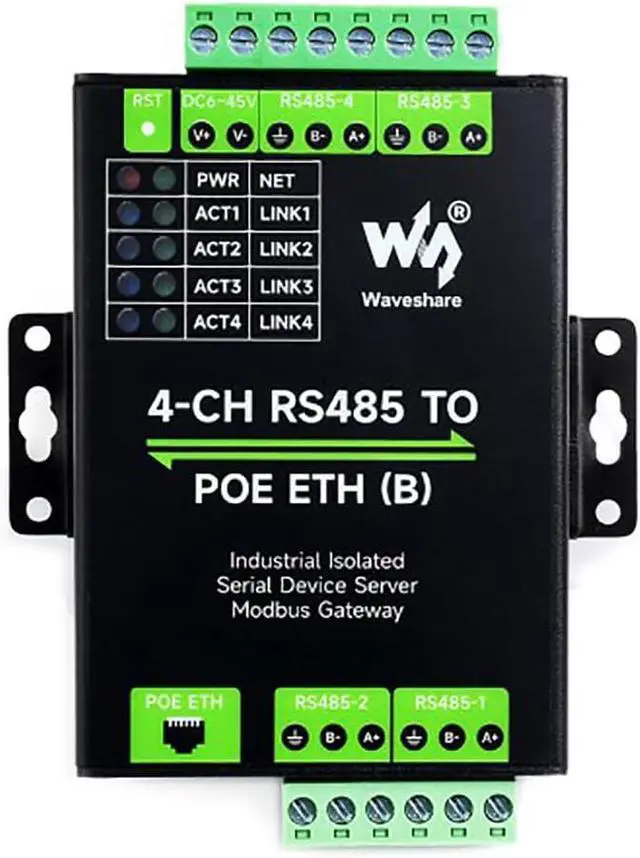

Industrial Isolated 4-Ch RS485 to RJ45 Ethernet Serial Server Adapter Support Modbus Gateway/MQTT/JSON Bi-Directional Transparent Transmission ETH to RS485 Rail-Mount Serial Module PoE Ethernet Port

Bi-directional transmissionEthernet to RS485, Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet
Work independently4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission
Multi Power Supply Options RJ45 To RS485, support PoE Ethernet port power supply, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input
Multi configuration methods4-Ch RS485 to RJ45 adapter supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address
Multi hosts roll-polling Support4-Ch RS485 to Ethernet converter different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices
Multiple features4-Ch RS485 to Ethernet adapter Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc. Suitable for Modbus networking upgrade, can be used with specific configuration software

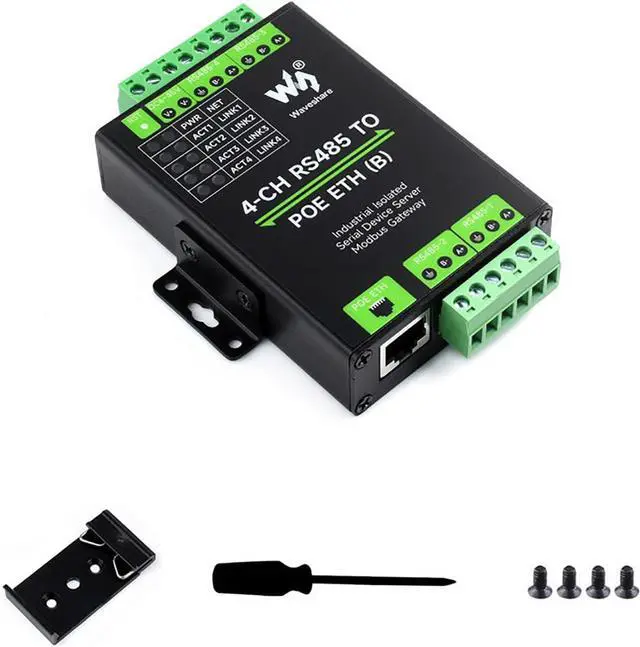

Installation designIndustrial Rail-mount Design, Support Wall-mount and Rail-mount Installation, Compact Size, Easy Installation, Cost-Effective
Multiple ProtectionOnboard power supply and signal isolation, TVS (transient voltage suppression tube), resettable fuses and protection diodes
