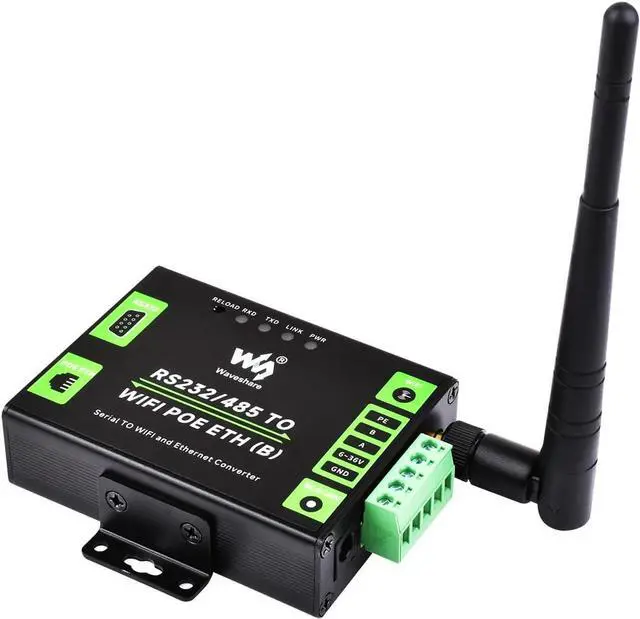

Waveshare Serial Server RS232/485 to WiFi and Ethernet, Ethernet to WiFi Converter with POE Function, Modbus Gateway, MQTT Gateway, Serial Port to HTTPD Client Functions, DC 6~36V / PoE Power Supply

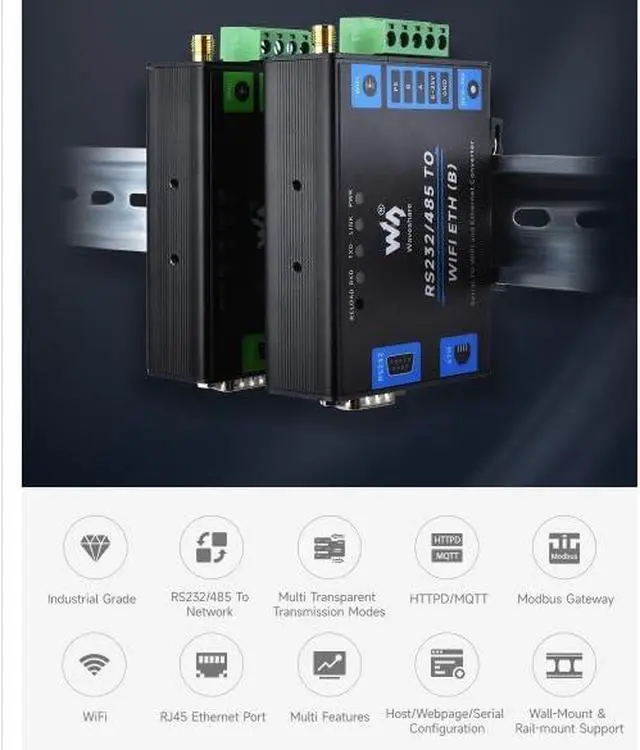

RS232/485 To WiFi and Ethernet with POE Industrial Grade Serial Server, it combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. Industrial grade metal case design, supports wall-mount and rail-mount installations, small in size, easy to install.

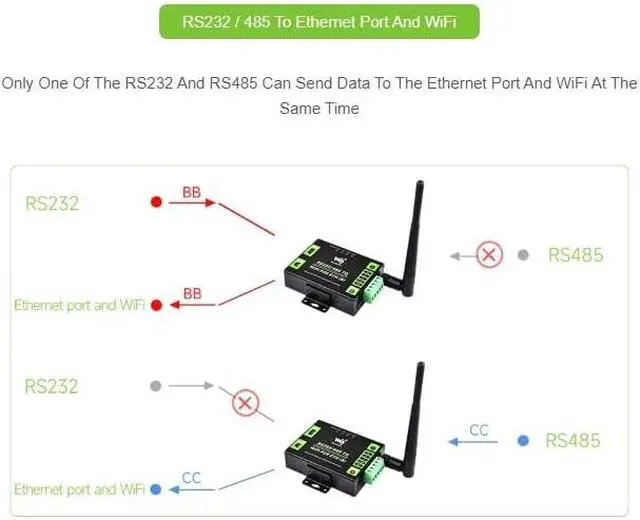

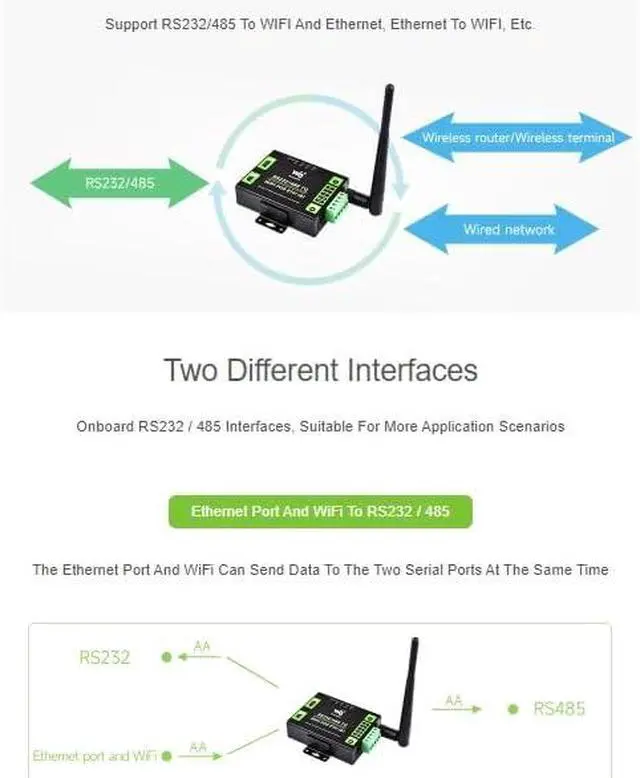

Ethernet Port and WiFi To RS232 / 485The module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Ethernet Port and WiFi To RS232 / 485: The Ethernet port and WiFi can send data to the two serial ports at the same time. RS232 / 485 To Ethernet Port and WiFi Only one of the RS232 and RS485 can send data to the Ethernet port and WiFi at the same time
Support multi wireless networking methodsSupport AP mode, STA mode, and AP+STA mode. Support multi wired networking methodsSupport APLAN, APWAN, Router, and Bridge mode.

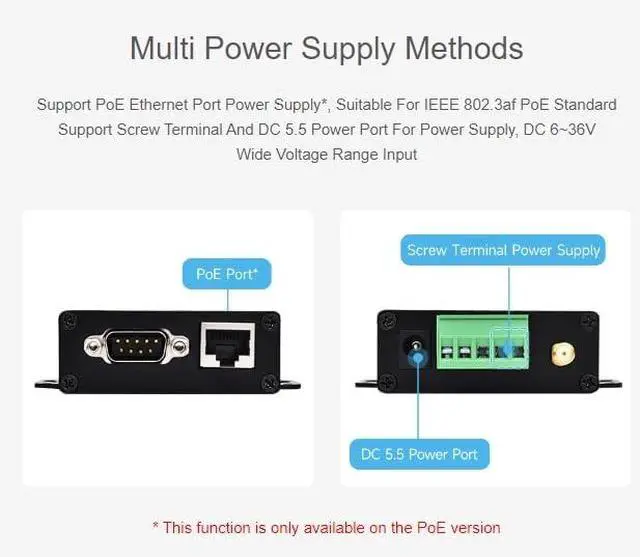

Power Supply MethodsSupport PoE Ethernet port power supply*, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal and DC 5.5 Power Port for Power Supply, DC 6~36V Wide Voltage Range Input. Support transparent transmission modeSupport TCP Server, TCP Client, UDP Server, UDP Client
ApplicationsIt is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring,etc.
