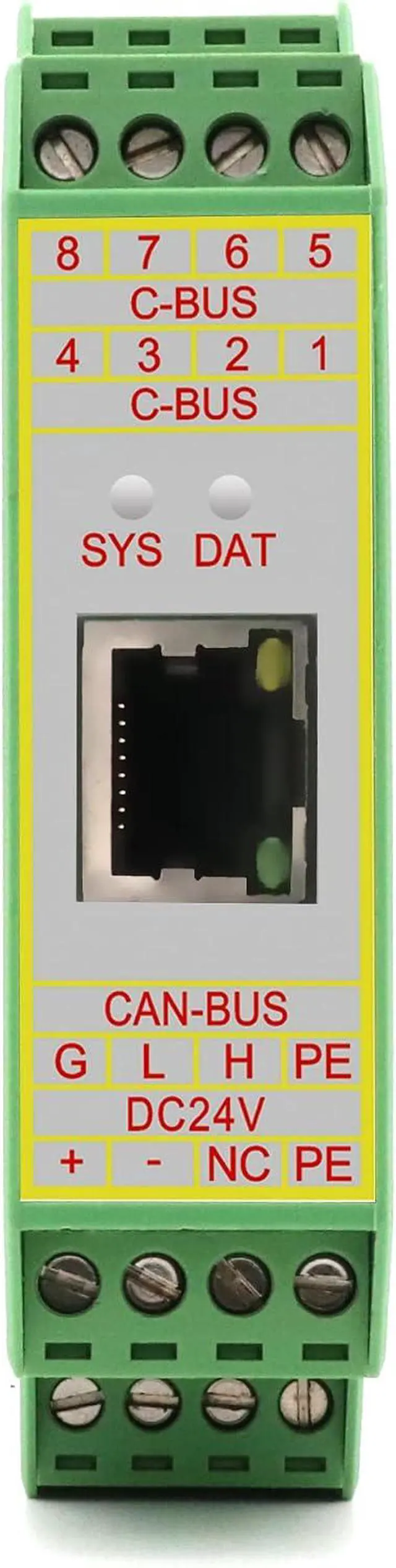

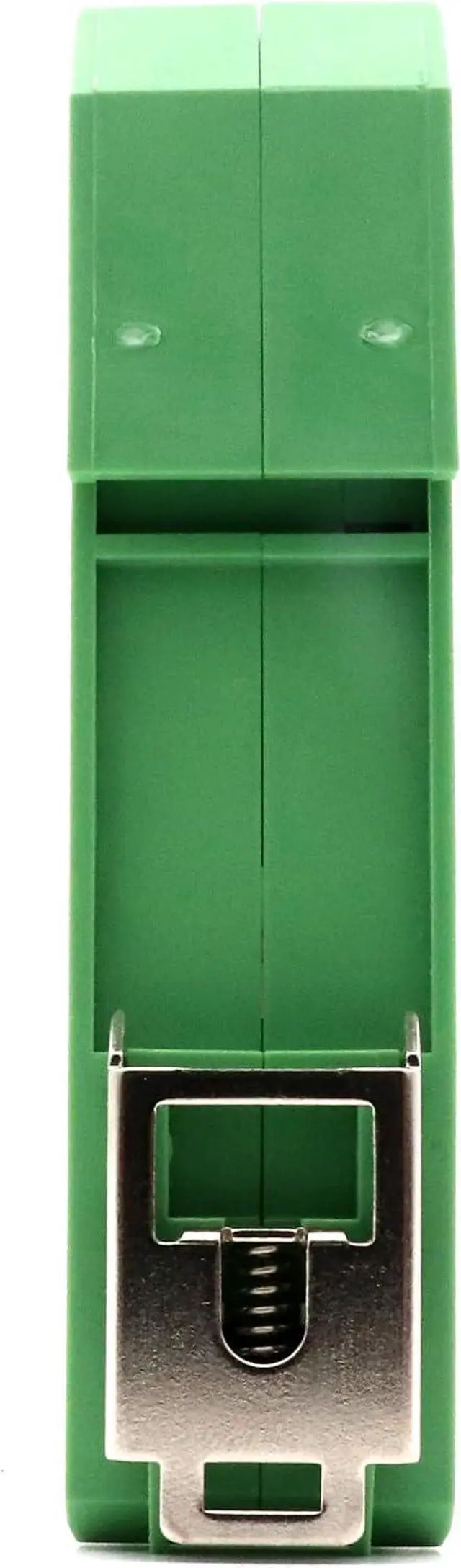

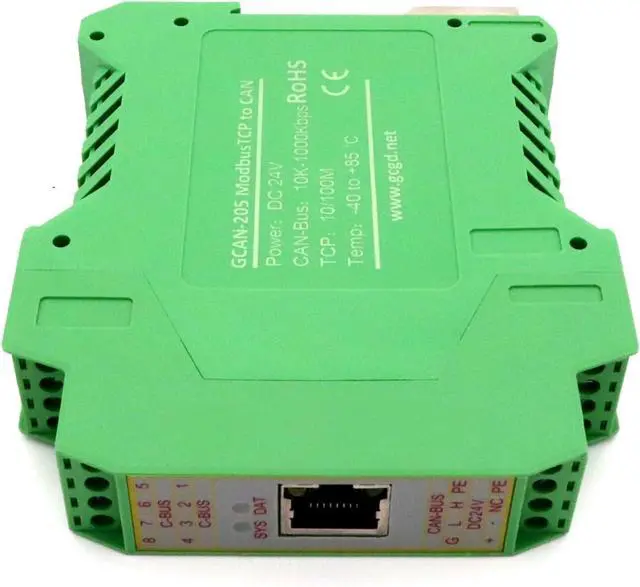

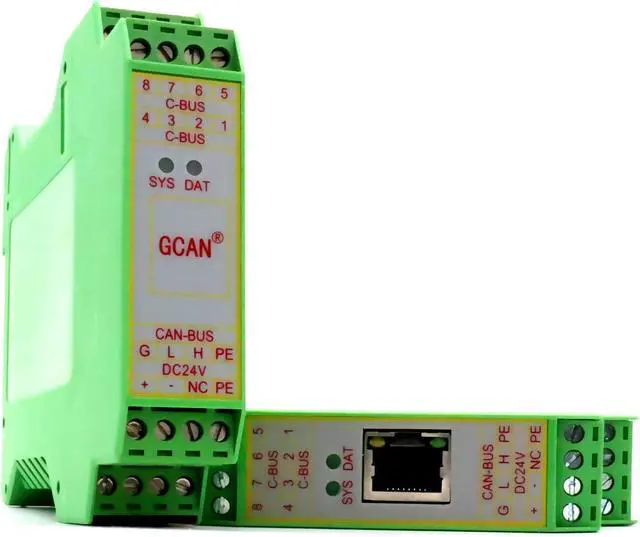

SINOPED GCAN-205 Can to Modbus TCP Slave Converter Canbus Date Reader Gateway Conversion Module Support J1939 Protocal (GCAN-205)
- GCAN-204 converter has one CAN-Bus interface, one serial interface. The GCAN-204 integrates the Modbus RTU protocol. With the GCAN-204 , user can use the serial bus connect to other equipment (with Modbus RTU protocol) access the CAN-Bus communication interface. GCAN-204 has integrated isolation protection module. Using DIN railway fixed, it can be easier to integrate into the control cabinet. The GCAN-205 is a CAN-Bus and ethernet converter.
- High-speed 32-bit processor Embedded hardware watchdog timer Power supply voltage: DC 24V Maximum current: 40mA Electrostatic discharge immunity level: contact discharge
- 2KV, air discharge
- 15KV Surge immunity level:
- 1KV Operating temperature range: -40 ~ +85 Operating humidity range: 5% to 95% RH Electrical fast transient burst immunity level:
- 1KV
- Integrated 1 CAN-Bus interface with terminal CAN-Bus signals : CAN_H, CAN_L, CAN_GND CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS11898 standards
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
GCAN-204 converter has one CAN-Bus interface, one serial interface. The GCAN-204 integrates the Modbus RTU protocol. With the GCAN-204 , user can use the serial bus connect to other equipment (with Modbus RTU protocol) access the CAN-Bus communication interface. GCAN-204 has integrated isolation protection module. Using DIN railway fixed, it can be easier to integrate into the control cabinet. The GCAN-205 is a CAN-Bus and ethernet converter.
High-speed 32-bit processor Embedded hardware watchdog timer Power supply voltage: DC 24V Maximum current: 40mA Electrostatic discharge immunity level: contact discharge
2KV, air discharge
15KV Surge immunity level:
1KV Operating temperature range: -40 ~ +85 Operating humidity range: 5% to 95% RH Electrical fast transient burst immunity level:
1KV
Integrated 1 CAN-Bus interface with terminal CAN-Bus signals : CAN_H, CAN_L, CAN_GND CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS11898 standards CAN-Bus baud rates range from 5Kbps to 1Mbps CAN-Bus isolation converter insulation voltage: DC 1500V Ethernet feature
High-speed 32-bit processor Embedded hardware watchdog timer Power supply voltage: DC 24V Maximum current: 40mA Electrostatic discharge immunity level: contact discharge
2KV, air discharge
15KV Surge immunity level:
1KV Operating temperature range: -40 ~ +85 Operating humidity range: 5% to 95% RH Electrical fast transient burst immunity level:
1KV
Integrated 1 CAN-Bus interface with terminal CAN-Bus signals : CAN_H, CAN_L, CAN_GND CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS11898 standards CAN-Bus baud rates range from 5Kbps to 1Mbps CAN-Bus isolation converter insulation voltage: DC 1500V Ethernet feature
