Industrial Serial Server RS485 to RJ45 Ethernet TCP/IP to Serial Support Rail-Mount with POE Function Electrical Isolation

Overview

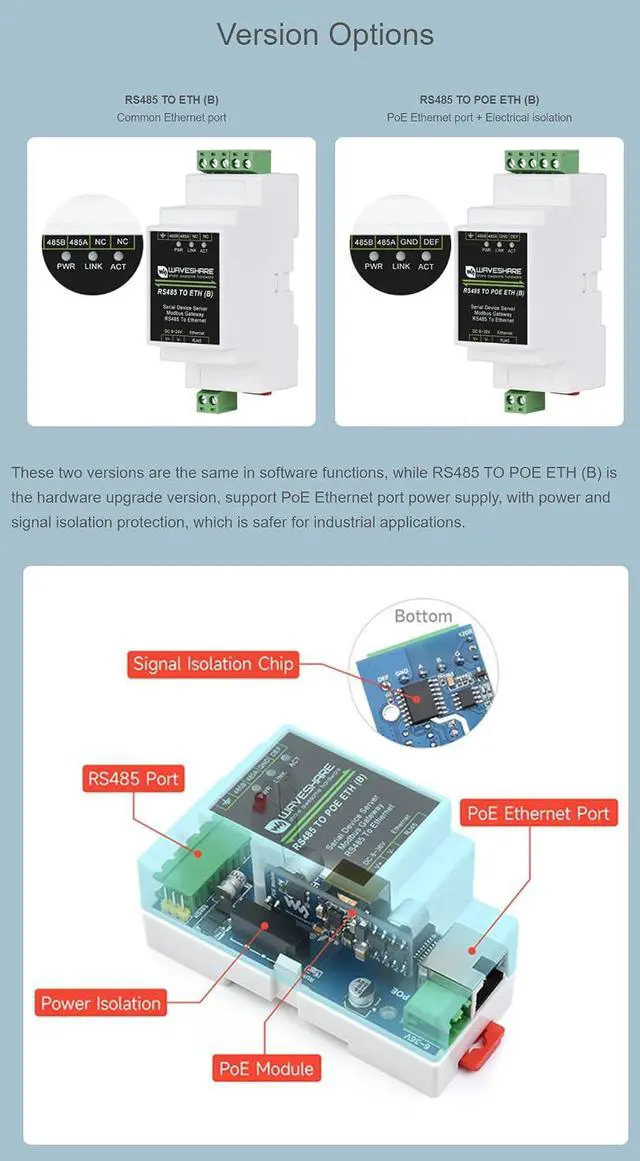

There are two versions of this product, the two are the same in software functions, and the differences in hardware are as follows:

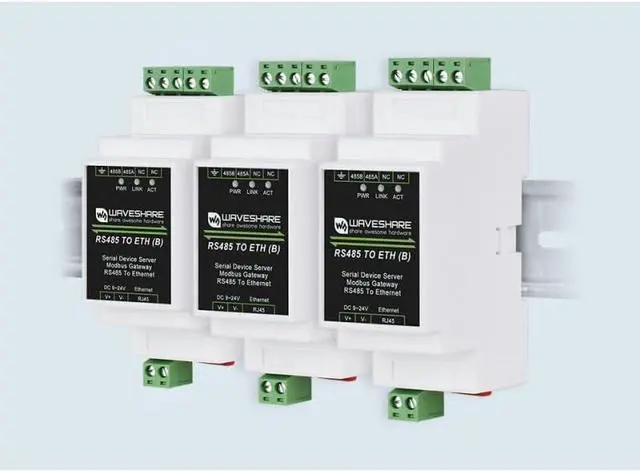

RS485 TO ETH (B): Common Ethernet connector, 9~24V wide voltage power supply via terminal block.
RS485 TO POE ETH (B): Hardware upgrade version, can support PoE network port power supply, can also support 6~36V wide voltage via terminal block, with electrical isolation.
Introduction
This is an RS485 device data collector/IoT gateway specially designed for the industrial environment, which combines serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and other functions. It has an RS485 interface and an Ethernet interface. It adopts the rail-type installation, which is compact and easy to install. It is very suitable for the collection of various RS485 instruments and sensors in the industrial field, including the collection of the local network or the autonomous collection of uploading to the cloud server.

Parameters

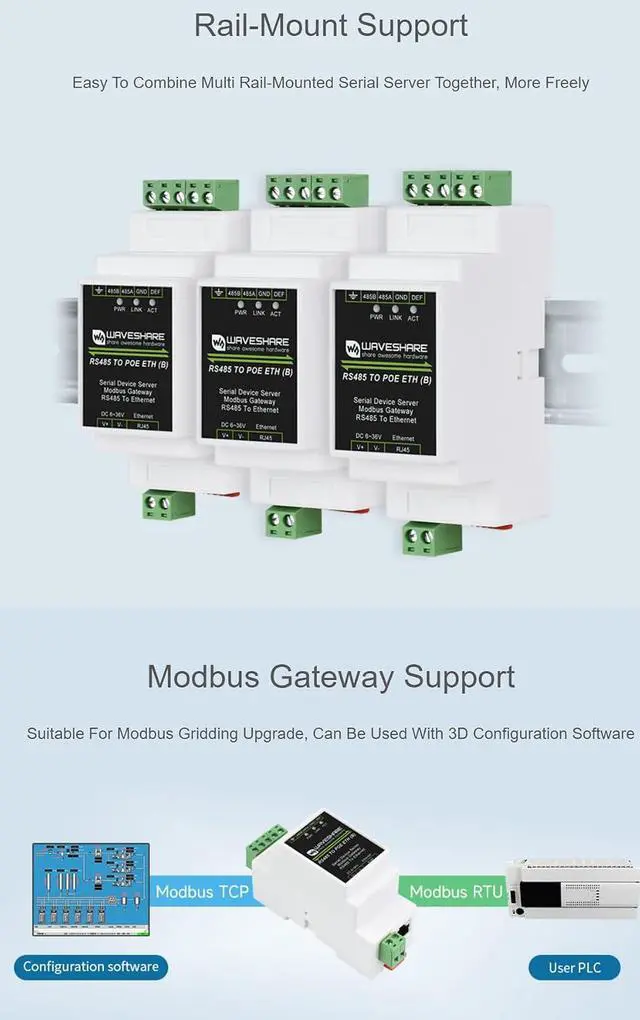

Product Types:Serial server, Modbus gateway, MQTT gateway

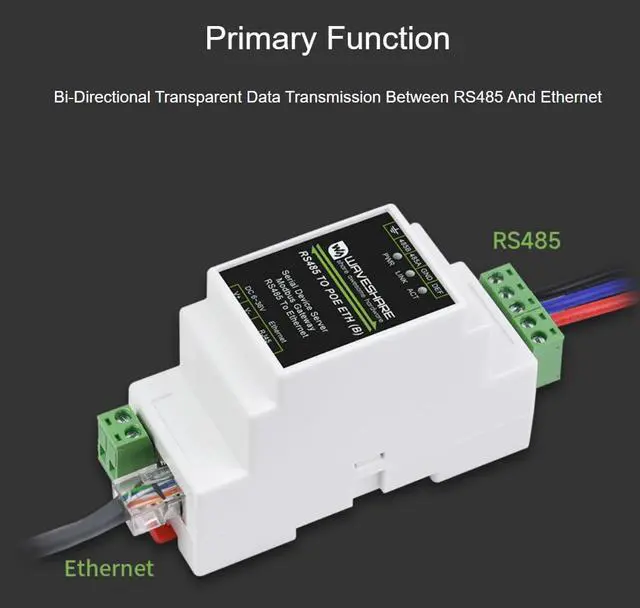

Basic Functions:Realize RS485 to Ethernet bidirectional transparent transmission
Communication Interface:RS485 × 1, Network Port × 1
Baud Rate:300 ~ 115200 bps
Parity Bit:None, odd parity, even parity, mark, space
Data Bit:5 ~ 9 bit
Flow Control:No Flow Control
Protocol:Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Config Way:Host computer configuration, WEB browser, device management function library
Communication Way:TCP/IP direct communication, virtual serial port mode

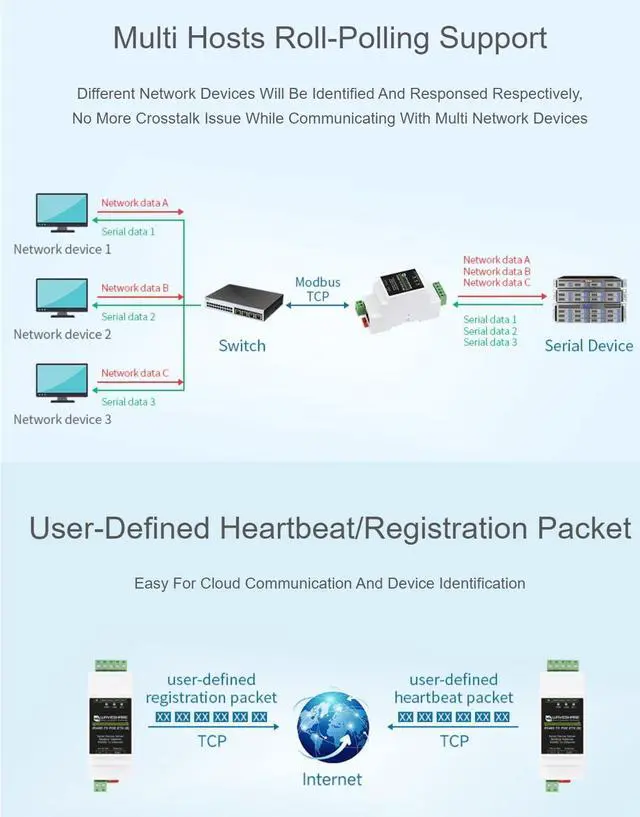

Working Mode:TCP server, TCP client (the TCP server also coexists), UDP, UDP multicast
