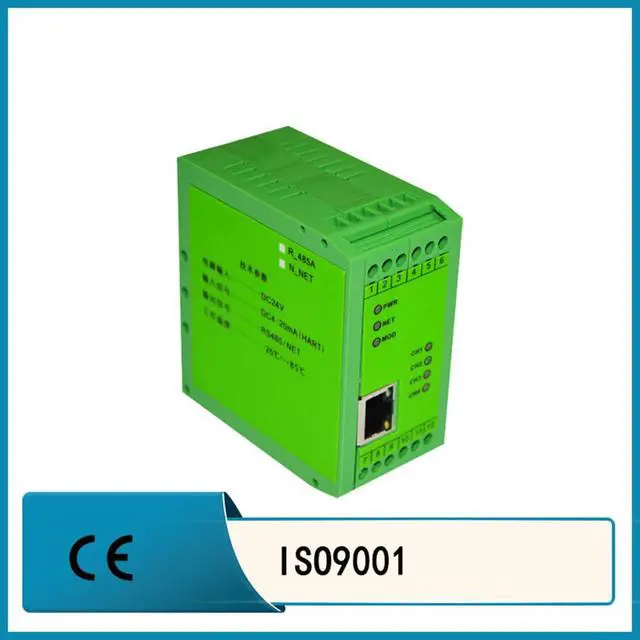

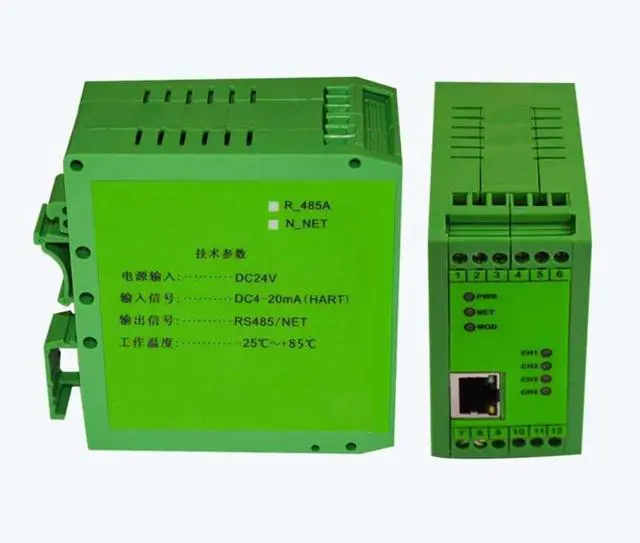

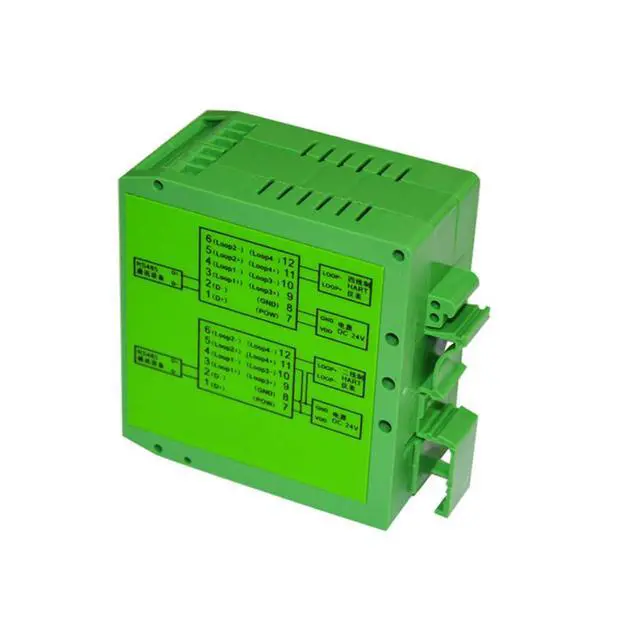

Hart to RS485 Channel Fully Isolated Gateway MODBUS-RTU Protocol Converter Industrial Rail-Mount SM101-W
- SM101-W-4 After multiple HART protocol intelligent instruments are collected by the DCS system or PLC, Without affecting the original use, Using SM101-W intelligent converter to directly extract the digital signal of the HART protocol, Convert to RS485 interface MODBUS-RTU protocol and send it to the collector system.
- Product Features: stable performance, long service life.

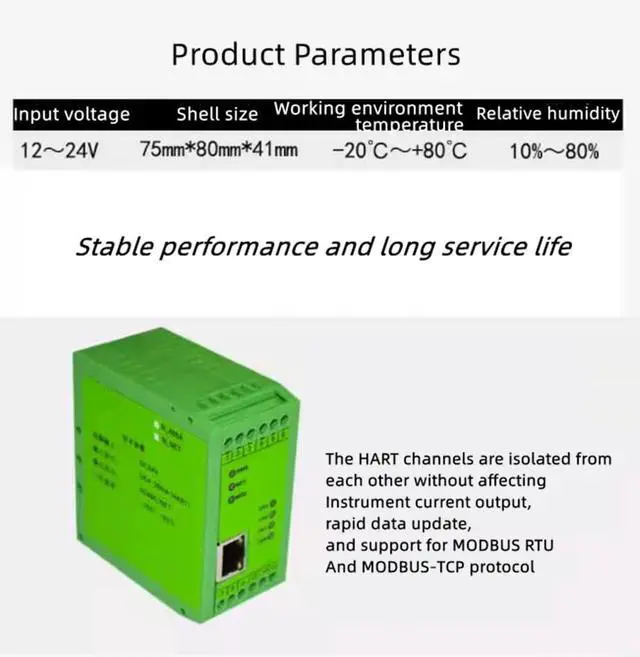

- Product Parameters: Input voltage of 12-24V, shell size of 75x80x41mm, working environment temperature of -20 ° C to +80 ° C, relative humidity of 10% to 80%.
- Channel Isolation: Hart channels are isolated from each other, which does not affect the instrument current output, and data updates quickly while supporting the MODBUS-RTU protocol.
- Space Saving: Small size, it saves installation space by measuring 75mm in length, 80mm in width, and 41mm in height.
- Easy Installation: Using industrial universal module housing, it can be installed on standard tracks or fixed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SM101-W-4 After multiple HART protocol intelligent instruments are collected by the DCS system or PLC, Without affecting the original use, Using SM101-W intelligent converter to directly extract the digital signal of the HART protocol, Convert to RS485 interface MODBUS-RTU protocol and send it to the collector system.
Product Features: stable performance, long service life.
Product Parameters: Input voltage of 12-24V, shell size of 75x80x41mm, working environment temperature of -20 ° C to +80 ° C, relative humidity of 10% to 80%.
Channel Isolation: Hart channels are isolated from each other, which does not affect the instrument current output, and data updates quickly while supporting the MODBUS-RTU protocol.
Space Saving: Small size, it saves installation space by measuring 75mm in length, 80mm in width, and 41mm in height.
Easy Installation: Using industrial universal module housing, it can be installed on standard tracks or fixed.
Product Features: stable performance, long service life.
Product Parameters: Input voltage of 12-24V, shell size of 75x80x41mm, working environment temperature of -20 ° C to +80 ° C, relative humidity of 10% to 80%.
Channel Isolation: Hart channels are isolated from each other, which does not affect the instrument current output, and data updates quickly while supporting the MODBUS-RTU protocol.
Space Saving: Small size, it saves installation space by measuring 75mm in length, 80mm in width, and 41mm in height.
Easy Installation: Using industrial universal module housing, it can be installed on standard tracks or fixed.
