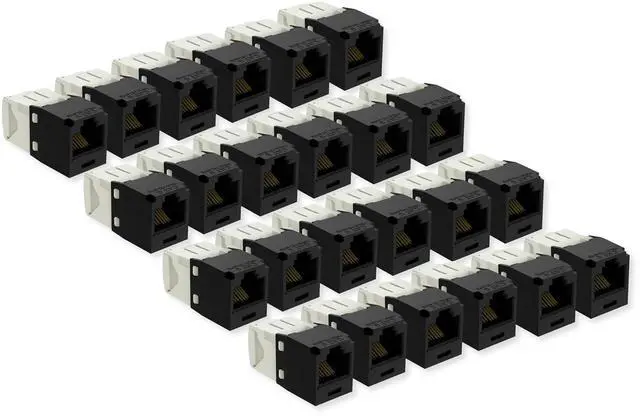

CJ688TGBL Pack of 24 Mini-Com TX6 Plus Cat6 UTP RJ45 TG Toolless Jack Modules, Black, T568A/T568B, PoE+/PoE++ (802.3bt Type 3/4), UL 2043 Plenum Rated

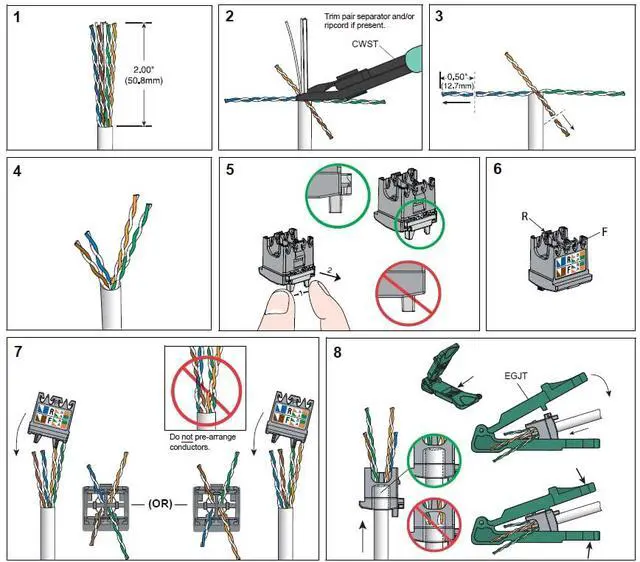

- TOOLLESS TG TERMINATION: TG style termination eliminates the need for a termination tool; designed to terminate 4-pair 22-26 AWG twisted pair cable for fast, consistent installs
- TX6 PLUS CAT6 PERFORMANCE: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements at 1 to 250 MHz; supports 10GBASE-T transmission up to 100 meters in 4-connector channel configurations
- POE++ READY, HIGH DURABILITY: Rated for 2500 cycles; supports PoE, PoE+, and PoE++ including IEEE 802.3bt Type 3 and Type 4 (4PPoE) for high-power network devices
- COMPLIANCE FOR COMMERCIAL SPACES: UL 2043 suitable for air-handling spaces (plenum); UL 1863; UL 94V-0 flammability rated; RoHS compliant; meets ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001.
- PRO-GRADE BUILD, FITS MINI-COM SYSTEMS: Polycarbonate body; plated phosphor bronze contacts with 50 microinch gold plating; accepts 0.035 to 0.062 Inch insulated conductors; maximum cable jacket diameter 0.300 Inches; compatible with Mini-Com modular patch pa
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
TOOLLESS TG TERMINATION: TG style termination eliminates the need for a termination tool; designed to terminate 4-pair 22-26 AWG twisted pair cable for fast, consistent installs
TX6 PLUS CAT6 PERFORMANCE: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements at 1 to 250 MHz; supports 10GBASE-T transmission up to 100 meters in 4-connector channel configurations
POE++ READY, HIGH DURABILITY: Rated for 2500 cycles; supports PoE, PoE+, and PoE++ including IEEE 802.3bt Type 3 and Type 4 (4PPoE) for high-power network devices
COMPLIANCE FOR COMMERCIAL SPACES: UL 2043 suitable for air-handling spaces (plenum); UL 1863; UL 94V-0 flammability rated; RoHS compliant; meets ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001.
PRO-GRADE BUILD, FITS MINI-COM SYSTEMS: Polycarbonate body; plated phosphor bronze contacts with 50 microinch gold plating; accepts 0.035 to 0.062 Inch insulated conductors; maximum cable jacket diameter 0.300 Inches; compatible with Mini-Com modular patch panels and faceplates; individually serialized for traceability; compatible with angled wire caps for tight-space routing.
TX6 PLUS CAT6 PERFORMANCE: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E requirements at 1 to 250 MHz; supports 10GBASE-T transmission up to 100 meters in 4-connector channel configurations
POE++ READY, HIGH DURABILITY: Rated for 2500 cycles; supports PoE, PoE+, and PoE++ including IEEE 802.3bt Type 3 and Type 4 (4PPoE) for high-power network devices
COMPLIANCE FOR COMMERCIAL SPACES: UL 2043 suitable for air-handling spaces (plenum); UL 1863; UL 94V-0 flammability rated; RoHS compliant; meets ANSI/TIA-1096-A, IEC 60603-7, IEC 60512-99-001.
PRO-GRADE BUILD, FITS MINI-COM SYSTEMS: Polycarbonate body; plated phosphor bronze contacts with 50 microinch gold plating; accepts 0.035 to 0.062 Inch insulated conductors; maximum cable jacket diameter 0.300 Inches; compatible with Mini-Com modular patch panels and faceplates; individually serialized for traceability; compatible with angled wire caps for tight-space routing.
