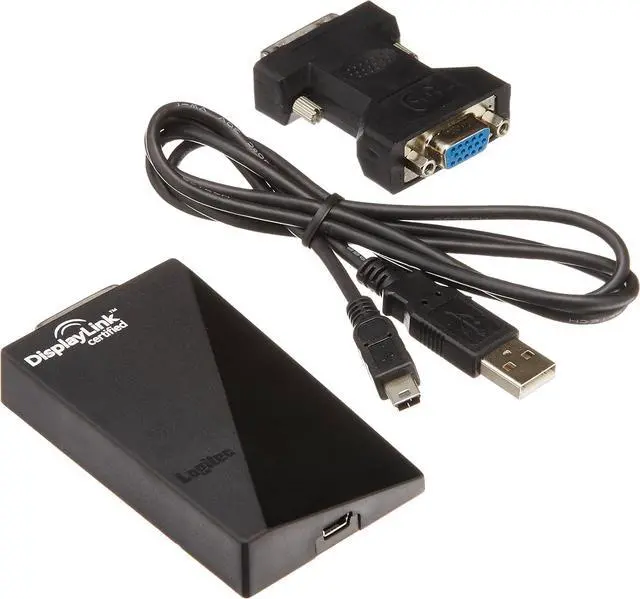

Logitec LDE-WX015U USB Full HD Display Adapter, Black

[Specifications]
Connectable devices: Display with DVI-I/D interface-face, or display/projector that supports analog RGB input (included adapter - when used)
Supported PCs: Windows PC, Apple Mac (equipped with Intel CPU)
Supported OS (Windows): Windows 11, Windows 1032/64-bit version, Windows 8.132/64-bit version, Windows 732/64-bit version, Windows Vista 32/64-bit version, Windows XPHomeEdition/ProfessionalServicePack2 and later
Compatible OS (mac): MacOSX10.4.11 or later (models with Intel CPU) *BigSur11 and later operating systems should be downloaded from the web
Interface: USB2.0 High-Speed
Resolution: 2048 x 11521920 x 1200 (WUXGA) 1920 x 1080 (FullHD) 1680 x 1050 (WSXGA+) 1600 x 1200 (SUXGA) 1440 x 900 (WXGA+) 1405050 +) 128 0 x 1024 (SXGA) 49.2 x 37.8 (Quad-VGA)
Resolution to be Supposed: 1280 x 768 (WXGA) 1280 x 720 (HDTV720p) 1024 x 768 (XGA) 800 x 600 (SVGA) 640 x 480 (VGA)
Display Color: 16.77 million colors
Connector shape: USB 2.0 (Mini-B) for PC connection, DVI-I for monitor-connection x 1
Installation Direction: Horizontal
Cooling fan: No
Housing Material (Color-): Black
Input Voltage: DC + 5V (Powered by USB port)
Power consumption: 2.5W (maximum rating)
External Dimensions (W x D x H): 2.0 x 3.5 x 0.7 inches (50.7 x 88.6 x 18.5 mm) (excluding protruding part)
Weight: 2.0 oz (55 g) (main unit only)
Warranty period: 1 year
Compliance Standard: VCCIClassB
Accessories: USB 2.0 keeble (for connecting computers, about 3.9 ft (1.0 m), 1 DVI-VGA converter adapter - 1 driver (CD-ROM) x 1 manual x 1

[Description]
This is a type of display adapter that connects to the "USB 2.0 High-Speed pose". You can connect it to a computer with a single Kevl, and easily build a "multi-display" environment. Compatible with Windows Vista "Aero"
Compatible with a wide range of operating systems.
Comes with a "DVI-VGA converter adapter" so it can be used with an analog input display. For digital connections, it is possible to display high quality images with very little signal degradation. Allows for clear viewing even on models without digital output.
You can use two modes: "Multi-Display" and "Mirrored Ring", and you can switch it to suit your needs. (You can turn the task tray to activate the vail. )
The additional display screen can be rotated to 90 degrees. The rotating screen monitor allows you to use the screen vertically and is very convenient for creating documents. (Rotate the task tray by activating the vail. )
Connect this product to a single PC to 6 devices and use it at the same time. You can set a multi-display or mirror ring for each product.
Wide resolution is supposed, so it supports display on a "wide LCD monitor" and can be connected to a "HDTV or "projector" equipped with analog RGB computer input.
"USB bus power-supported", so it can be operated with a power supply provided by a computer. It is also convenient to carry and can be used anywhere.
We recommend checking your environment before purchasing.
