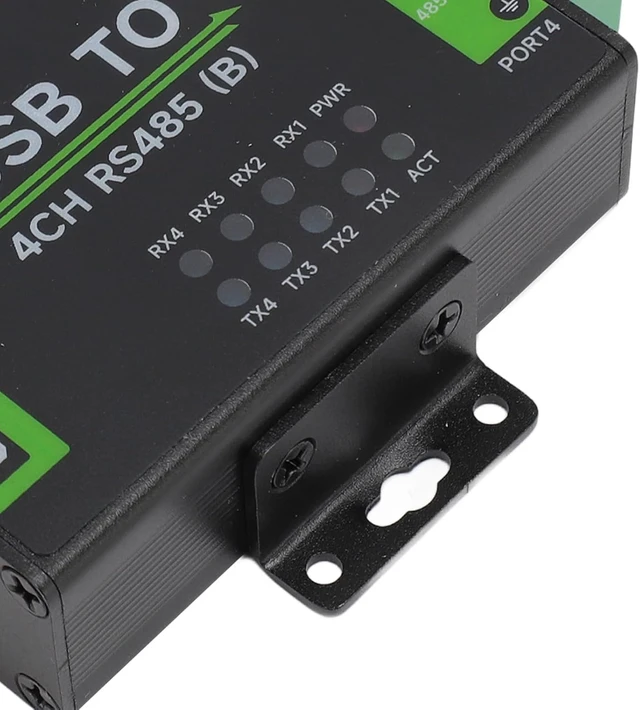

Keenso USB to RS485 Converter Industrial Grade Isolated Adapter for
- [HIGH-SPEED COMMUNICATION] Equipped with the original chip, this USB to RS485 Converter ensures stable and reliable high-speed telecommunication. Its enhanced compatibility allows easy connection and expansion to multiple serial devices, making it ideal for diverse applications in various environments.
- [POWER ISOLATION TECHNOLOGY] The onboard integrated power isolation provides a stable voltage without needing an extra power supply. With superior signal isolation and low power consumption, this converter offers strong anti-interference capabilities, ensuring reliable performance even in challenging conditions.
- [ENHANCED SAFETY FEATURES] Featuring a built-in transient voltage (TVS) to surge and spike voltages, this device protects against and static electricity. The self-recovery fuse along with guard diodes guarantees stable current and prevents overcurrent or overvoltage, enhancing user safety and device longevity.
- [USER-FRIENDLY OPERATION] Designed for convenience, the USB to RS4
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications: Product Type: USB to RS485 Converter Material: Aluminum Alloy Host Interface: USB Device Interface: for RS485 Communication Speed Range: 1200bps ~ 460800bps USB Interface: Operation Level: 5V Interface Type: USB TypeB
Interface protection: 500 mA auto reset fuse, isolated output
RS485 interface:
Interface type: Wired terminals
Direction control: The hardware automatically determines and controls the direction of data transmission.
Interface protection: Protection against , surges and electrostatic discharge of 15 KV / 600 W (120 sway resistanceIntegrated ) Transmission mode: Point to multipoint (up to 32 nodes; repeaters recommended for more than 16 nodes) Indicators: PWR: Power indicator;Lights red when voltage is detected when connecting to USB. ACT: Status indicator;Lights green when the unit is detected. RXD: Reception indicator;Lights up when data is received from the corresponding port. TXD: Transmission indicator;It turns on when data is sent from the corresponding port. Operating environment: Temperature range: -40 ~ 85 Humidity range: 5% ~ 95% RH Supported operating systems: OSUSB to RS485 Converter
1 x Screwdriver
1 x Fixing Clip
1 x USB Cable
Note:
Manual measurement;There may be a small margin of error.
Interface protection: 500 mA auto reset fuse, isolated output
RS485 interface:
Interface type: Wired terminals
Direction control: The hardware automatically determines and controls the direction of data transmission.
Interface protection: Protection against , surges and electrostatic discharge of 15 KV / 600 W (120 sway resistanceIntegrated ) Transmission mode: Point to multipoint (up to 32 nodes; repeaters recommended for more than 16 nodes) Indicators: PWR: Power indicator;Lights red when voltage is detected when connecting to USB. ACT: Status indicator;Lights green when the unit is detected. RXD: Reception indicator;Lights up when data is received from the corresponding port. TXD: Transmission indicator;It turns on when data is sent from the corresponding port. Operating environment: Temperature range: -40 ~ 85 Humidity range: 5% ~ 95% RH Supported operating systems: OSUSB to RS485 Converter
1 x Screwdriver
1 x Fixing Clip
1 x USB Cable
Note:
Manual measurement;There may be a small margin of error.
