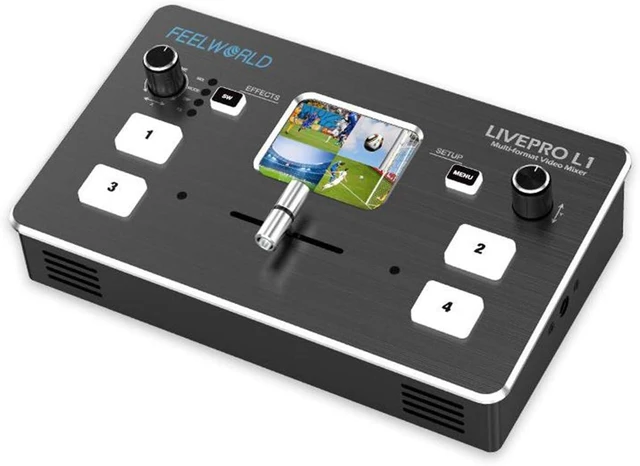

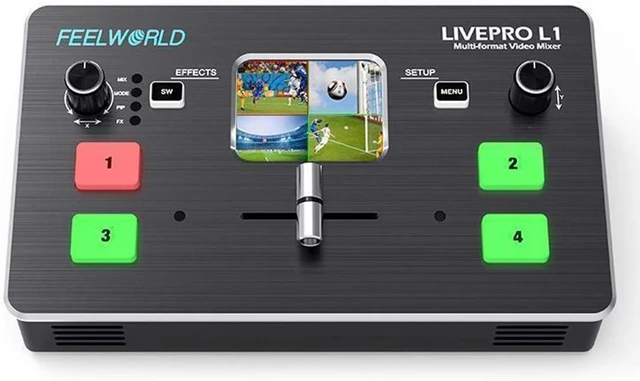

FEELWORLD LIVEPRO L1 Multi-format Video Mixer 4 x HDMI inputs multi camera production real time live streaming

Model: Feelworld-LIVEPRO L1
Screen Size: 2.0" TFT Display
Backlight: LED
Input: 4 X HDMI HDMI
Output:1 X HDMI HDMI
1×USB TypeA USB 3.0
Audio In : 1×3.5mm Stereo Jack, Audio Out: 1×3.5mm Stereo Jack
Input Solution:HDMI
SMPTE 720p@50/60 |1080i@50 | 1080p@23/24/30/50/60)
VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60| 1440×900@60| 1600×1200@60 | 1680×1050@60 |1920x1080@50i| 1920×1080@60 |1920x1080@60i|1920×1200@60
Output Solution:HDMI SMPTE 720p@60 |1080p@60
VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 |1360×768@60 | 1366×768@60| 1440×900@60| 1680×1050@60 | 1920×1080@60
Input Voltage: DC 12V / 1.5A Max Power: 18W
Working Temperature: -3050

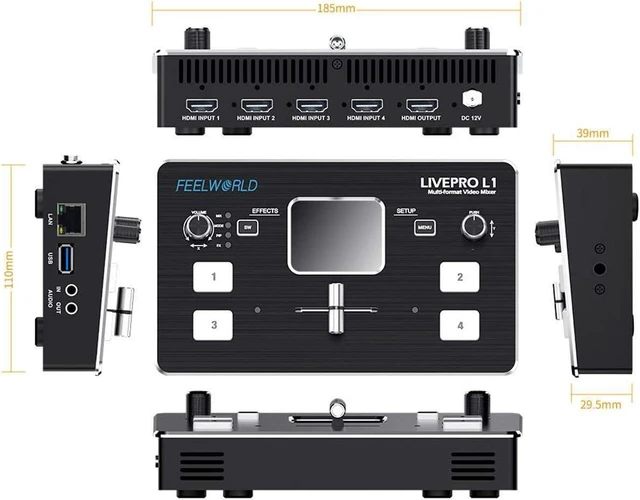

Humidity: 10%~85% Unit Size 185(L) x 110(W) x 39(H)mm Unit Weight: 648g
* 2TFT display on board to live preview 4 inputs * Auto cut and manual switch (T-Bar) * USB capture video complying with UVC for live streaming * Audio offers embedded or external source to select * Support switch between 6-picture PVW and PGM to HDMI out * Support PIP * 14 transition effects on T-Bar * Licensed features including DSK, PTZ control etc. * Control by PC or Smart phone (via APP)

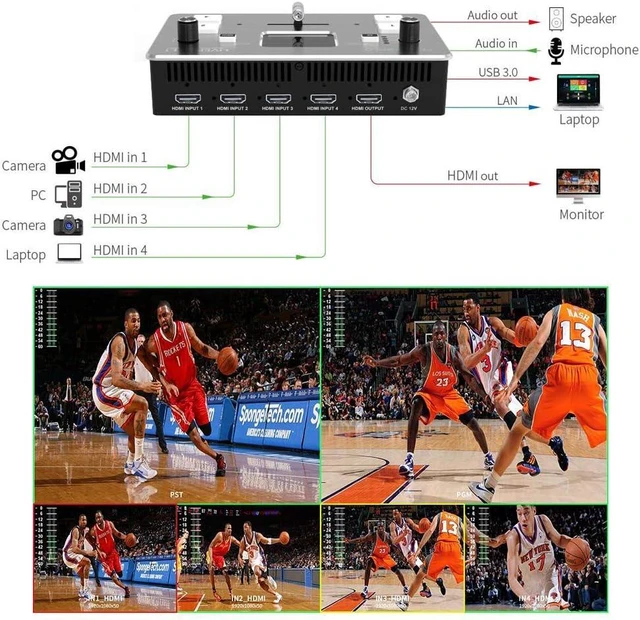

Feelworld LIVEPRO L1 with 4 CH HDMI inputs and 1 HDMI output, all of them support 1080p. For live streaming, there is a USB3.0 interface . And plus, the LAN port for controlling and upgrading; for audio, it has 2 interfaces, one for input, and the other one for output. All of these make it easy to create professional multi camera productions . It is able stream any one from the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS . Simply connect Feelworld LIVEPRO L1 and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.

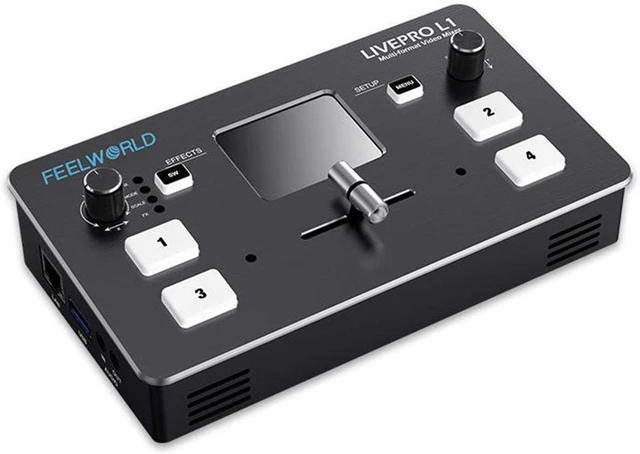

The LIVEPRO L1 is a mini switcher, that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows , the LIVEPRO L1 has a screw tap for standard video mounts and conveniently attached onto a tripod to stay out of the way. It is light weight design makes it ideal for mobile video applications too.
For normal people, they need smaller and simpler product to deal with the live applications. The LIVEPRO L1 can be done this , which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. with these, live streaming and multi signal control will be simpler and easier done by single person.

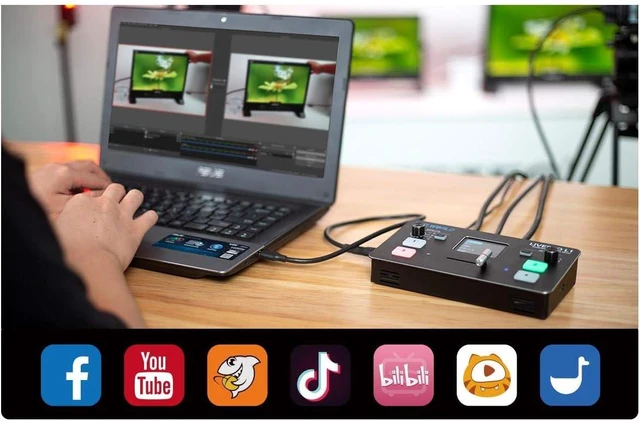

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via Youtube at the same time. The USB 3.0 output of LIVEPRO L1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as Youtube, Facebook, Tik Tok, Douyu TV and many more!
The T-Bar of LIVEPRO L1 support 14 transition effects and signal switching. Under T-Bar mode, pushing green button, it will flash and push T-Bar to the end (left or right), the source will be switched with selected transition effect. After switching , green turns to red. It is very suitable for video special effects switching of small outdoor scenes to meet the needs of video switching such as radio and television, outdoor sports events, school courseware production, etc. Note: When T-Bar is not in the end position, no source can be selected.
The LIVEPRO L1 not only lets
