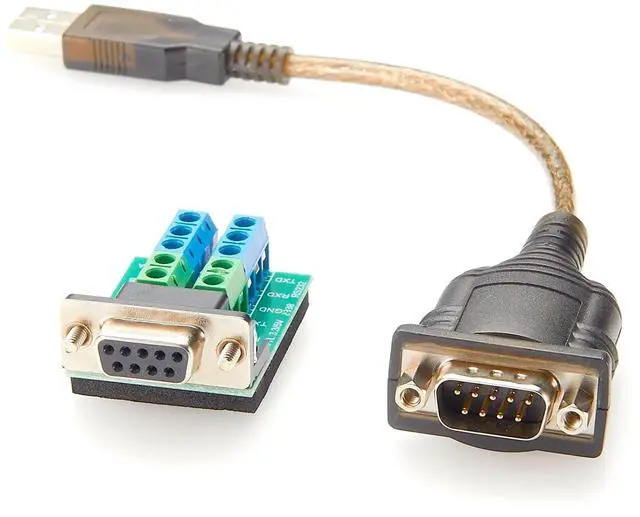

Industrial 3 In 1 USB 2.0 to DB9 RS232 RS485 TTL 3.3V 5V Serial Converter Cable with FTDI FT231XS Chip D-Sub 9Pin to Terminal Block Adapter COM Port for Windows, Linux, Android, MacOS(1M/3.28FT)

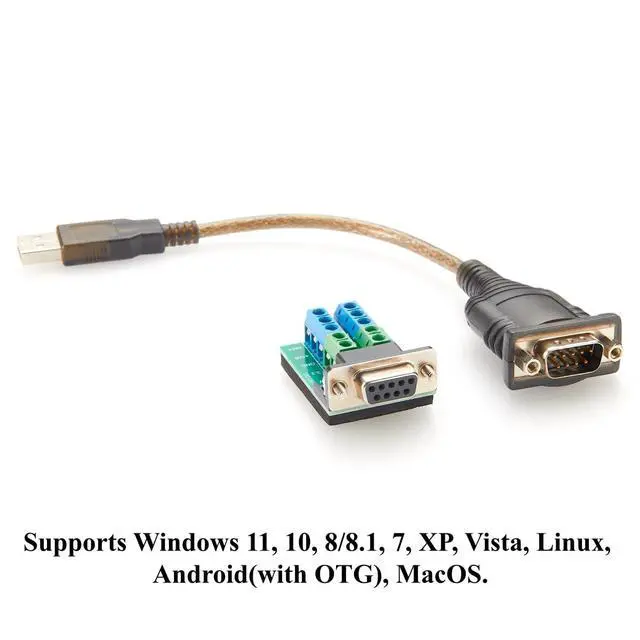

- 3-in-1 Serial CommunicationUSB 2.0 A to RS232 RS485 TTL Serial Converter Cable, Easily switch between RS232, RS485, and TTL (3.3V/5V) modes, No external power supply, plug and play. for Industrial Automation, PLCs, and Embedded Systems.; Original FTDI FT231XS ChipsetIndustrial USB to DB9 Serial Adapter Cable, Features the Original FTDI FT231XS Chipset. Supports Windows 11, 10, 8/8.1, 7, XP, Vista, Linux, Android(with OTG), MacOS.(if cant use it pls contact us for installation driver or download online).; Screw Terminal BlockDB9 to 2 Row 5Pin Screw Terminal Block, With clearly labeled. RS232 (TXD, RXD), RS485 (485A, 485B), TTL (RX, TX, 3.3V, 5V), GND.; 3.3V and 5V TTL InterfacesThe USB to TTL Serial converter provides 3.3V or 5V output voltage, ensuring compatibility with embedded devices, providing flexibility for a wide range of applications.; ApplicationIndustrial 3 In 1 DB9 to RS232 RS485 TTL Serial Port Converter, for Industrial automation equipment communication (e.g., PLC and sensor), embedded systems, sensor networks, building control systems, and data acquisition, supporting long-distance communication and multi-device connectivity.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification: Product

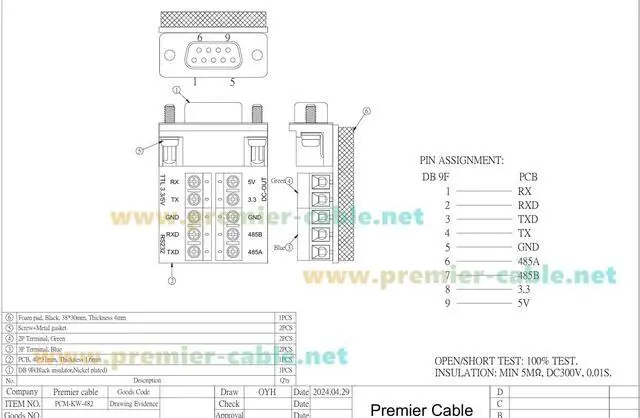

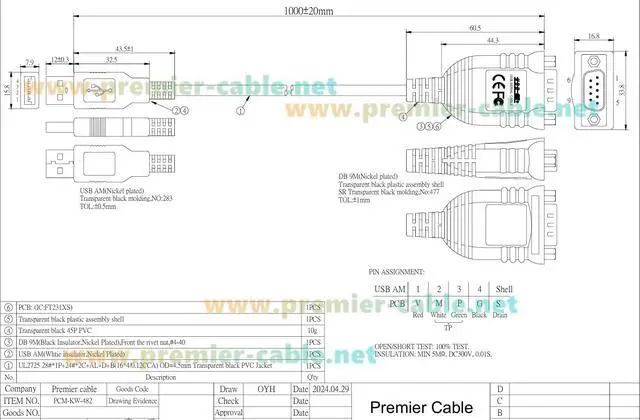

Name: 3-In-1 USB to RS232 RS485 TTL Serial Converter Cable DWG No.: PCM-KW-482

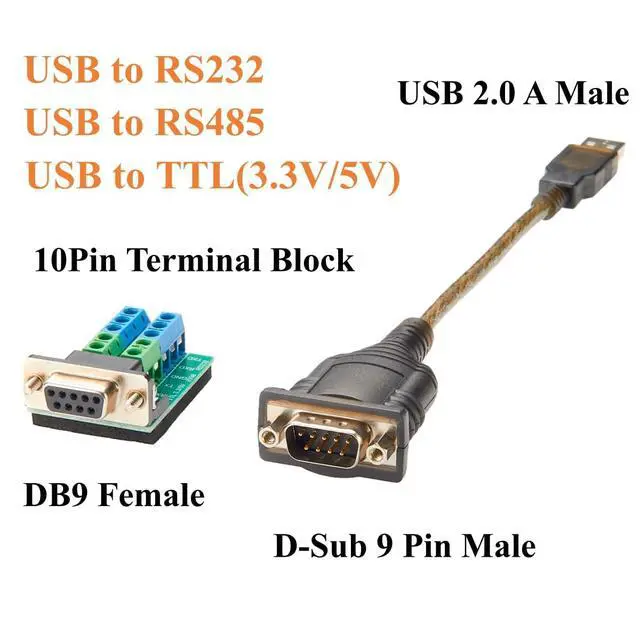

Connector A: USB Type-A Male
Connector B: D-Sub 9 Pin DB9 Male
Connector C: DB9 Female to
Terminal Block OD: 4.5 mm
Cable Length: 1m, Or

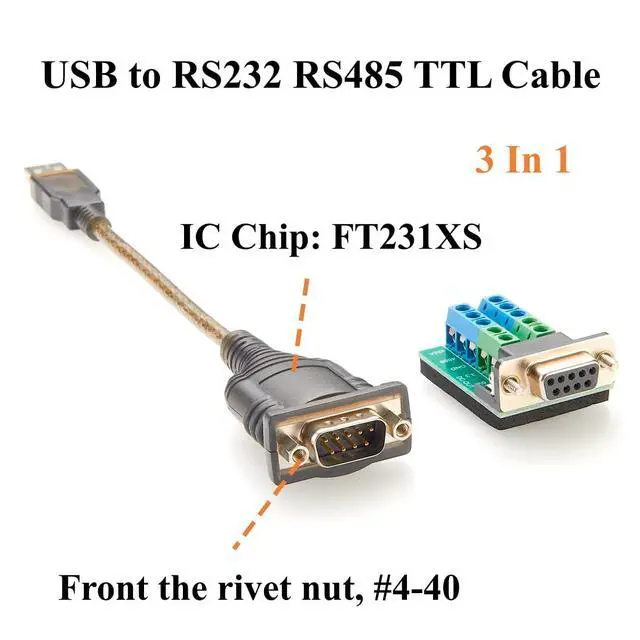

OEM IC Chip: FT231XS
Input Signal: USB Digital Signal

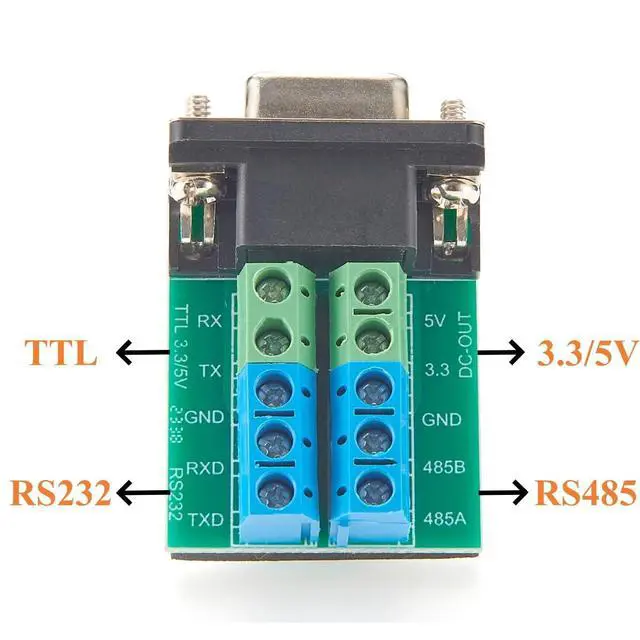

Output Signal: RS232 (TXD, RXD), RS485 (485A, 485B), TTL (RX, TX, 3.3V, 5V), GND
Output Voltage: 3.3V, Or 5V
Material: PVC
Jacket Wire: UL2725 28#*1P+24#*2C+AL+D+B*(16*4/ 0.12CCA )
Name: 3-In-1 USB to RS232 RS485 TTL Serial Converter Cable DWG No.: PCM-KW-482
Connector A: USB Type-A Male
Connector B: D-Sub 9 Pin DB9 Male
Connector C: DB9 Female to
Terminal Block OD: 4.5 mm
Cable Length: 1m, Or
OEM IC Chip: FT231XS
Input Signal: USB Digital Signal
Output Signal: RS232 (TXD, RXD), RS485 (485A, 485B), TTL (RX, TX, 3.3V, 5V), GND
Output Voltage: 3.3V, Or 5V
Material: PVC
Jacket Wire: UL2725 28#*1P+24#*2C+AL+D+B*(16*4/ 0.12CCA )
