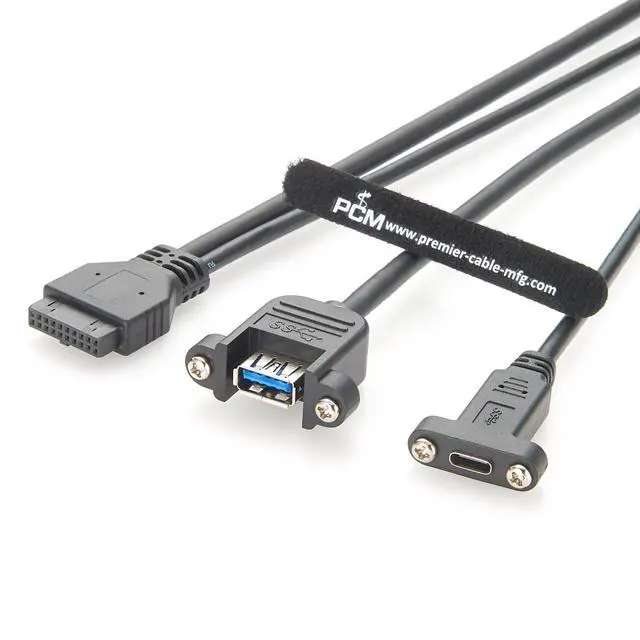

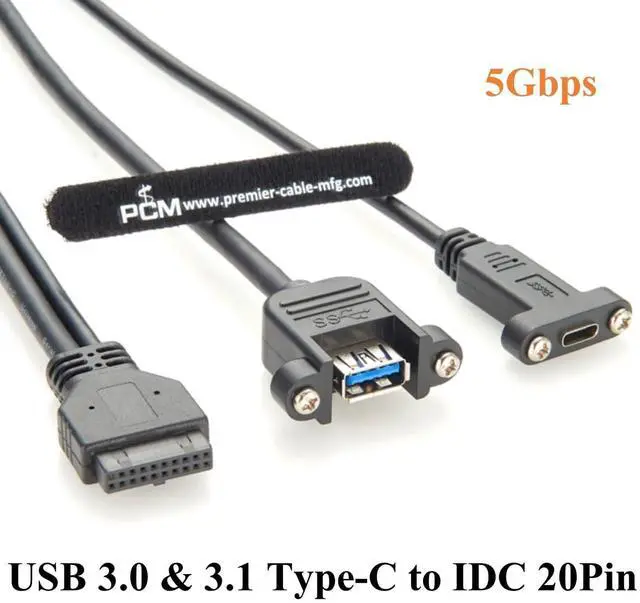

Dual USB 3.0 & 3.1 Type-C Female to Motherboard IDC 20Pin Header Cable Screw Panel Mount USB 3.0 Front Panel to Mainboard Y Splitter for Computer Internal, Tablet, Printer, Scanner (2PCS, 0.45M)
- Dual USB 3.0 A + 3.1 Type-C USB 3.0 Female + USB 3.1 Type-C to Motherboard 20Pin Header Cable.Support maximum data transfer speed 5Gbps, compatible with Windows 10/8/8.1/7/Vista/XP and Linux.; Screw Panel Mount The USB 3.0 A Female and USB 3.1 Gen 2 Female Port, is equipped with M3 thread lock, prevent the connection from loosening, for Control panels, Cabinets, enclosures, or equipment surfaces.; High Quality USB IDC 20 Pin Header to USB A and USB C Female Cable, Built with PVC materials, and Aluminum braided shield to reduce EMI/RFI interference. Offers stable and reliable performance.; Plug and Play USB to Motherboard Internal 20Pin Header Cable, Plug and play design,easy to hook up and install, no need to install drivers.; Application USB 3.0 A & USB 3.1 C Front Panel Header 20Pin Splitter cable,for Computer, Desktop, Laptop, Printer, Scanner, Fax Machine, Camera, Heat Sink, Embedded Boards and other devices.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

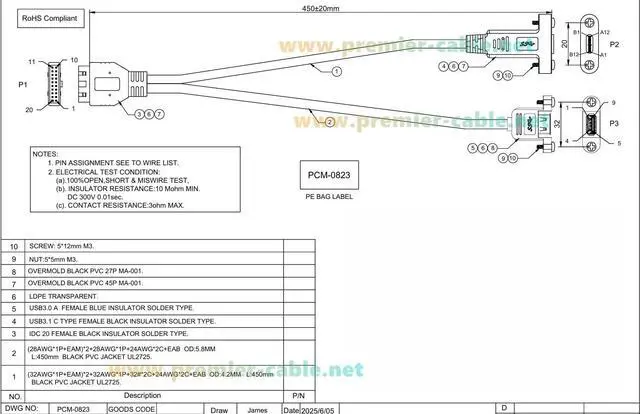

Specification: Connector

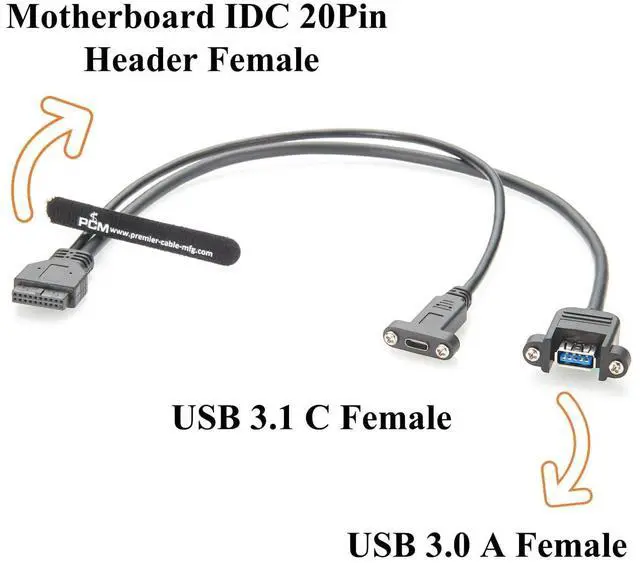

A: USB 3.0 A Female, Panel
Mount Connector B: USB 3.1 C Female, Panel
Mount Connector C: Motherboard IDC 20Pin
Header Female Length: 0.45M USB 3.1
Type-C Wire gauge: 32AWG, OD: 4.2MM USB 3.0
A Wire gauge: 28AWG, OD: 5.8MM
Transmission Speed: 5Gbps

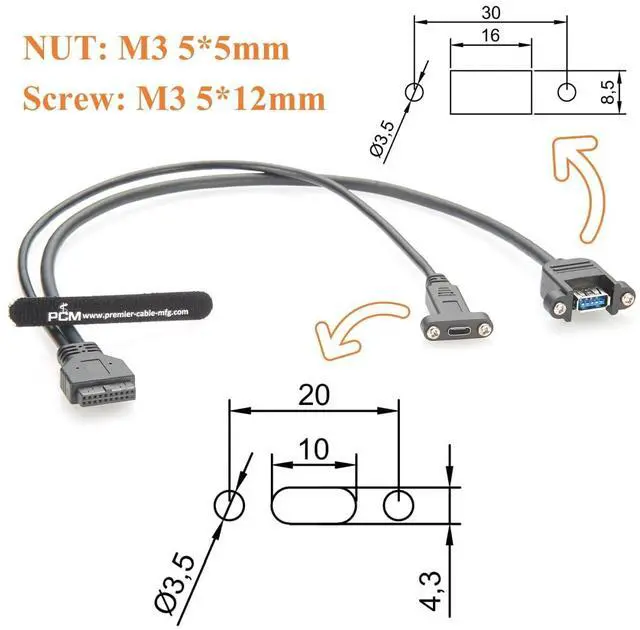

NUT: M3 5*5mm.
Screw: M3 5*12mm.
A: USB 3.0 A Female, Panel
Mount Connector B: USB 3.1 C Female, Panel
Mount Connector C: Motherboard IDC 20Pin
Header Female Length: 0.45M USB 3.1
Type-C Wire gauge: 32AWG, OD: 4.2MM USB 3.0
A Wire gauge: 28AWG, OD: 5.8MM
Transmission Speed: 5Gbps
NUT: M3 5*5mm.
Screw: M3 5*12mm.
