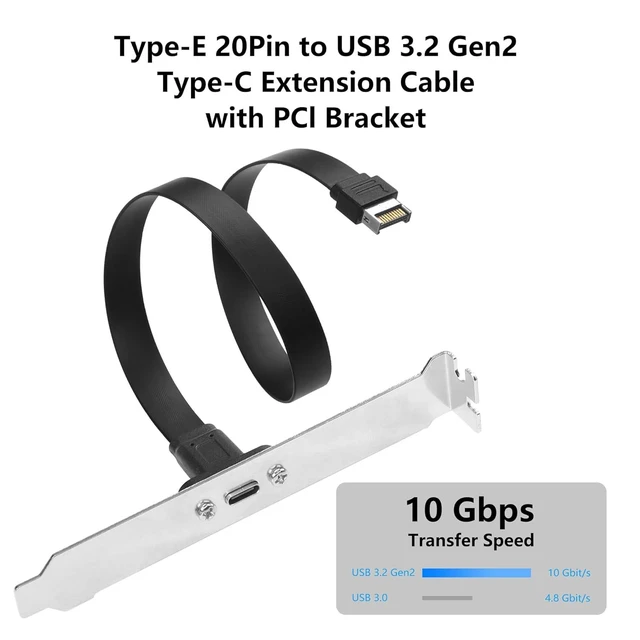

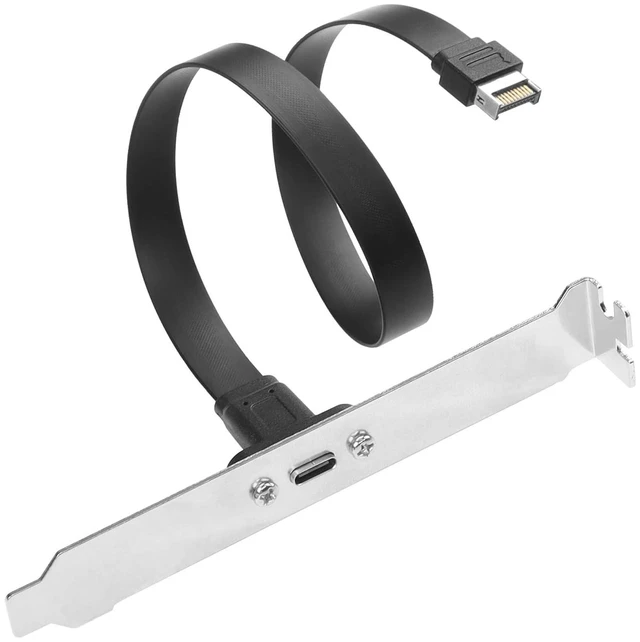

USB 3.1 Type-E 20-Pin Male to USB-C Female Front Panel Extension Cable 10Gbps 100W Motherboard Header Adapter Panel Mount USB-C Port Expansion Cable with Screw and Full-Height Bracket 30cm/11.8inch
- Type-E 20-pin male to USB-C female extension cable designed for front-panel mounting, with a full-height bracket included.
- Supports USB 3.2 Gen 2 data transfer speeds up to 10Gbps and is backward compatible with USB 3.2 Gen 1 5Gbps Type-C devices.
- Supports power delivery functions up to 100W for connected USB-C devices.
- 30cm/11.8-inch cable length provides reach for routing from a motherboard Type-E header to the front of the chassis.

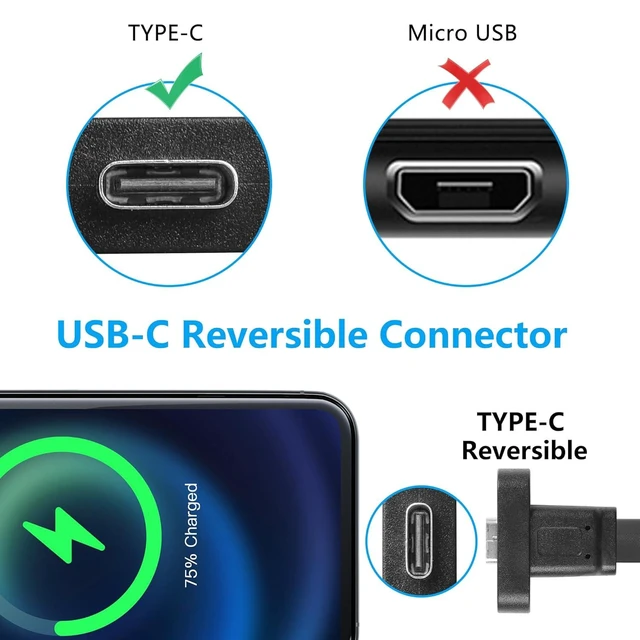

- Reversible USB-C female interface allows either plug orientation without concern about upside-down insertion.
- Requires a motherboard with a USB 3.1 Type-E port for use with the expansion accessory.
- Full-height bracket is intended for standard computer cases and is not suitable for microcomputer cases; panel screw spacing is 20mm.
- Ultra-thin flat TPE cable is flexible and can be bent and folded 180 degrees thousands of times without damage.
- Features 16-pin USB 3.1 wiring, four high-speed signal cables, silver-plated conductors, and double shielding for stable signal transmission.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:

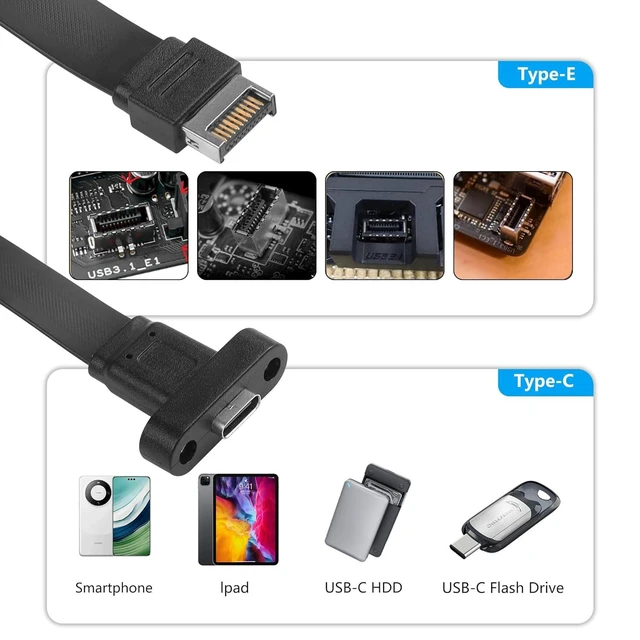

USB 3.1 front panel header Type-C extension cable designed to extend a USB-C female port to the front panel through a Type-E 20Pin male connection. Includes a panel-mount USB-C port with a full-height bracket for connecting external USB-C peripherals.
Core Selling Points:

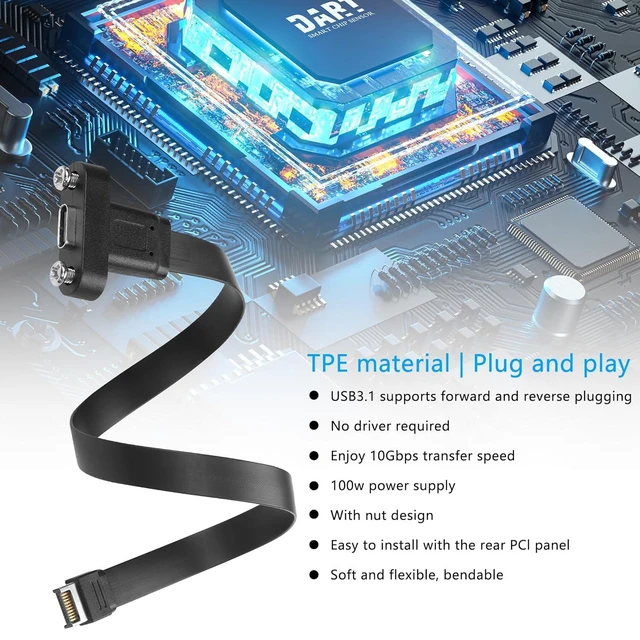

Supports data transfer speeds up to 10Gbps and maximum 100W power supply. The reversible USB-C connector simplifies insertion. Ultra-thin flat TPE cable can be bent and folded 180 degrees thousands of times. Silver-plated conductors and double shielding help provide stable signal transmission. Plug and play operation requires no driver.
Technical Specifications:

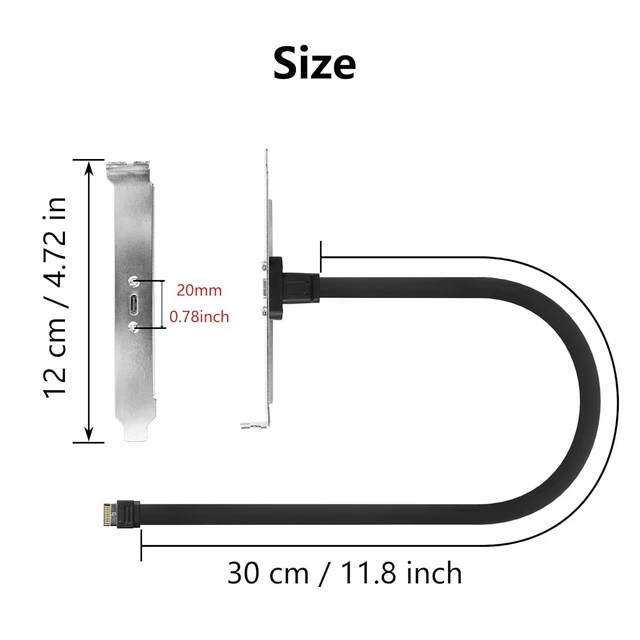

Connector 1: USB-C female with PCIE bracket. Connector 2: USB 3.1 front panel Type-E header, 20Pin male. Cable length: 30cm/11.8 inch. Full-height bracket. Panel screw spacing: 20mm. Compliant with USB 3.2 Gen 2 specification; compatible with USB 3.2 Gen 1 standard. Data transfer speed: up to 10Gbps. Maximum power supply: 100W. Cable material: TPE. Cable construction: 16-pin USB 3.1 cable and 4 high-speed signal cables.
Package Contents:
USB 3.1 Front Panel Header Type-C Extension Cable with Panel Mount Screw.
Before Purchase:

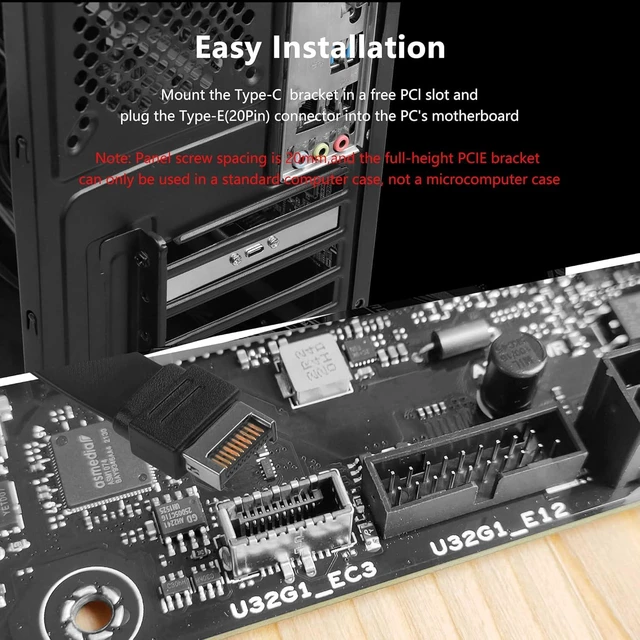

Ensure the motherboard has a USB 3.1 Type-E port for normal use. The full-height PCIE bracket is intended for a standard computer case and cannot be used in a microcomputer case.
