DisplayPort (DP) is a digital display interface developed by a consortium of PC and chip manufacturers. The interface is primarily used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.
SatelliteSale offers high-quality DisplayPort cables, which have become bestsellers thanks to the pure copper conductors, gold-plated connectors, and EMI / RFI shielding. DisplayPort is based on a micro-packet data transfer protocol that allows future functionality to be added.

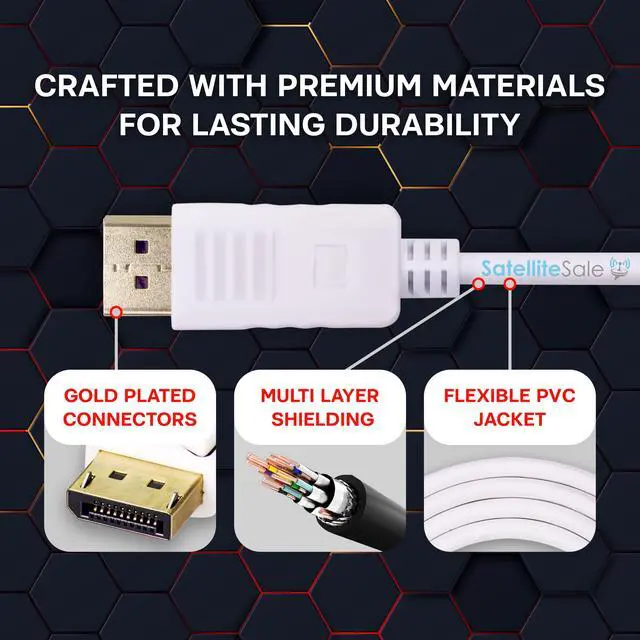

Designed with tinned copper and triple-layer shielding, the DP Cable is enough to transfer high-quality and stable video and audio signals, no worry about visual and audio glitches, artifacts, and audio/video synchronization problems. The aluminum shell, PVC braided cover and gold-plated connectors all ensure the superior durability under the heavy usage and multiple plugging and unplugging.
- Our DisplayPort cables allow a maximum bandwidth of 10.8 Gbit/s (8.64 Gbit/s data rate) over a standard 4-lane main link
- Transmission modes of main link: RBR (1.62 Gbit/s per lane) and HBR (2.70 Gbit/s per lane)
- Number of lanes - 4
- Color format support: RGB, Y'CBCR 4:4:4, Y'CBCR 4:2:2
- Color depth support: up to 16 bpc (48 bit/px)
- Maximum audio channels - 8
Converting context to a large screen from a small screen or placing different content on two screens.
Directly connect a DisplayPort-equipped desktop/laptop to an HDTV, monitor, display, gaming graphics card with a DisplayPort for crystal clear audio and high definition video. This Dispalyport Cable 1.1 is backward compatible with other versions.
| Cable Length: | 3Feet/6 Feet/15 Feet |
|---|---|
| Connector Type: | Display Port |
| Connector Gender: | Male-to-Male |
| Color: | White |
| Maximum Total Bandwidth: | 10.80 Gbit/s |
| Maximum Total Data Rate: | 8.64 Gbit/s |
| Manufacturer: | SatelliteSale |
| Products | ||||||
|---|---|---|---|---|---|---|
| Connectors | DisplayPort to HDMI | Mini DisplayPort to DisplayPort | Mini DisplayPort to HDMI | Mini DisplayPort to Mini DisplayPort | HDMI Male to HDMI | HDMI Male to HDMI |
| Jacket Composition | PVC | PVC | PVC | PVC | Cotton | Nylon |
| Supported Resolution | 4K@60Hz | 2K@60Hz | 4K@60Hz | 2K@60Hz | 8K@60Hz, 4K@120Hz | 8K@60Hz, 4K@120Hz |
| Transmission Speed | 8.64 Gbps | 8.64 Gbps | 8.64 Gbps | 8.64 Gbps | 48 Gbps | 48 Gbps |
| Gold Plated Connectors |
