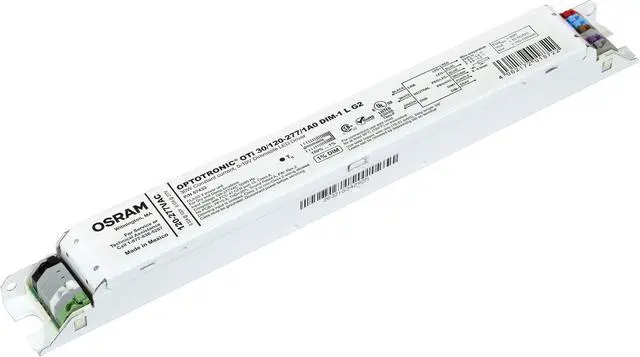

osram 57433 optotronic 30w 120/277v ac 50/60hz constant current dimmable led driver oti 30/120-277/1a0 dim-1 l g2

OPTOTRONIC Linear Programmable LED DriversOSRAM 57433 OPTOTRONIC
OTi30/120-277/1A0 DIM-1 G2 30W Constant Current, 0-10V Dimmable LED
DriverProduct FeaturesProgrammable Features: Output currentDimming levelDim-
to-offSoft StartLED thermal protectionAuxiliary output voltageConstant lumen
outputEnd-of-life indicatorInput Voltage: 120-277V (+/- 10%)Frequency Range:
50-60 Hz (+/- 10%)Max.
Output Power (W): 30WDimming Control: 0-10V
(Isolated) Dimming Range: 1-100%Output Voltage (VDC): 10-55VDC
Output Current
(mA): 150-1050mA, Default 700mAProduct Dimensions (L x W x
H): 11.00" x 1.14"
x 1.00"P roduct Weight: 8.2 oz
Quantity: 1 UL Environmental Rating: Dry & Damp
Product Family FeaturesOEM Programmable with 1mA resolution to perfectly match
LED load and maximize performanceIntegrated OEM programmable features
include: Constant lumen maintenanceEnd of life indicationLED thermal
protectionProgramming doesn't require powering up or connecting the power
supply to AC line voltageSpecification grade dimming down to 1% or 10% on
0-10V dimmersAvailable optional auxiliary output to power 12 V, 20 V, and 24 V
low power applicationsSlim form factorsInput voltage: Universal 120-277 VAC
50/60Hz347 VAC 50/60 HzUL Class 2 output for safe operation, Class P Areas of
ApplicationIndirect/directLinearRecessed troffer
