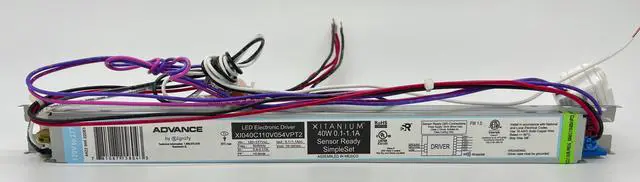

Advance Xitanium LED Electronic Driver XI040C110V054VPT2 Sensor Ready SimpleSet, 40 watt, .1-1.1A, continuous dimming

Advance

Xitanium XI040C110V054VPT2KEY_TAB

• The Xitanium SR LED driver can help reduce complexity and cost of light fixtures used in wireless connected lighting systems. It features a standard digital interface to enable direct connection to any suitably qualified RF sensor on the market. Functionality is integrated into the SR driver that ordinarily would require additional auxiliary components. The result is a simpler, less expensive light fixture that can enable every fixture to become a wireless node.


• Standard digital interface based on proposed ANSI C137.4


• Auxiliary power for sensors through digital con-nection, default "on" for connection to single sensing/RF device


• Energy metering and advanced diagnostics


• Continuous dimming down to 1%


• Low standby power <0.25W with no loading and <0.5W with 0.15W load


• Drive current setting via SimpleSet wireless programming
