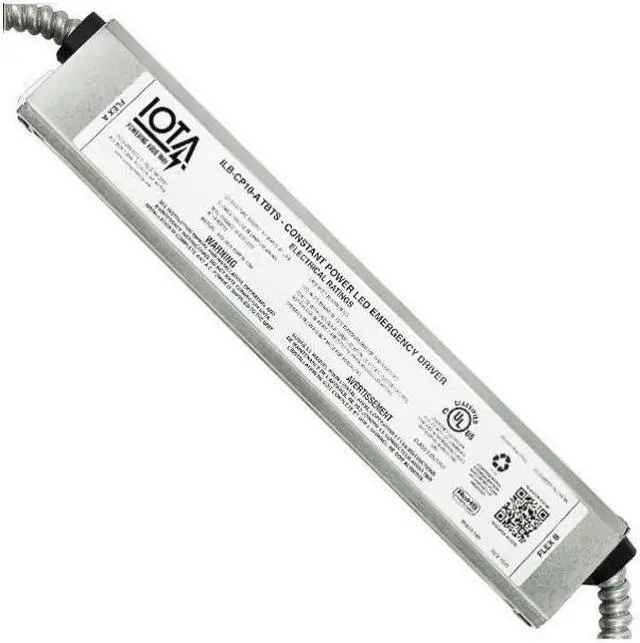

IOTA LED Emergency Backup Driver - Constant Power - 10 Watt - 10-60V Output

IOTA

ILB-CP10-A TBTS

The Iota ILB-CP10-A driver allows the KEY_TAB same LED fixture to be used for both normal and emergency operations. In KEY_TAB the event of a power failure, this LED emergency driver switches to KEY_TAB emergency mode maintaining constant power for 90-minutes with no light KEY_TAB reduction.

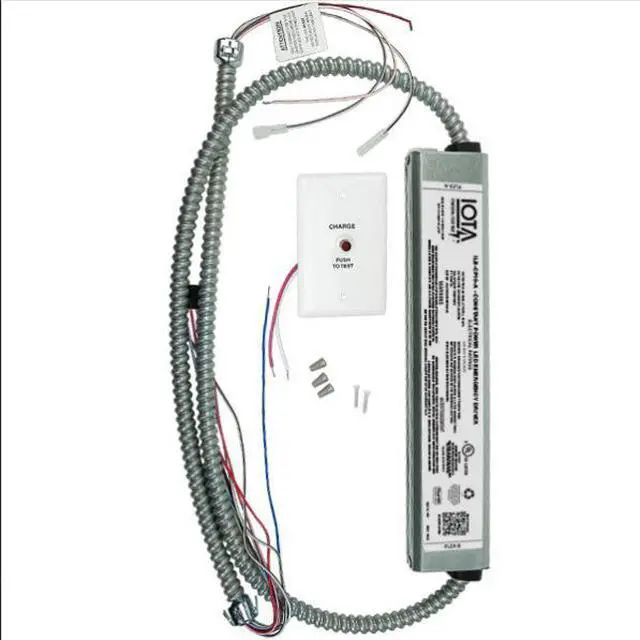

The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The ILB-CP10 will operate an LED array load at 10 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILB-CP10 maintains the output wattage to the LED array even as the system voltage diminishes.

• Battery back-up takes a full 24 hours to fully re-charge
• Long life high temperature recyclable Ni-Cad battery
• For use with switched and unswitched fixtures
• Ideal for downlights, troffers, and strips
• Two-wire universal AC input

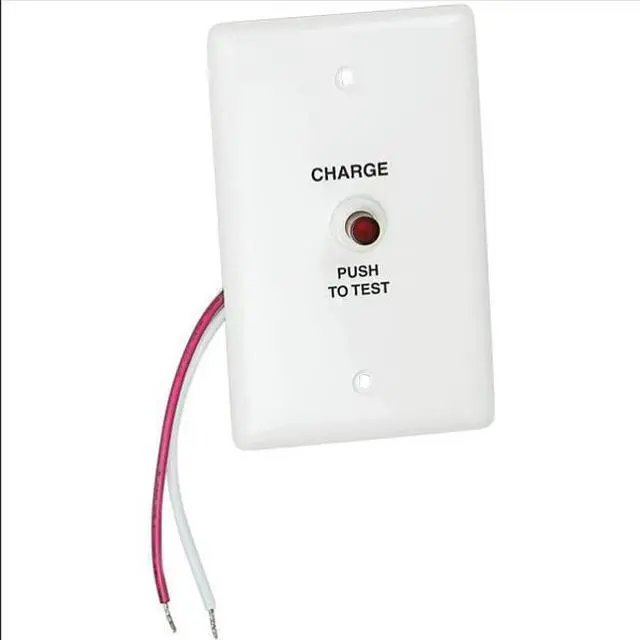

• Includes single-piece TBTS test switch and charge indicator accessory kit
• Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers, or strips, reducing product SKUs for emergency options.
• 120-277 Voltage Input
