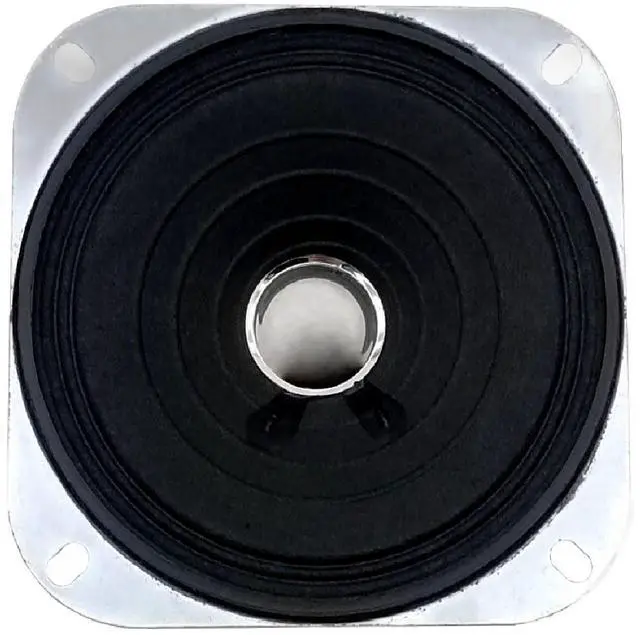

ProTechTrader 4 inch 8 ohm Loud Speaker 4in 10 watt max (Model: 102mm8ohm)

Be the first to review this product...

img{max-width:100%; height:auto;} 4 inch (102mm) 8 ohm Loud Speaker(s) Power Rating (maximum): 10w Power Rating (nominal): 5w 1 (Single Speaker) Great for Arcade Machines, Pinball & Mame Cabinets S...
: 86db +- 3dB @ 1w/1m Effective Frequency Band: 20Khz THD: Maximum 5% Mounting Screw Pattern: They are 3
15 inches / 80mm apart going around the square
The diagonal between mounting holes is just under 4
5 inch or just about 114mm

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

img{max-width: 100%
; height: auto; } 4 inch (102mm) 8 ohm Loud Speaker (s)
Power Rating (maximum): 10w
Power Rating (nominal): 5w 1 (Single Speaker) Great for Arcade Machines, Pinball & Mame Cabinets

Specifications

: Total
Dimensions: 102mm x 102mm x 32mm
Magnet Dimensions: 40mm x 19mm x 8MM
Normal Impedance: 8ohm +- 15%
Resonant Frequency: 160hz +- 20% @ 1vS. P. L.: 86db +- 3dB @ 1w/1m Effective
Frequency Band: 20Khz
THD: Maximum 5%
Mounting Screw Pattern: They are 3.15 inches / 80mm apart going around the square. The diagonal between mounting holes is just under 4.5 inch or just about 114mm.

Additional Information
First Listed on Newegg	February 10, 2026
