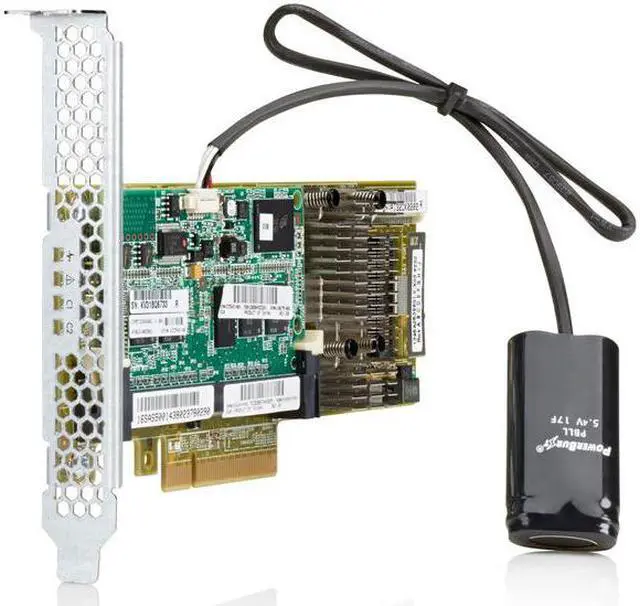

HPE 698530-B21 Smart Array P430/4GB FBWC 6Gb 1-port Int SAS Controller

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: 698530-B21Manufacturer
Website Address:
http: //www. hpe.
comBrand Name: HPE
Product Line: Smart
ArrayProduct Model: P430Product
Name: Smart Array P430/4GB FBWC 6Gb 1-port Int
SAS ControllerMarketing Information: The HP Smart Array P430 Controller is a low profile, PCIe3 x8, 12 Gb/s capable Serial Attached SCSI (SAS) RAID controller that provides enterprise class storage performance and data protection for select HP ProLiant Gen8 rack and tower servers. It features eight internal physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with Flash Backed Write Cache (FBWC), global online spare, and pre-failure warning. Data compatibility between HP Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers. Increased Performance and Data Protection. The HP Smart Array P430 Controller is capable of delivering 12 Gb/s bandwidth and can improve application performance. DDR3-1600MHz Flash Backed Write Cache provides up to 12.8 GB/s maximum cache bandwidth to the 2 GB cache model. DDR3-1866MHz Flash Backed Write Cache kit w/battery provides up to 14.9 Gb/s maximum cache bandwidth to the 4 GB cache model. HP SSD Smart Path provides up to 4x better SSD read performance for Microsoft Windows, Linux and VMware. Data Protection. Data security with optional HP Secure Encryption, an enterprise-class encryption solution for data at rest on any bulk storage attached to the P430 Controller.

Long term data retention with 2GB FBWC or 4GB FBWC kit. Standard on the P430 are RAID 6 ADG, RAID 60 ADG, RAID 1 ADM. Predictive spare activation for improved rebuild and maximized uptime.
Product Type: SAS
ControllerTechnical InformationHost Interface: PCI Express 3.0 x8Controller
Type: 6Gb/s
SASRAID Supported: YesRAID
Levels: 6ADG601 ADM
Data Backup Type: Flash Backed CacheInterfaces/PortsTotal Number of
SAS Ports: 1Number of
SAS Ports (Internal): 1Physical
CharacteristicsForm Factor: Plug-in
CardCard Height:
Low-profileHeight: 7.5"W
idth: 9.5"T
hickness: 2.2"W
eight (Approximate): 15.87 ozMiscellaneousPlatform
Supported: PCEnvironmentally
Friendly: YesEnvironmental
Certification: REACH
