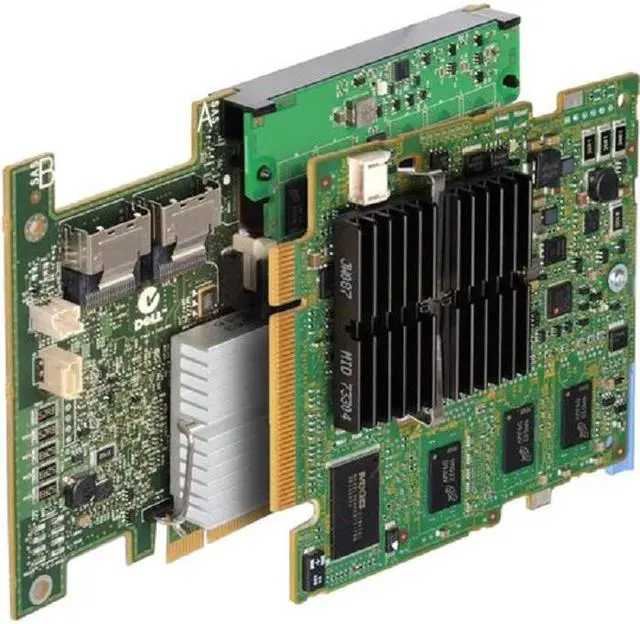

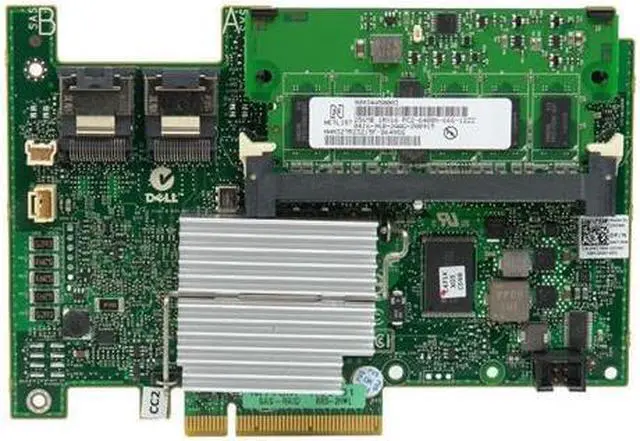

Dell-IMSourcing H2R6M PERC H700 SAS Controller

General InformationManufacturer: Dell-IMSourcingManufacturer
Part Number: H2R6MManufacturer
Website Address:
http: //www. imsourcing.
comBrand Name: Dell-IMSourcingProduct
Series: PERC
Product Model: H700Product
Name: PERC H700
SAS ControllerMarketing Information: The PERC H700 internal host-RAID product offers three different models to support 11th
Generation Dell PowerEdge servers: The PERC H700 Integrated card with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include standard 512 MB with battery backup unit (BBU), 512 MB non-volatile (NV) cache, or 1 GB non-volatile cache. The PERC H700 Integrated card is installed in the dedicated internal storage slot of the server. See Figure 1 for a view of the PERC H700 Integrated card. The PERC H700 Adapter with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include standard 512 MB with BBU, 512 MB non-volatile cache, or 1 GB non-volatile cache. The PERC H700 Adapter is installed in a PCIe slot in the server. See Figure 1 for a view of the PERC H700 Integrated card (adapter version is the same with the addition of a sled for adhering to the PCIe slot connection). The PERC H700 Modular card with one x4 internal SAS port and a BBU supports the PCIe 2.0 x4 host interface. The PERC H700 Modular card is installed in the integrated slot in the blade server platforms. See Figure 2 for a view of the PERC H700 Modular card.

Product Type: SAS
ControllerTechnical InformationHost Interface: PCI Express 2.0 x8Controller
Type: 6Gb/s
SASRAID Supported: YesRAID
Levels: 0156105060MemoryCache
Memory: 512 MBInterfaces/PortsNumber of
SAS Ports (Internal): 8SAS Connector

Details

: 2Physical
CharacteristicsForm Factor: Plug-in
CardMiscellaneousPlatform Supported: PCLinux
