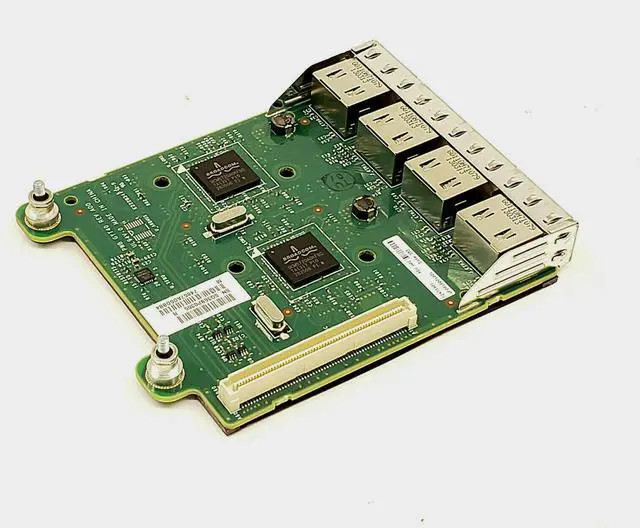

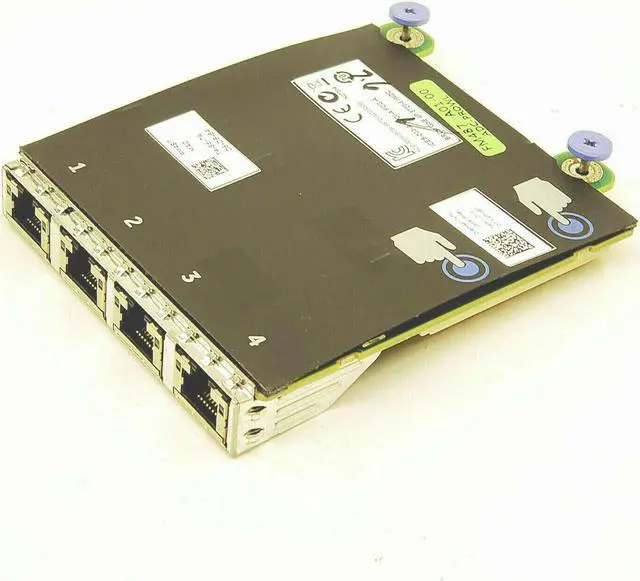

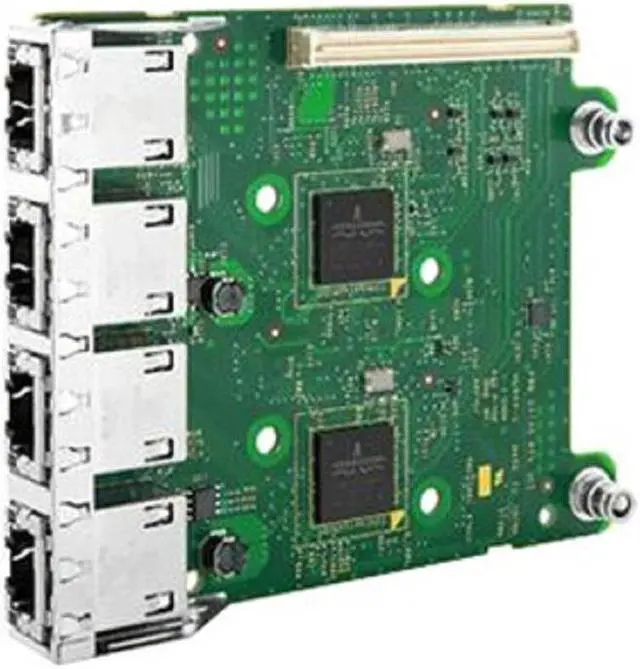

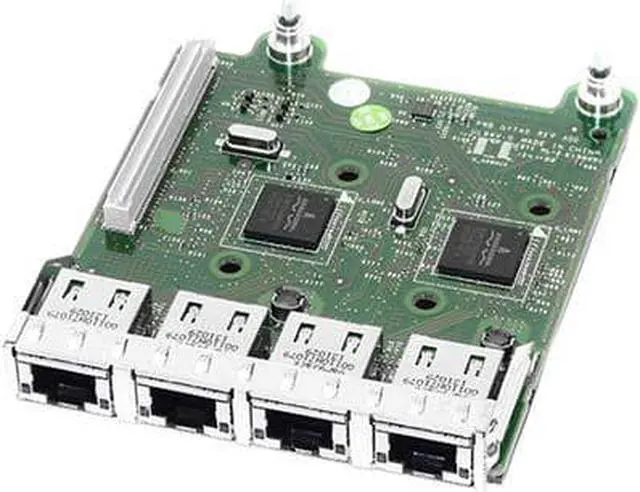

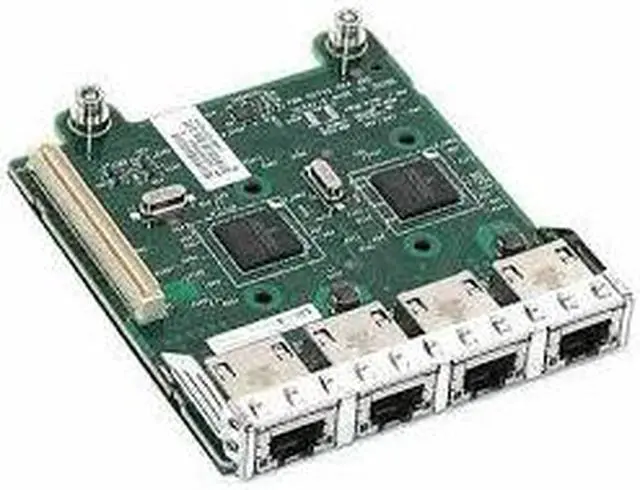

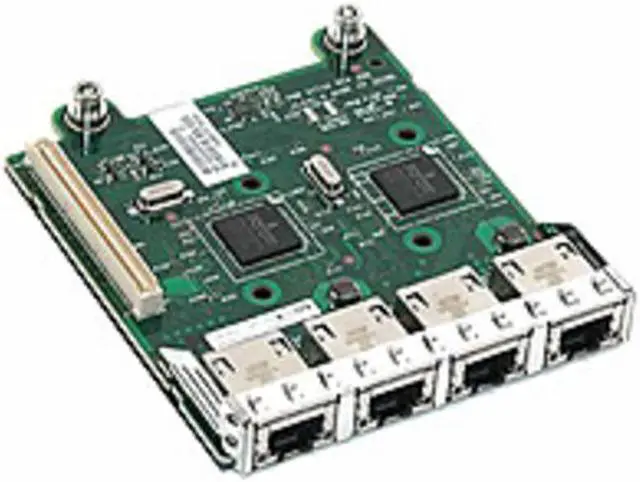

Dell-IMSourcing FM487 Broadcom 5720 Quad-Port 1 GB Network Daughter Card

General InformationManufacturer: Dell-IMSourcingManufacturer

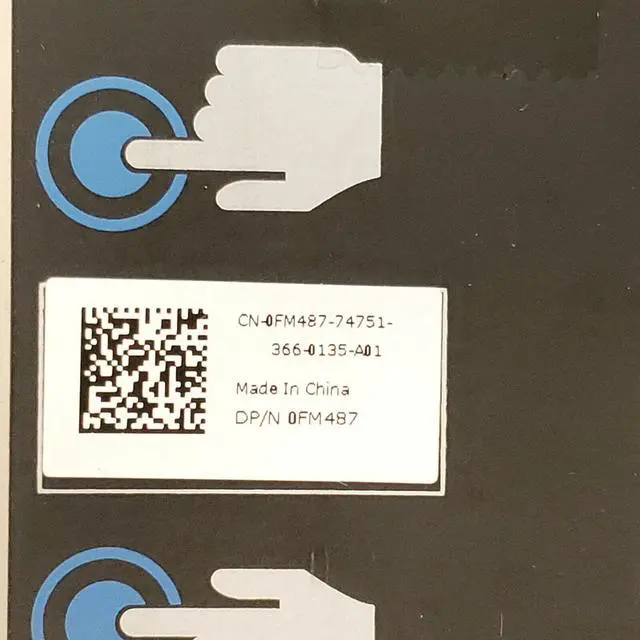

Part Number: FM487Manufacturer
Website Address:
http: //www. imsourcing.
comBrand Name: Dell-IMSourcingProduct
Model: BCM5720Product
Name: Broadcom 5720 Quad-Port 1
GB Network Daughter CardMarketing Information: Highlights Provides four high-performance GbE ports for your enterprise Combines great bandwidth and multiple data paths with easy upgrade and deployment capabilities Designed to provide maximum flexibility and optimized performance Simplifies management with the ability to boot a server from an OS image maintained on a remote storage device within your network Overview The Broadcom BCM5720 is a fully integrated 10/100/1000Base-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The quad-port Gigabit network daughter card features quad triple-speed IEEE 802.3 -compliant Media Access Controllers (MACs) with quad 10/100/1000 Ethernet transceivers (PHYs), PCI Express bus interface, and on-chip memory buffer in a single device. It's based on dual Broadcom BCM5720 controllers each providing two ports.
Product Type: Daughter
CardTechnical InformationApplication/Usage: Access ControlInterfaces/PortsTotal Number of
Ports: 4Connector
Type: RJ-45Interfaces/Ports

Details

: 4 x RJ-45 10/100/1000Base-T LAN
Media & PerformanceMedia
Type Supported: Twisted
PairEthernet Technology: Gigabit
EthernetNetwork Technology:
10/100/1000Base-TMiscellaneousCompatibility: Dell
PowerEdge Systems: R620 R630 R720 R720XD R730 R730XD R820 R920 R930
