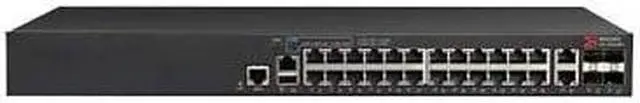

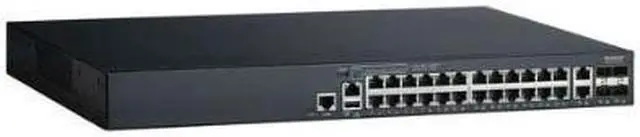

Ruckus ICX7150-24P-4X10GR 24-Ports Rack Mount Managed Network Switch

Ruckus ICX7150-24P-4X10GR 24-Ports Rack Mount Managed Network Switch

Brand:  Ruckus

Model:  ICX7150-24P-4X10GR

Product Type:  Switch

Number of Ports:  24

Max Units In A Stack:  8

Advanced Switching:  Layer 3

MAC Address Table Size:  16384 entries

Jumbo Frame Support:  9216 bytes

Remote Management Protocol:  SNMP 3, TFTP, Telnet, HTTP, CLI, HTTPS, SCP

Routing Protocol:  RIP-2, RIP-1, RIPng, Static IPv4 routing, Static IPv6 routing

Performance:  Forwarding performance: 98 Mpps, Switching capacity: 132 Gbps, Stacking bandwidth: 320 Gbps

Interfaces:  2 x 1000Base-T RJ-45 uplink, 1 x USB-C management, 24 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE), 1 x console RJ-45

Capacity:  Virtual interfaces (VLANs): 4095, QoS hardware queues: 8, Spanning Tree Protocol instances: 254, ARP entries: 2048

Nominal Voltage:  AC 120/230 V

Frequency Required:  50/60 hertz

Min Operating Temperature:  23 degree Fahrenheit

Max Operating Temperature:  122 degree Fahrenheit

Form Factor:  Rack-mountable
