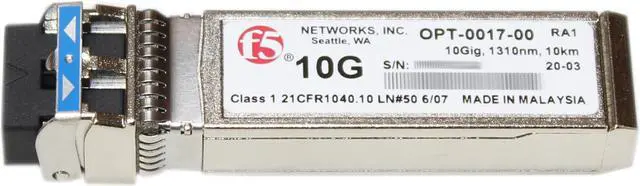

Main image of F5 Networks OPT-0017-00 10G SFP+ SMF 1310nm 10km Transceiver Module F5-UPG-SFP+LR-R-BWIN

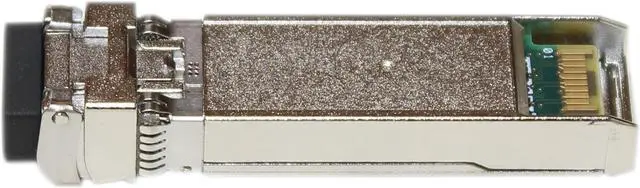

Alt view image 2 of 3 - F5 Networks OPT-0017-00 10G SFP+ SMF 1310nm 10km Transceiver Module F5-UPG-SFP+LR-R-BWIN

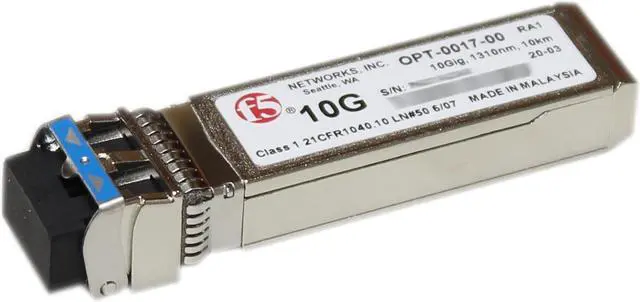

Alt view image 3 of 3 - F5 Networks OPT-0017-00 10G SFP+ SMF 1310nm 10km Transceiver Module F5-UPG-SFP+LR-R-BWIN

Shop All F5 Networks Products | Visit Compeve Store

F5 Networks OPT-0017-00 10G SFP+ SMF 1310nm 10km Transceiver Module F5-UPG-SFP+LR-R-BWIN

Be the first to review this product...

F5 Networks
OPT-0017-00
F5-UPG-SFP+LR-R-BWIN

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

F5 Networks OPT-0017-00 10G SFP+ SMF 1310nm 10km Transceiver Module F5-UPG-SFP+LR-R-BWIN
Condition: New
(New Bulk)
SKU: 583900100102

Specification:

F5 Networks Genuine - F5-UPG-SFP+LR-R
Form Factor - SFP+
Wavelength - 1310nm
Connector - LC Duplex
Transmitter Type - DFB
DDM/DOM - Supported
TX Power - -8.2~0.5dBm
Power Consumption ~ 1W
Bit Error Ratio (BER) - 1E-12
EMC (Electro Magnetic Compatibility) - Supported
Protocols - IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Max Data Rate - 10Gbps
Max Cable Distance - 10km
Media - SMF
Receiver Type - PIN
Commercial Temperature Range - -5 to 70°C (23 to 158°F)
Receiver Sensitivity - ~-14.4dBm
Receiver Overload - 0.5dBm
Extinction Ratio - ~3.5dB
MTBF - 1,000,000 Hours

Compeve DTP#: mrk001
