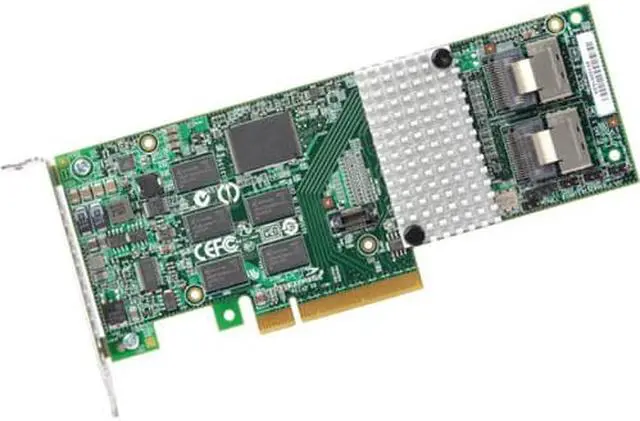

LSI LSI00212 Logic MegaRAID 9261-8i SGL 8-port SAS RAID Controller

General InformationManufacturer: LSI Logic CorpManufacturer
Part Number: LSI00212Manufacturer
Website Address:
http: //www. lsilogic.
comBrand Name: LSI
LogicProduct Line: MegaRAID
Product Model: 9261-8i SGL
Product Name: MegaRAID 9261-8i SGL 8-port
SAS RAID ControllerMarketing Information: The eight-port MegaRAID SAS 9261-8i provides a new level of performance and data protection for internal storage systems using up to 32 SATA or SAS hard drives or solid state drives. With data transfer rates of up to 6Gb/s per port, the MegaRAID SAS 9261-8i brings users new features and improved performance while continuing to support all the features of the previous 3Gb/s SATA and SAS generation. This value line controller, ideal for inside-the-box connectivity, employs the latest in RAID-on-Chip (ROC) technology and complies with the PCI Express 2.0 specification for high-bandwidth applications.
Product Type: SAS
ControllerTechnical InformationHost Interface: PCI Express 2.0 x8Controller
Type: Serial
ATA/600RAID Supported: YesRAID
Levels: 0156105060Maximum
Data Transfer Rate: 600Interfaces/PortsTotal Number of
SAS Ports: 2Number of
SAS Ports (Internal): 2SAS
Connector Details: 2 x
SFF-8087Physical CharacteristicsForm Factor: Plug-in
CardCard Height:
Low-profileHeight: 2.5"W
idth: 6.6"M iscellaneousPlatform
Supported: PCSPARC
