$3,870.00
Ships from China.
Meet Your Seller

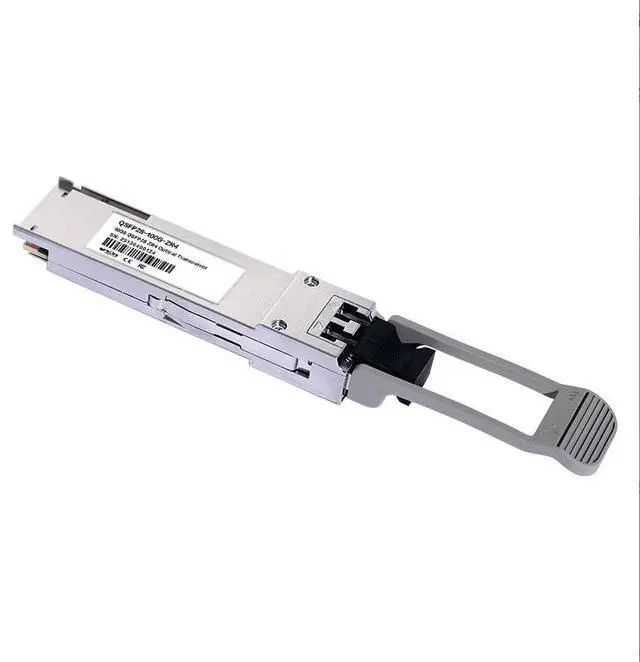

QSFP28-100G-ZR4 80-kilometer long-distance high-performance low-power optical transceiver module
- Supports 103Gbps
- For G.652 single-mode optical fiber (SMF), the transmission distance can reach up to 80 kilometers
- Single 3.3V power supply, power consumption <7.5W0
- A 4x28Gbps local area Network wavelength division multiplexing (LAN-WDM) cold transmitter based on an electro-absorption modulated laser (EML)
- The receiving end is equipped with a semiconductor optical amplifier (SOA)+PIN photodiode and transimpedance amplifier (TIA) array
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports 103Gbps
For G. 652 single-mode optical fiber (SMF), the transmission distance can reach up to 80 kilometers
Single 3.3V power supply, power consumption <7.5W0
A 4x28Gbps local area Network wavelength division multiplexing (LAN-WDM) cold transmitter based on an electro-absorption modulated laser (EML)
The receiving end is equipped with a semiconductor optical amplifier (SOA) +PIN photodiode and transimpedance amplifier (TIA) array
For G. 652 single-mode optical fiber (SMF), the transmission distance can reach up to 80 kilometers
Single 3.3V power supply, power consumption <7.5W0
A 4x28Gbps local area Network wavelength division multiplexing (LAN-WDM) cold transmitter based on an electro-absorption modulated laser (EML)
The receiving end is equipped with a semiconductor optical amplifier (SOA) +PIN photodiode and transimpedance amplifier (TIA) array
