2PCS 10GBASE-T SFP+ RJ45 Copper Transceiver Module, Multi-Rate 1.25G/2.5G/5G/10G up to 30m - Compatible with TP-Link, Cisco SFP-10G-T-S, Ubiquiti UF-RJ45-10G, Netgear, Broadcom, Mikrotik and More

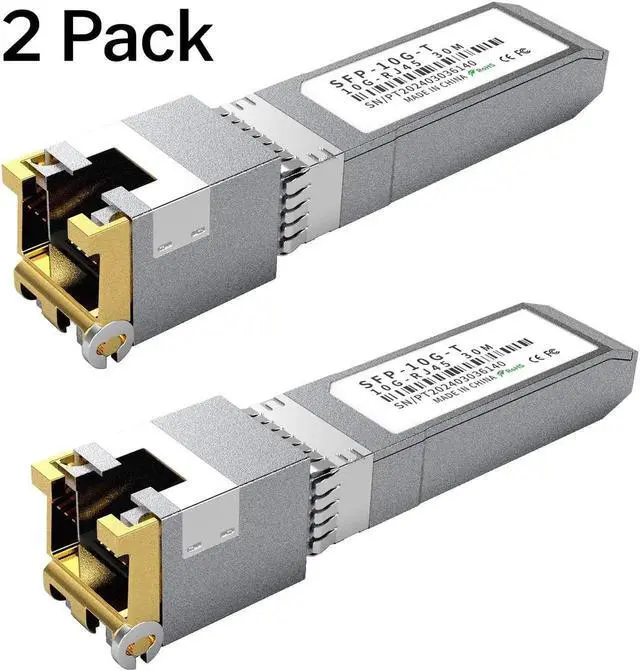

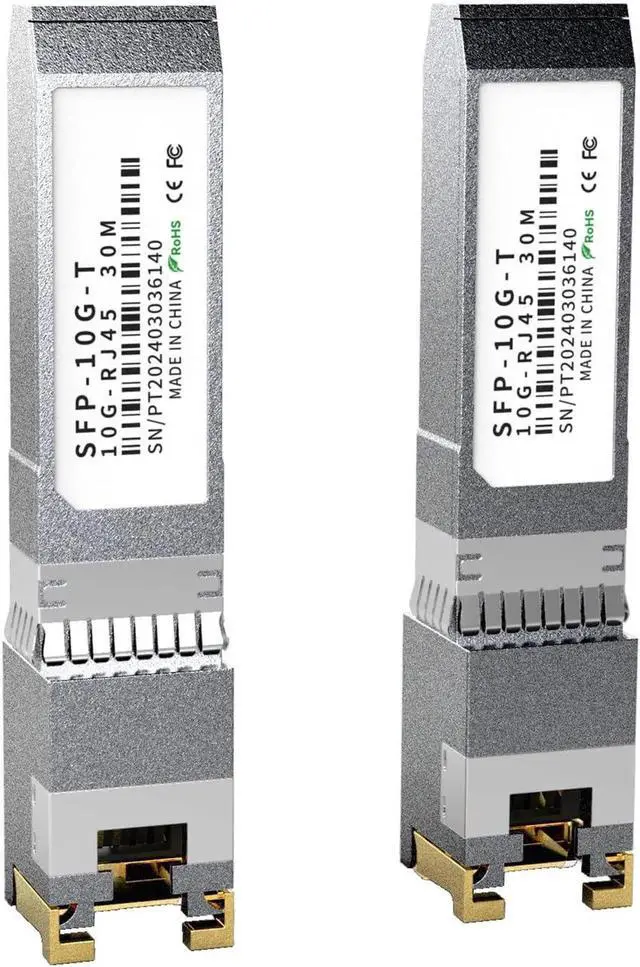

2PCS 10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver Module - up to 30 Meters

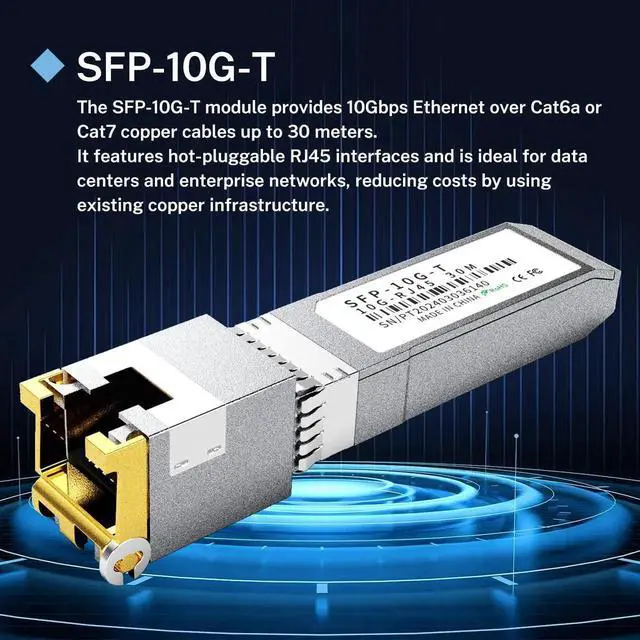

This 10GBase-T SFP+ RJ45 Copper Transceiver Module is designed for high-speed data transfer and reliable connectivity in your network infrastructure. It supports data rates from 1.25G to 10G, making it versatile for various applications and compatible with a wide range of network devices.

Features:

Compliant Protocols: Adheres to SFF-8431 and SFF-8432 MSA, IEEE 802.3 az, and IEEE 802.3 bz standards, ensuring high compatibility and performance.

Operating Temperature: Functions effectively within an operating case temperature range of 0°C to +70°C, suitable for various environments.

Low EMI Emissions: Features a fully metallic enclosure to minimize electromagnetic interference.

Power Supply: Requires a + 3.3V single power supply and boasts low power consumption ( 2.5W max at 30m).

Hot-Pluggable: Compact RJ-45 connector assembly with a hot-pluggable SFP+ footprint allows for easy installation and replacement.

Advanced Features: Supports TX Disable and RX Los functions, physical layer IC access via a 2-wire serial bus, and auto-negotiation with other 10GBase-T PHYs.

Wide Cable Compatibility: Supports links up to 30m using Cat 6A cables and up to 100m using Cat 5e cables for 100/1000Base-T connections.

MDI/MDIX Crossover: Includes multiple loopback modes for testing and troubleshooting.

Built-in Diagnostics: Equipped with built-in cable monitoring and link diagnostic capabilities, supporting both unshielded and shielded cables.

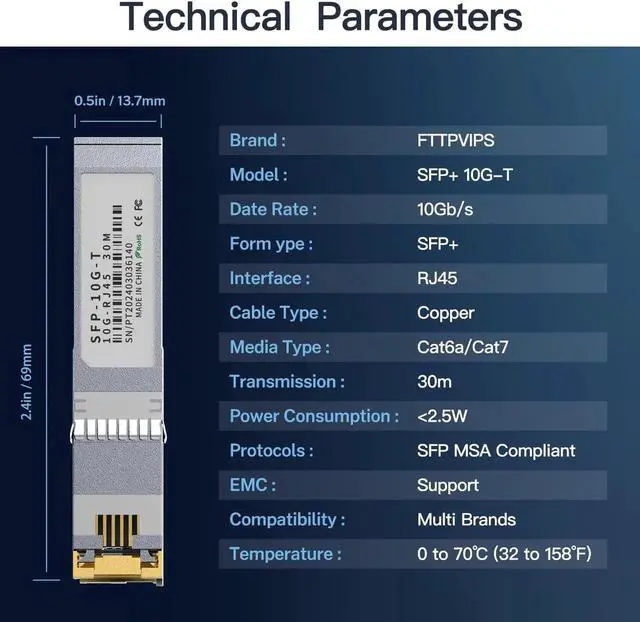

Product

Specifications

:

Data Rate: 1.25G / 2.5G /5G/10G

Interface: RJ-45

Cable Type: Cat 5e, Cat 6A, Cat 7

Maximum Reach: Up to 30 meters (Cat 6A), up to 100 meters (Cat 5e)

Power Supply: + 3.3V single power supply

Power Consumption: 2.5W max at 30m

Protocols: SFF-8431, SFF-8432 MSA, IEEE 802.3 az, IEEE 802.3 bz

Operating Temperature: 0°C to +70°C

Features: TX Disable, RX Los, Low EMI, Hot-pluggable

Special Functions: Auto-Negotiation, MDI/MDIX Crossover, Built-in Diagnostics

Remarkable Compatibility:

1.

Device Compatibility: This transceiver is compatible with a wide range of equipment including Cisco, Meraki, Ubiquiti, D-Link, Supermicro, TP-Link, Broadcom, Linksys, Huawei, MikroTik, Netgear, and other open switches. It is ideal for 10Gbase networking devices such as fiber switches, routers, network interface cards (NICs), NAS, and 10Gb media converters.

2.

Application Scenarios: Ideal for 10/5/ 2.5 Gigabit Ethernet over Cat 6A cable and 1.25 Gigabit Ethernet over Cat 5e cable, providing versatile connectivity options.

3.

High Data Rate: Supports data rates up to 10Gb/s, making it suitable for high-performance network equipment with RJ45 interfaces.

Plug and Play:

1.

Easy Connection: The RJ45 interface links seamlessly with Cat 5e/Cat 6a cables, allowing for connections up to 30 meters.

2.

Simple Installation: Supports hot-swappable devices, making installation and replacement quick and hassle-free.

Enhance your network's performance and reliability with this high-quality 10GBase-T SFP+ RJ45 Copper Transceiver Module, designed for easy integration and exceptional compatibility with your existing network infrastructure.
