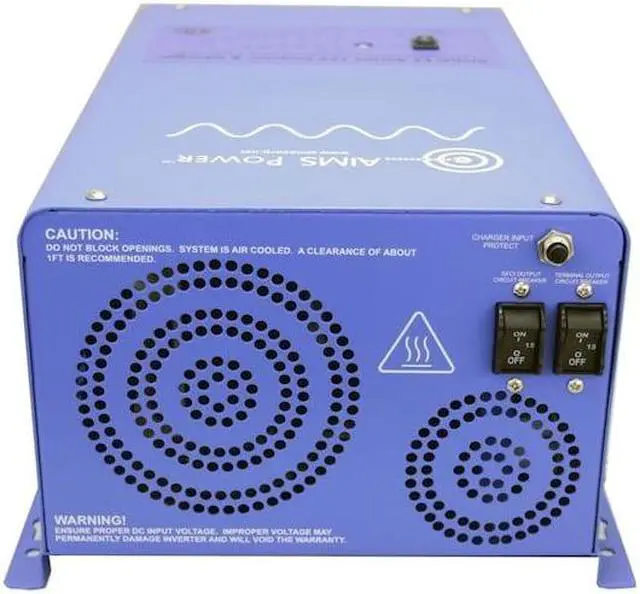

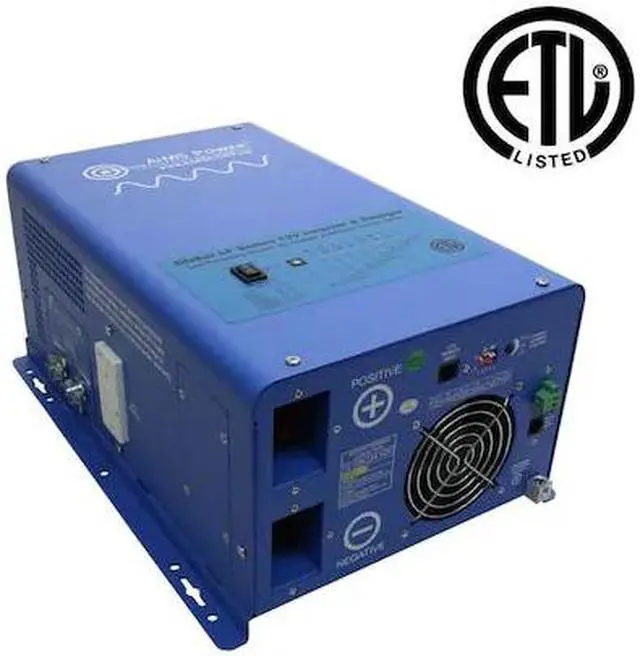

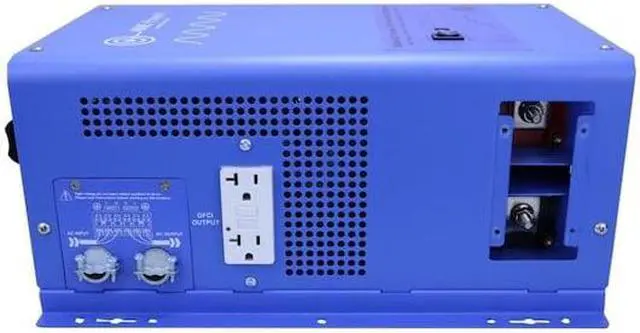

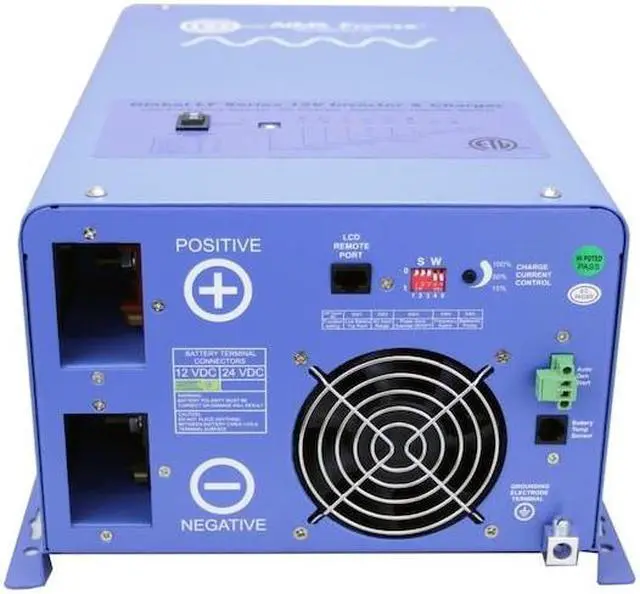

AIMS Power PICOGLF15W12V120V 2000 Watt Pure Sine Inverter Charger- ETL Certified Conforms to UL458 Standards

The Aims PICOGLF15W12V120V is the UL 458 approved version of the wildly popular PICOGLF15W12V120VR inverter charger. The design is somewhat different to ensure compliance and conform to UL standards. Features Listed to UL 458 Standards 1500 watt low frequency inverter 4500 watt surge for 20 seconds -3x surge capability GFCI Battery Priority Selector Terminal Block Marine Coated and Protected Multi Stage Smart charger 50 Amp remote panel available auto frequency auto gen start 10msec typical transfer time 7 battery type settings for charge
Specifications Continuous Output Power: 1500
Watts Surge Rating: 4500 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output Voltage: 100-110-120Vac
Nominal Efficiency: >92% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.3H z / 60Hz +/- 0.3H z
Typical Transfer Time: 10ms (Max) Nominal
Input Voltage: 12.0V dc
Minimum Start Voltage: 10.0V dc Low
Battery Alarm: 10.5V dc- 11.0V dc Low battery
Trip: 10.0V dc- 10.5V dc High
Voltage Alarm: 16.0V dc Low battery
Voltage Restart: 13.0V dc
Idle Consumption: 13.5 watts
Power Saver Mode Idle Consumption: 8 watts
Output voltage: Depends on battery
Type Charger Rate: 50A
Weight: 46 lbs. Size L x W x
H: 15.35 x 11 x 7 inches
