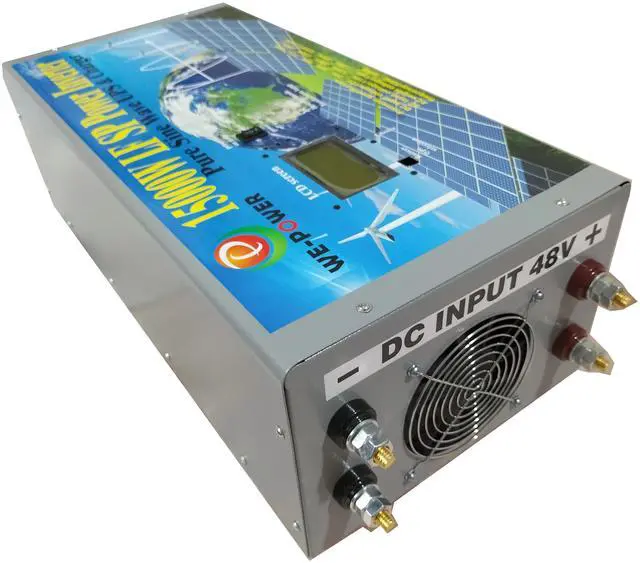

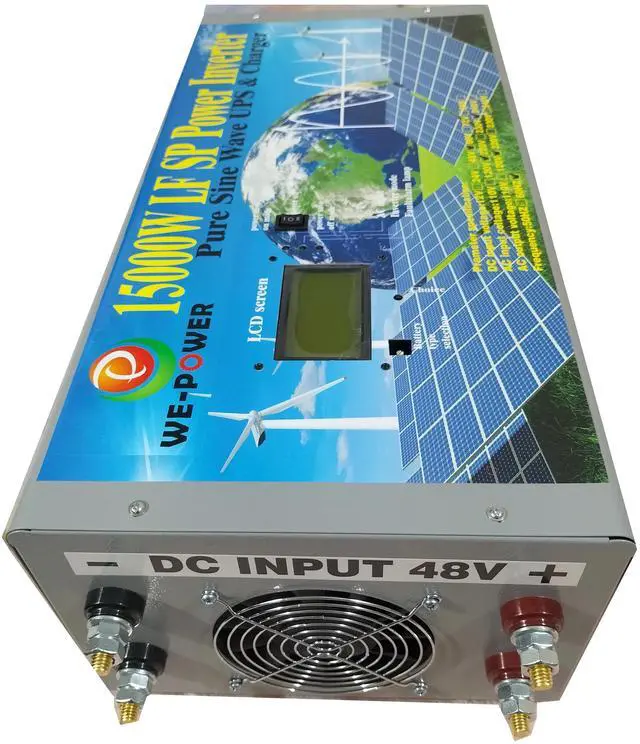

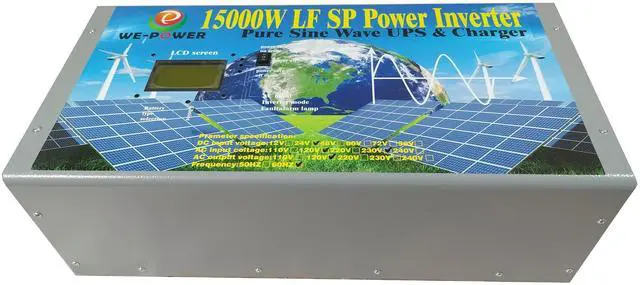

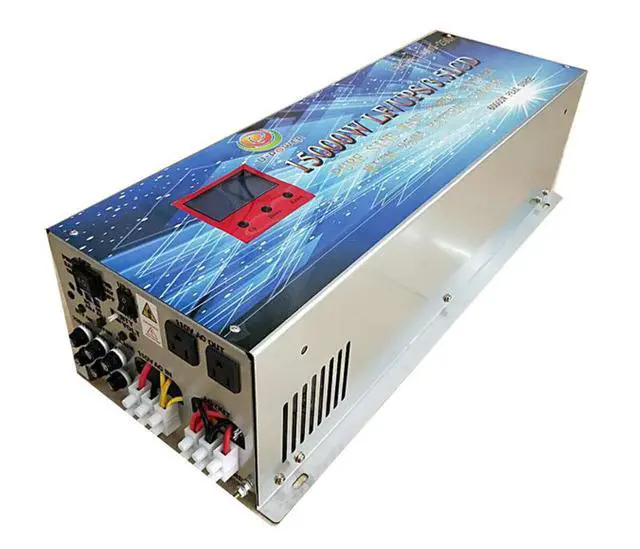

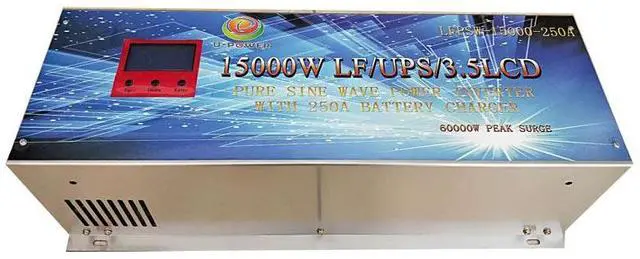

U-POWER 60000W Peak 15000W Power Inverter(7500W 110V Or 7500W 220V)Low Frequency Split Phase Pure Sine Wave Solar Converter 48V DC To 110V,220V AC 60Hz Frequency With UPS/Battery Charger/LCD Display

60000W Peak 15000W (7500W 110V Or 7500W 220V)

Low Frequency Split Phase Pure Sine Wave Solar Power Inverter

DC 48V to AC 110V & 220V 60Hz

AC 110V: 7500W continue power, 30000w peak power

AC 220V: 7500W continue power, 30000w peak power

AC 110V & 220V at the same time: 7500W continue power, 30000w peak power

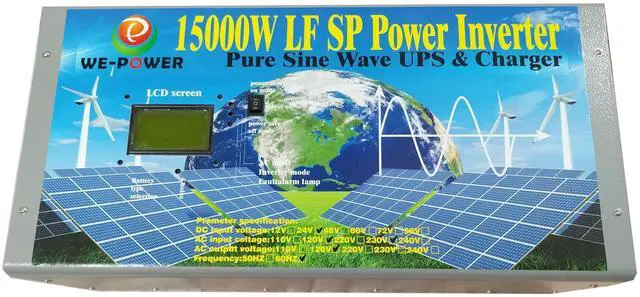

With 110v & 220v output LCD Display

With 110V Battery Charger & UPS

With Power Save on

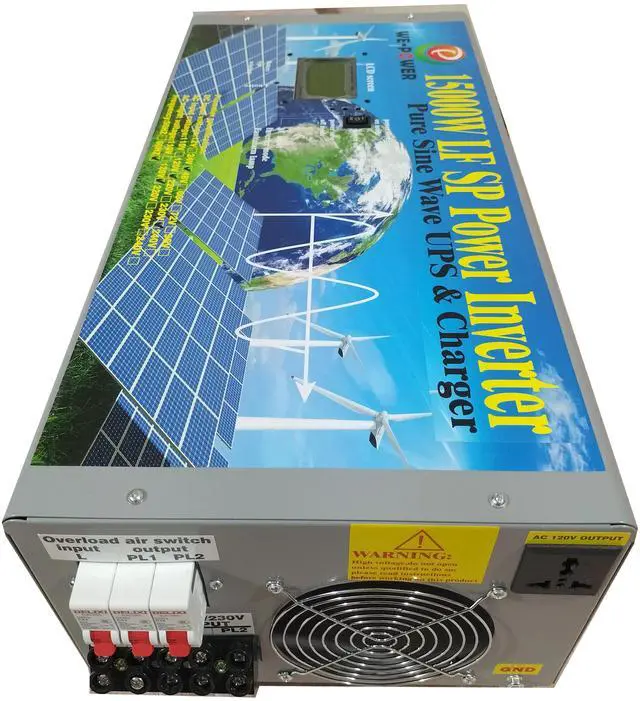

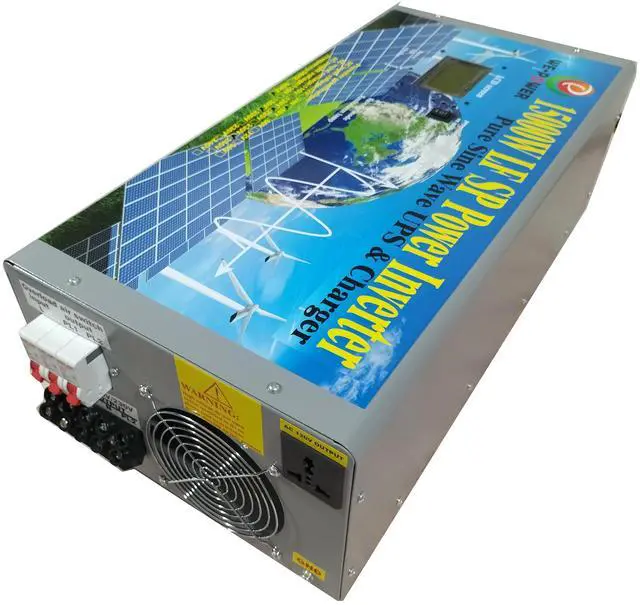

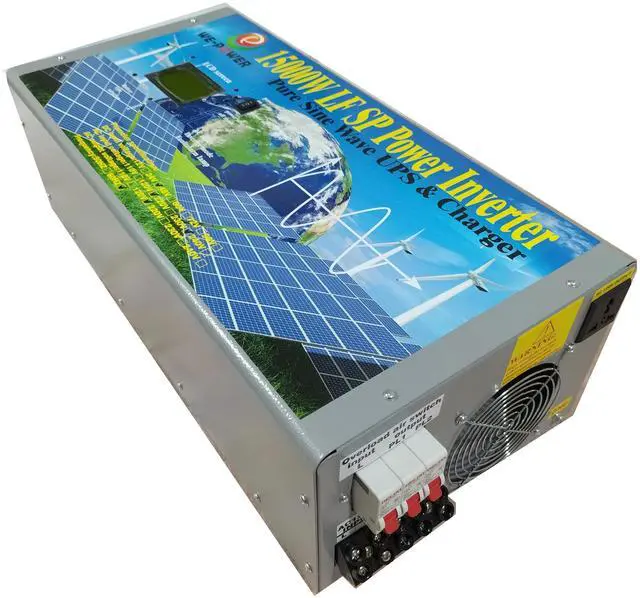

For L1,N,L2 AC output

L1+N=110V (L1 is Live,N is Neutral) (110V Output Preferred Interface)

L2+N=110V(L2 is Live,N is Neutral)

L1+L2=220V(L1 is 220v Live,L2 is 220v Live)

Attention: The control board design of our power inverter is preferred for controlling the output voltage and current of 110V Output

So it is recommended to use a balanced output of 110V and 220V at the same time,

such as

half 110V output + half 220V output,

or use 110V output more than 220V output.

If only the 220v output is used alone without use the 110 output, you can still get full 220v output,but the LCD display just show half data of the 220v output wattage & current

If you need 220v preferred control board and the LCD display show full 220v output wattage & current, you need to contact us to customize the control board by your charger, and the battery charging function can only select 220V also,thanks

Environmental friendly material-stainless steel, in order to protect the environment,no spray paint, no environmental pollution. Although no beautiful outside , but it protects environment and also saves some cost. we will reduce this cost to buyer directly and offer a better price for buyer.

UPS : Use your ac home power first, if out of ac power, auto switch to dc bank power.If the machine is connected to the battery and home mains at the same time, the machine priority to use the home mains electricity, if the home mains electricity is failure, the machine will be automatically converted into Inverter function to run the home appliances.

POWER SAVE ON :

If you only connect battery with load, ac cable unconnect, when you switch to battery charger mode, this means is power save mode on, in this moment the condition as follows: The inverter will go to sleeping mode , no load current is 0 AMP, every 3secs, the inverter will detection itself, after the 3sec, amp will go to 3amp(stand by power, time: 1sec, then back to sleep mode, amp is 0), the inverter will repeat the situation, until you switch to power save off(inverter on, down side)

some customer need use refrigerator can switch to power save on mode, as refrigerator only will work every half an hour or one hour , but inverter stay in power save function, no load current is 0amp , can save power.

When toggled this inverter will power on every 4 seconds and check for a load of 25 watts or greater. If no load is detected it will power down and wait 4 seconds. This mode is perfect for items that do not run continuously such as refrigerators and freezers. It will save on standby draws where energy saving is critical. This mode uses approximatel
