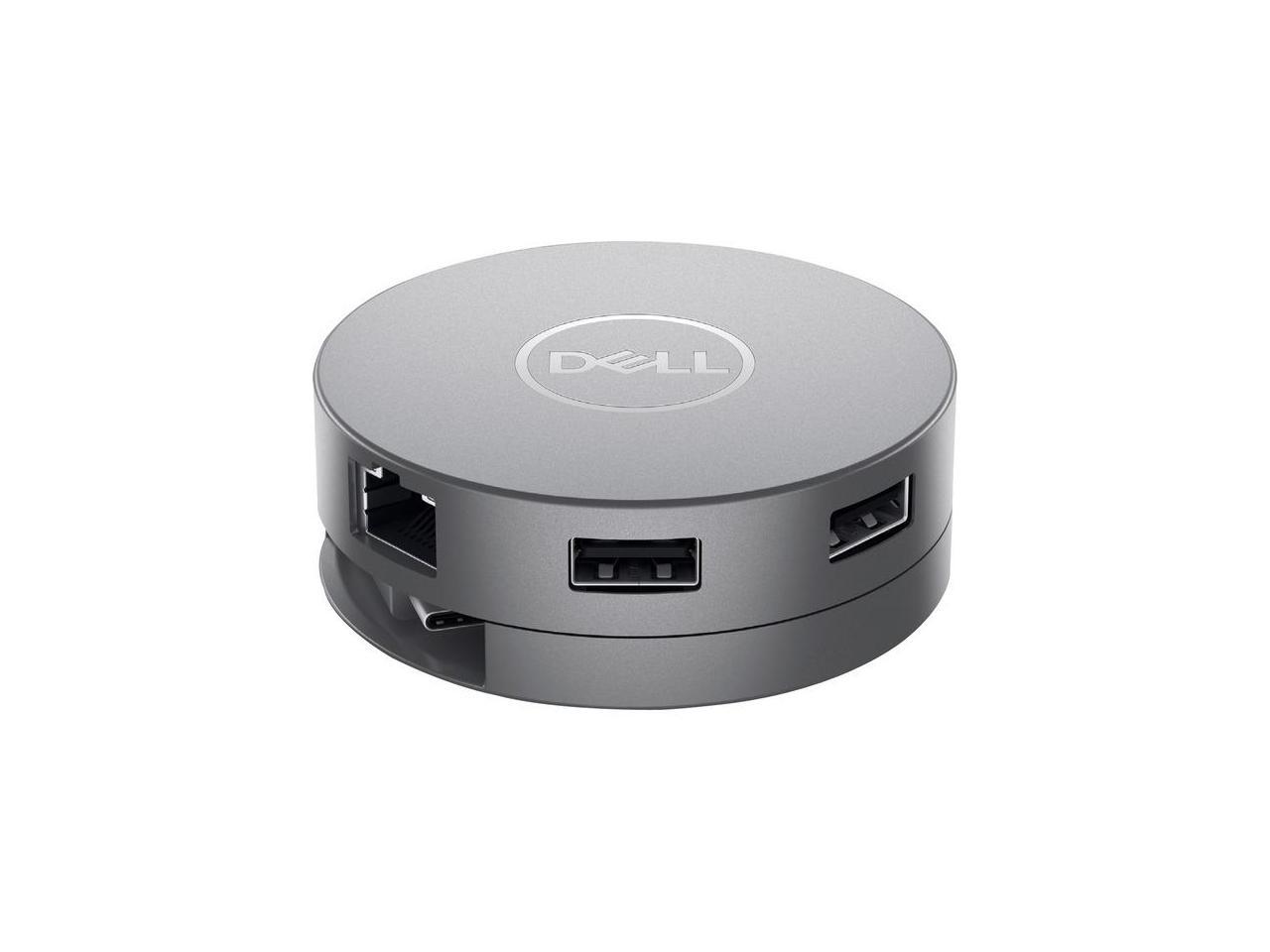

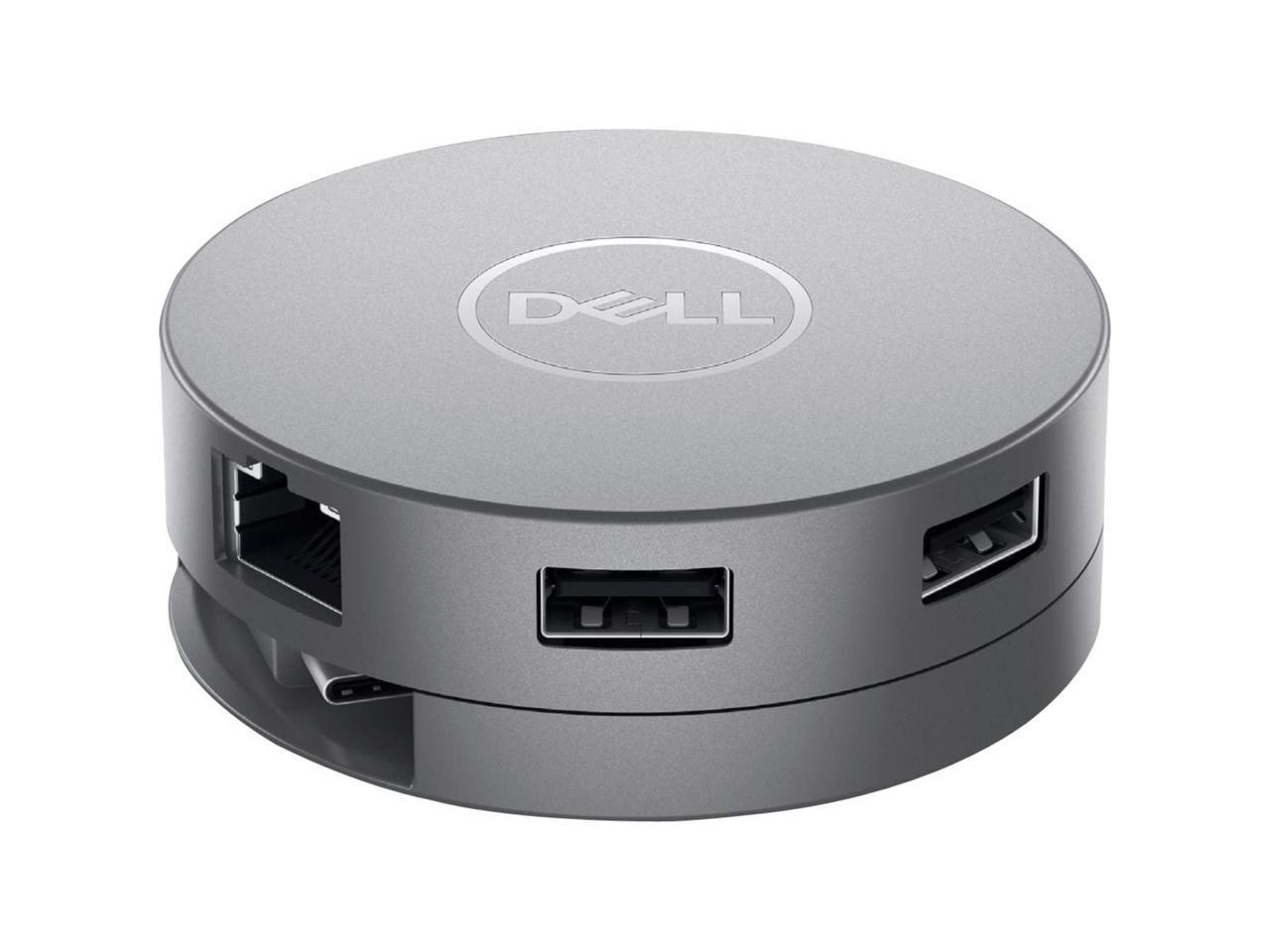

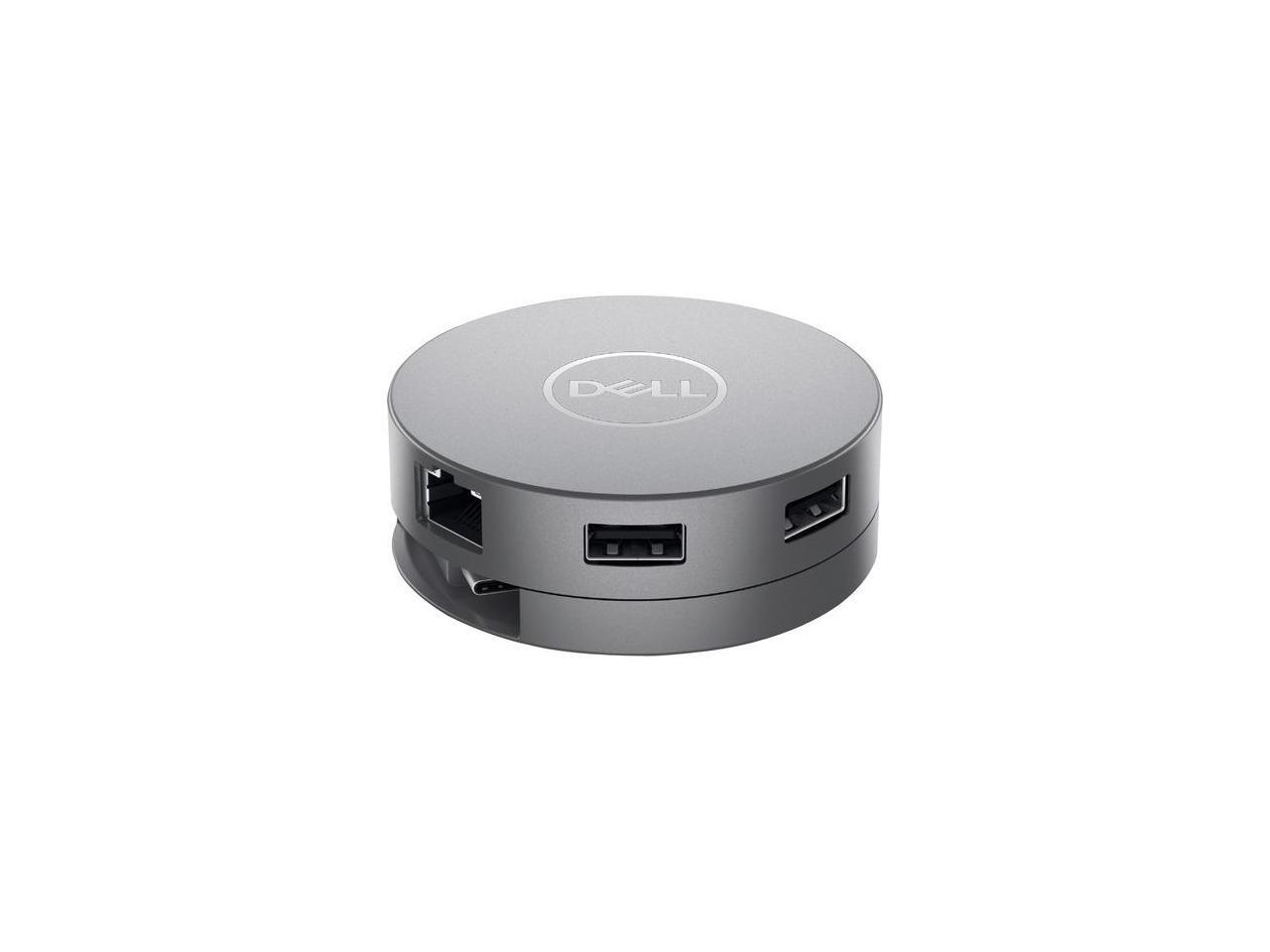

Dell 7-in-1 USB-C Multiport Adapter - DA310

Featuring the widest variety of ports available, the compact 7-in-1 Dell USB-C Mobile Adapter — DA310 offers video, network, data connectivity, and up to 90W power pass-through for your laptop.

Comprehensive 7-in-1 adapter with power pass-through

The Dell 7-in-1 USB-C Multiport Adapter is a compact and portable multiport 7-in-1 adapter that can connect to just about any device you have. Its downstream USB-C port supports power pass through and is ideal when your laptop does not have any more USB-C charging ports.

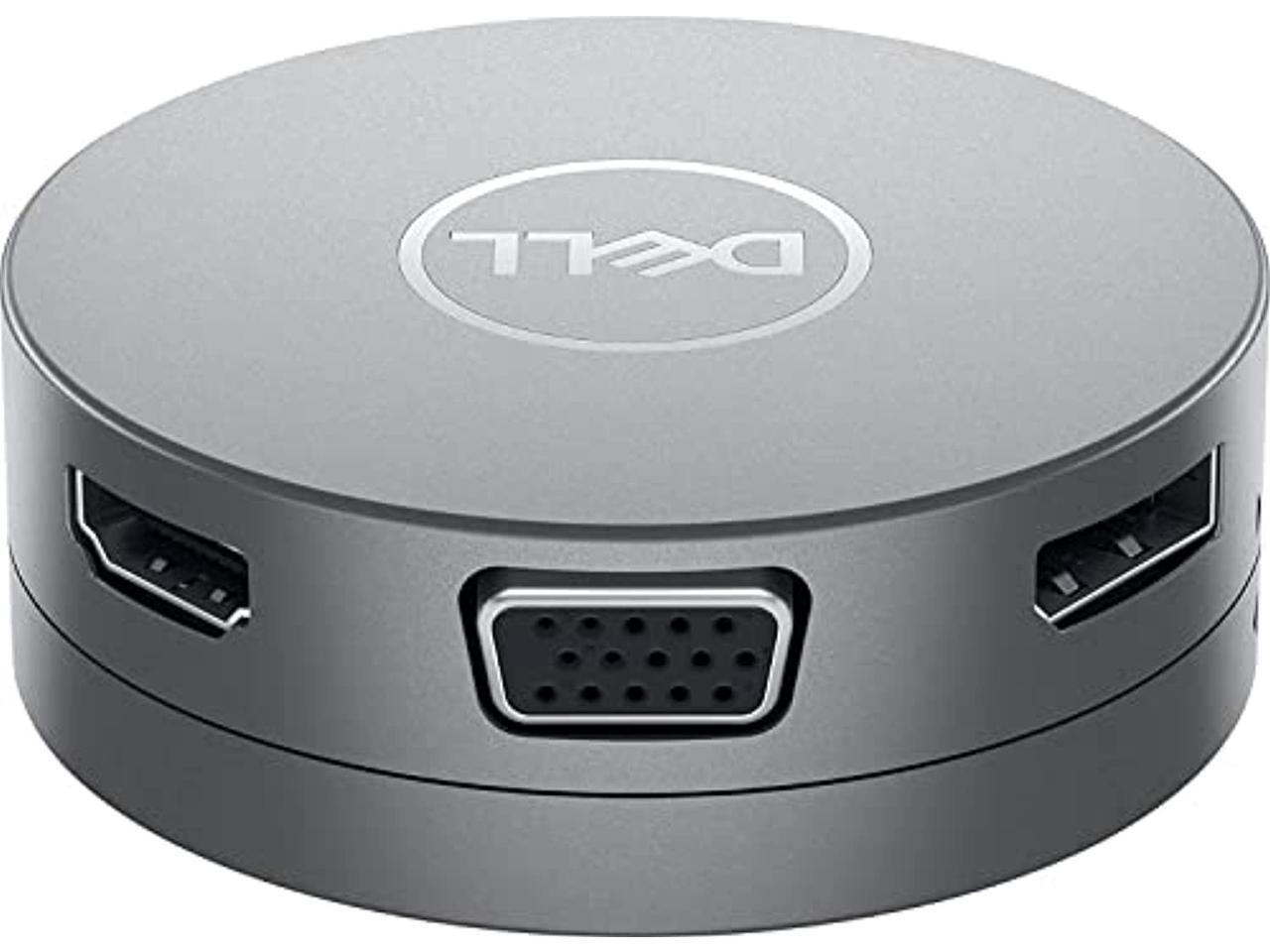

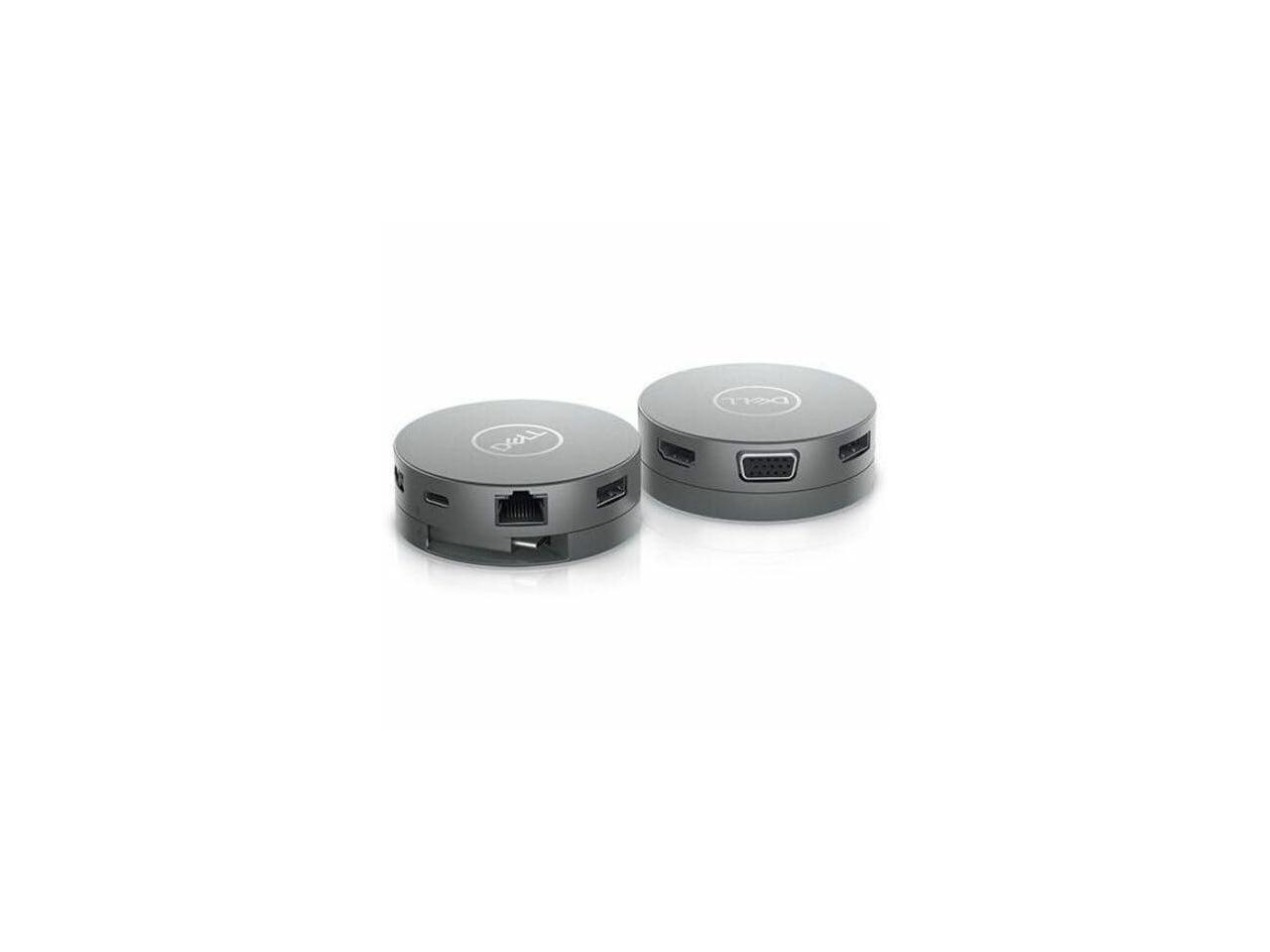

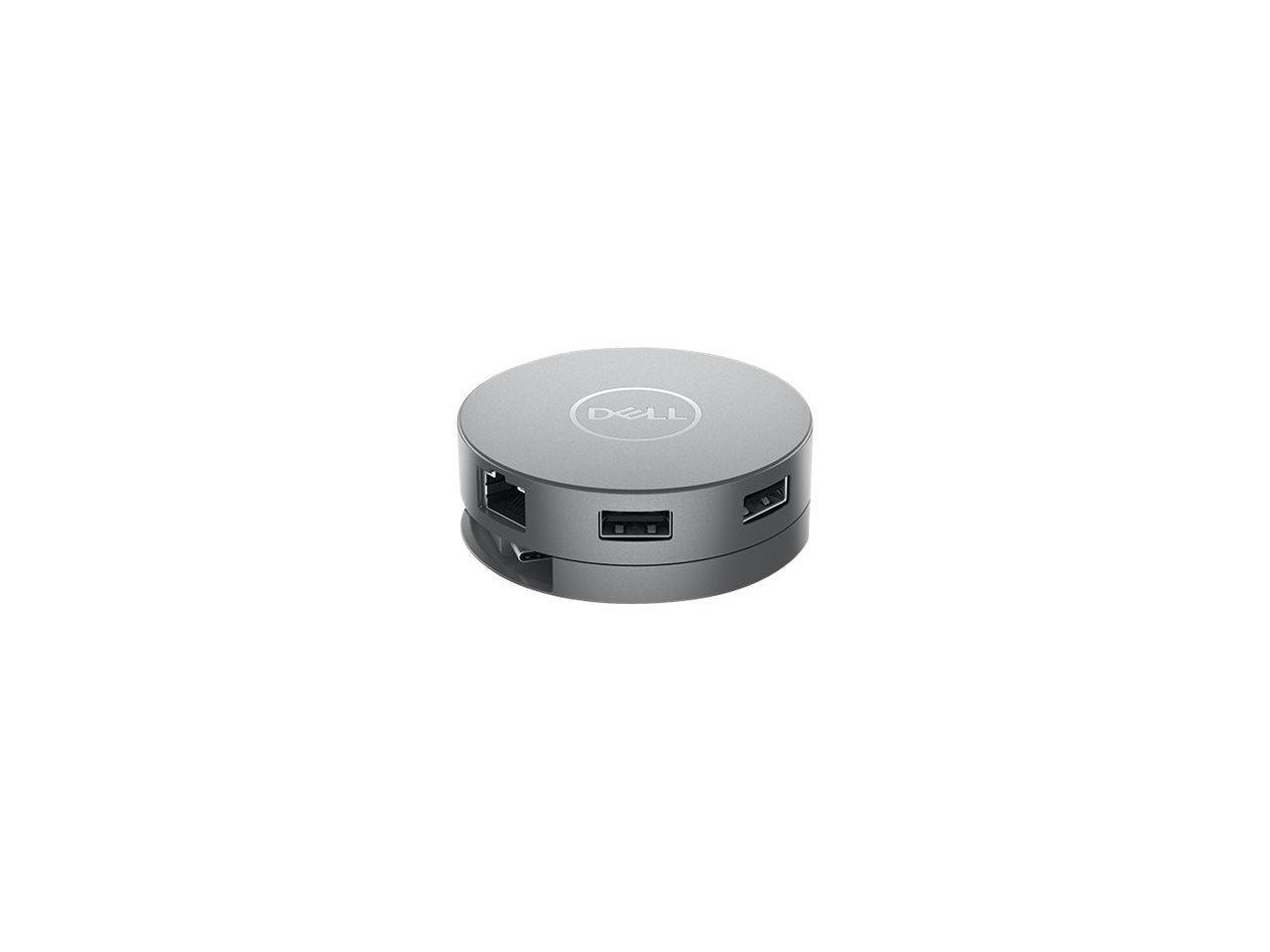

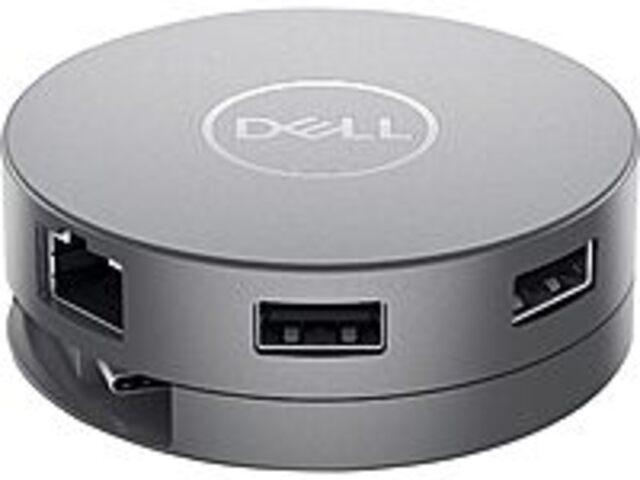

Widest variety of ports: Featuring the widest range of ports available that includes 2 USB-A ports, 1 USB-C¹, 1 HDMI, 1 DisplayPort, 1 VGA and 1 RJ-45 port. The mobile adapter offers seamless connectivity to various devices like monitors¹, projectors, headsets, keyboard, mouse, flash drives and other accessories.

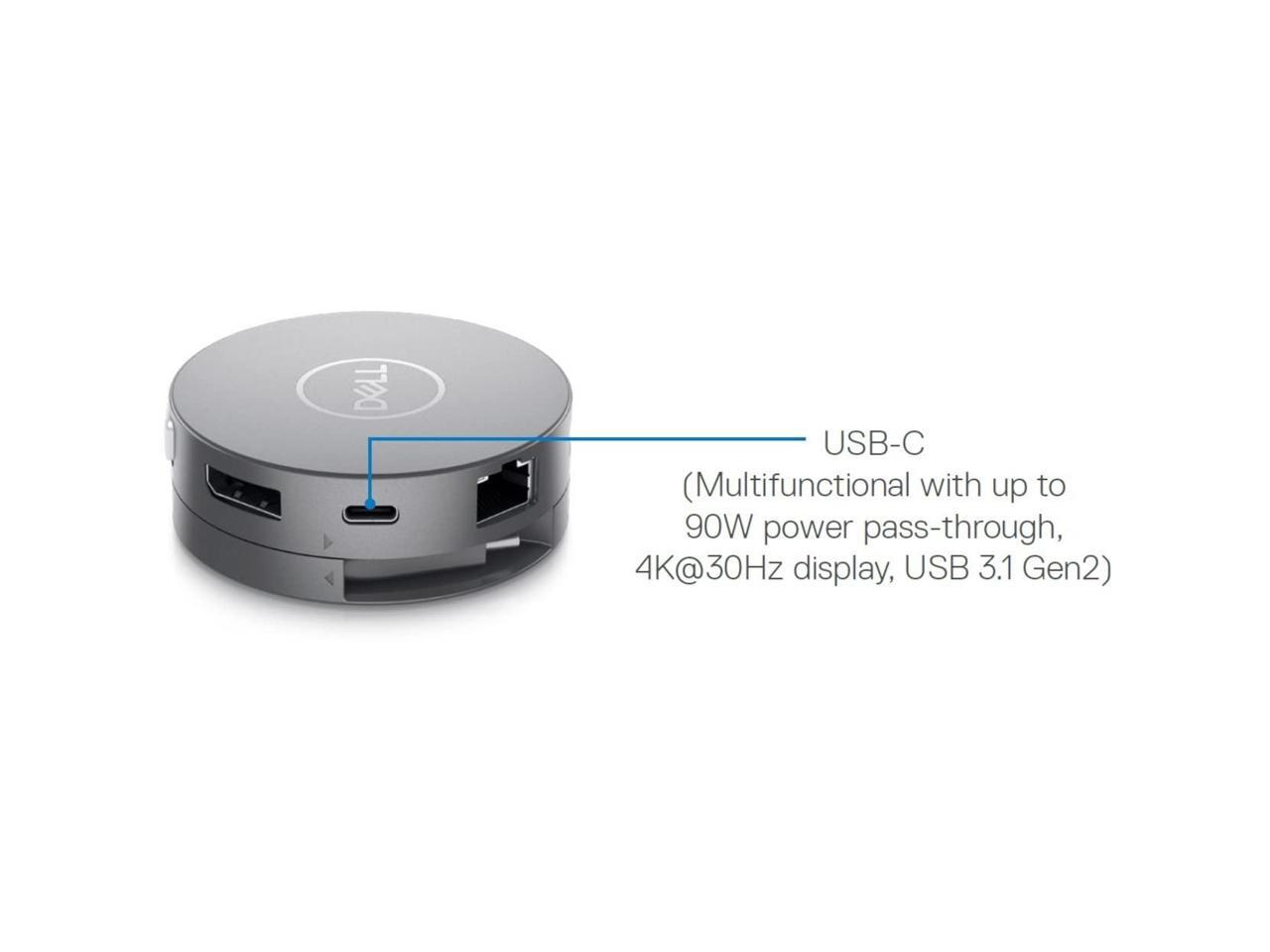

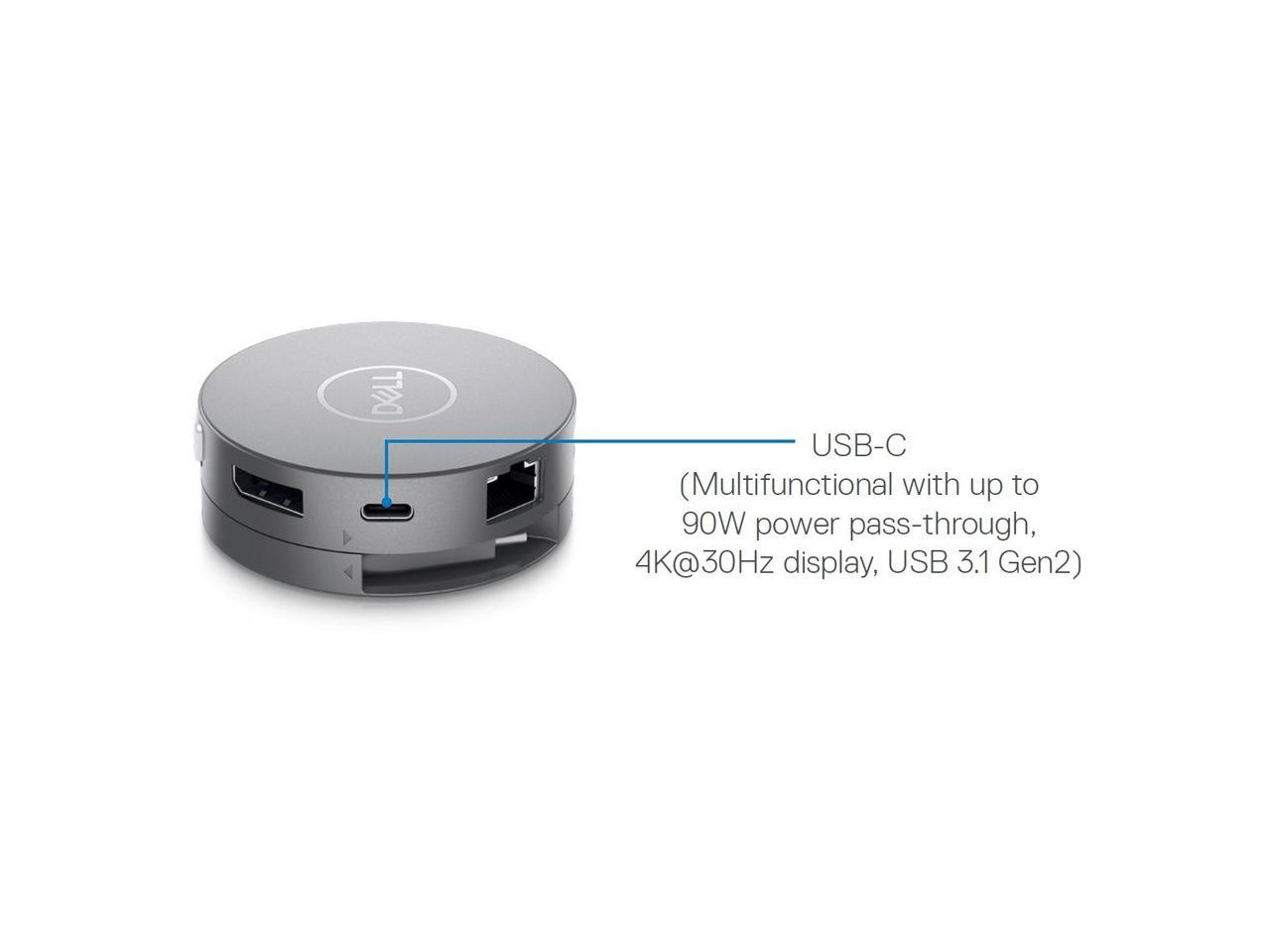

Multi-functional USB-C port: With a USB-C downstream port that supports power pass through, video and data, you can connect to a monitor at up to 4K resolution at 30 Hz, get up to SuperSpeed USB 10 Gbps data transfer and 90W power pass through² to your laptop.

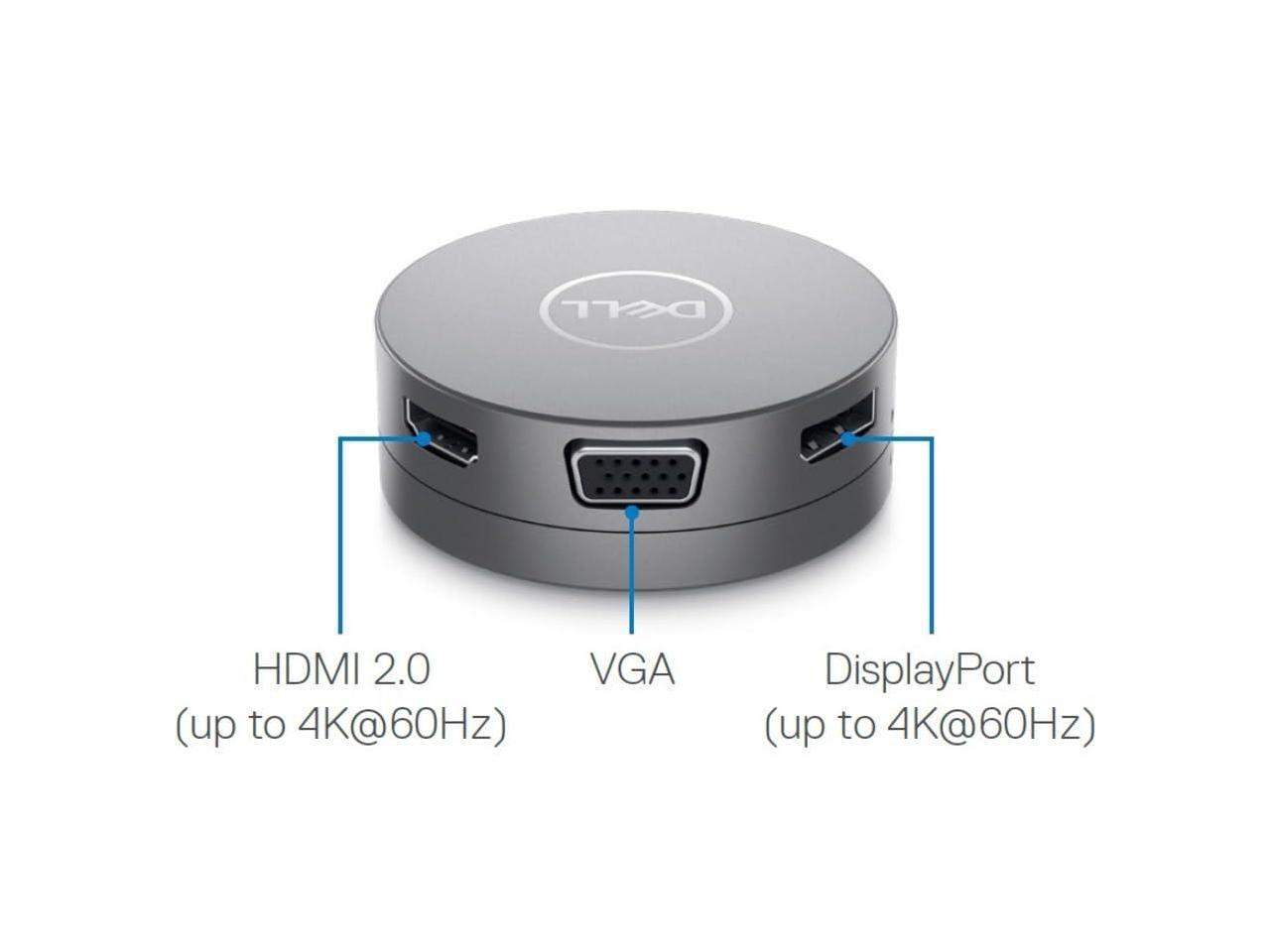

Crisp 4K resolution at 60 Hz: Connect to high-resolution displays without compromising on performance, as the adapter supports 4K resolution at 60 Hz³. Simply connect your monitor or projector to your PC via DisplayPort¹ or HDMI 2.0 port on your adapter.

SuperSpeed data transfers: Two USB-A and one USB-C downstream ports let you connect to other supported peripherals and enjoy fast file transfers up to 10 Gbps SuperSpeed.

Innovative patented design

The smallest and most compact 7-in-1 adapter, this portable multiport adapter has the most complete variety of ports offered in a USB-C adapter. Its patented design offers unique cable management, allowing you to extend and retract the cable when needed.

Lightweight and portable: The smallest and most compact 7-in-1 adapter that is just about the size of your palm, does not take up much space and easily fits in your pocket or bag.

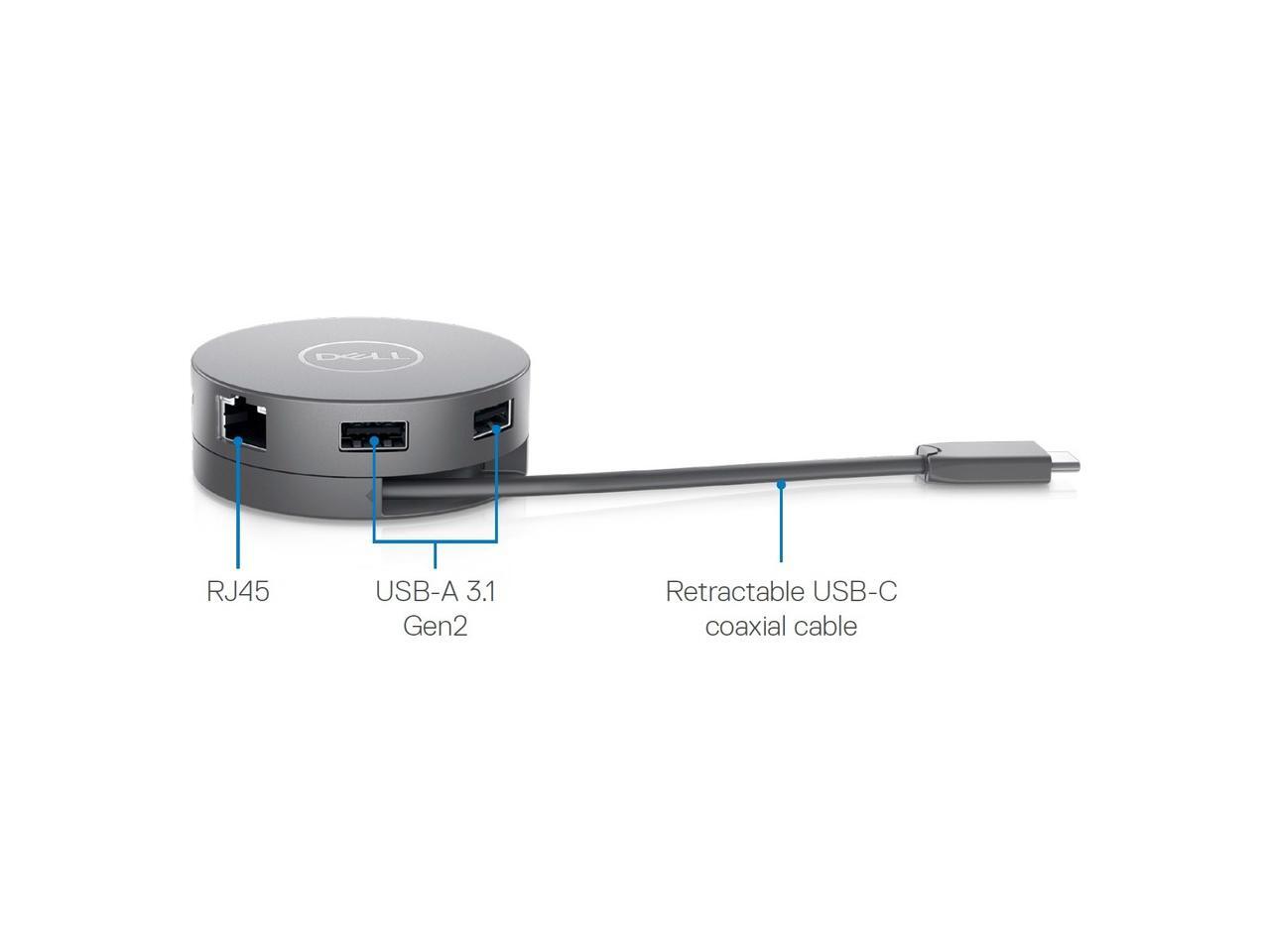

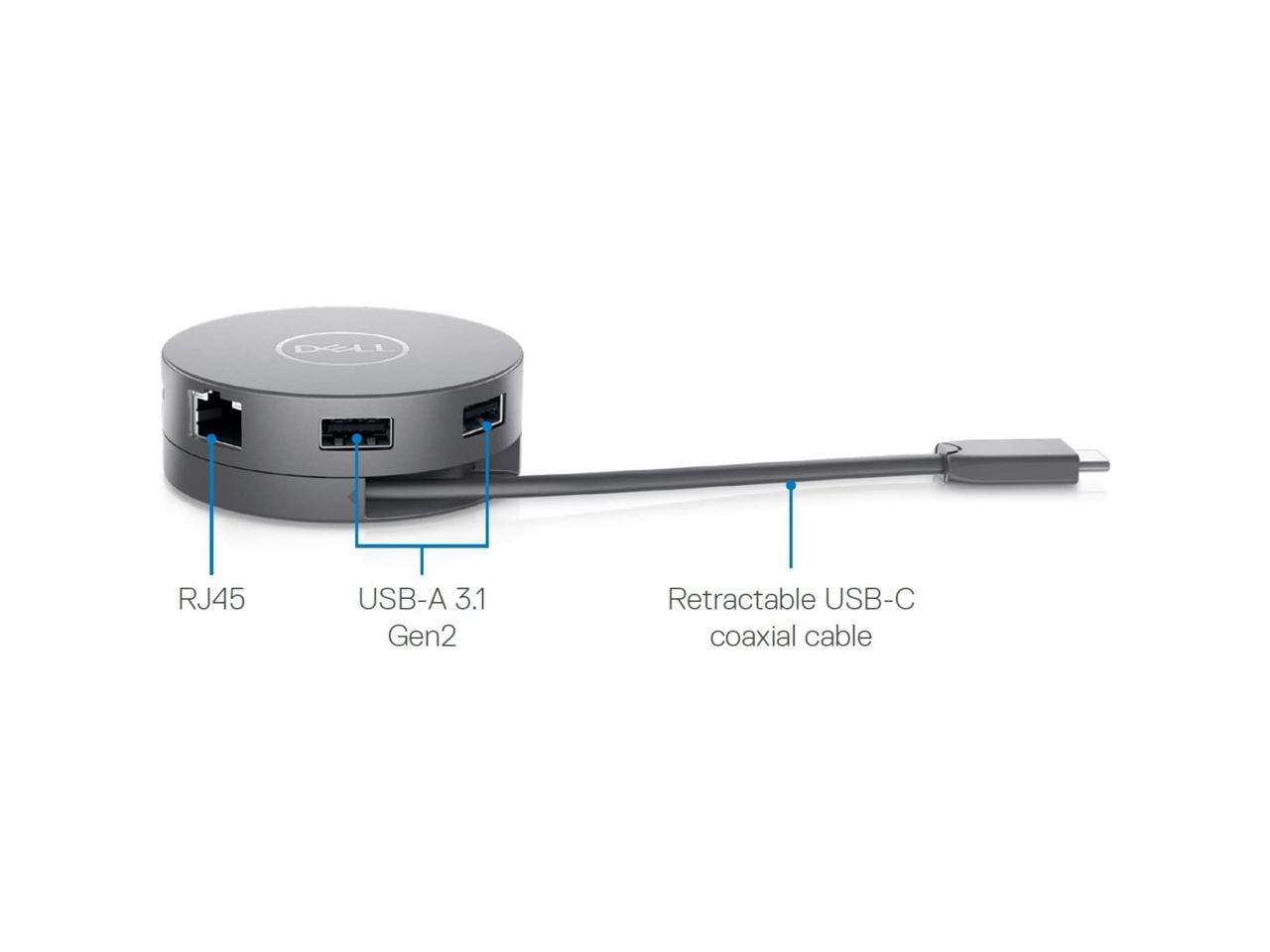

Flexible cable management: Experience unique cable management with its patented design that keeps the cable concealed and protected when not in use. Easily extend or retract the USB-C cable by rotating the top and bottom cover of the adapter.

Stable connection: Connect to various form factors from clamshells to 2-in-1s to detachables. The round coaxial cable offers enhanced signal quality for stable connectivity wherever your busy day takes you.

Highly reliable

Have uninterrupted video and internet even while plugging/unplugging your USB-C power source from the adapter. The adapter is widely compatible as it works with major operating systems and supports business class features when used with Dell PCs.

Stay productive: Fast Role Swap feature4 supported by the multiport adapter ensures that video and LAN connectivity is uninterrupted even if the USB-C power source is removed from the adapter.

Widely compatible: Compatible with a wide range of major operating systems including Windows10 64 Bit, MAC, Ubuntu, Chrome, and RHEL, the adapter offers seamless connectivity with just about any PC.

Supports business class features: The multiport adapter supports extensive enterprise level features such as MAC address pass through⁵, PXE Boot⁶ and Wake-On-LAN⁷.

Ports & Slots

Notes:

1. Only one video output is supported at a time by USB-C / HDMI / DisplayPort / VGA
2. Up to 90W can be used to charge your USB-C laptop from an external power source connected to DA310. Actual power supplied is dependent on your power source/platform power policy. Power adapter not included.
3. Available with select PC models (that support DisplayPort 1.4, HBR3) and when connected to displays that offer 4K resolution at 60Hz, with static HDR support. Dynamic HDR like HDR10/HDR10+/DolbyVision is excluded.
4. With systems BIOS that support Fast Role Swap.
5. MAC address pass through recognizes only a unique MAC address entered in the system’s BIOS by overriding the adapter MAC address every time your laptop is connected to the network, ensuring that your PC’s MAC address stays the same no matter which USB-C adapter you use.
6. Pre eXecution Environment Boot allows a computer to boot up from remote media when connected to the network with appropriate PXE server and OS image.
7. Starts your PC remotely using the signal over your wired network.
