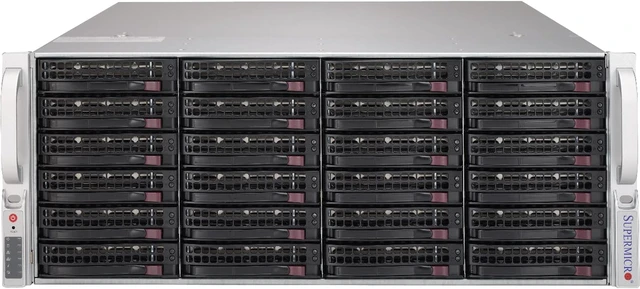

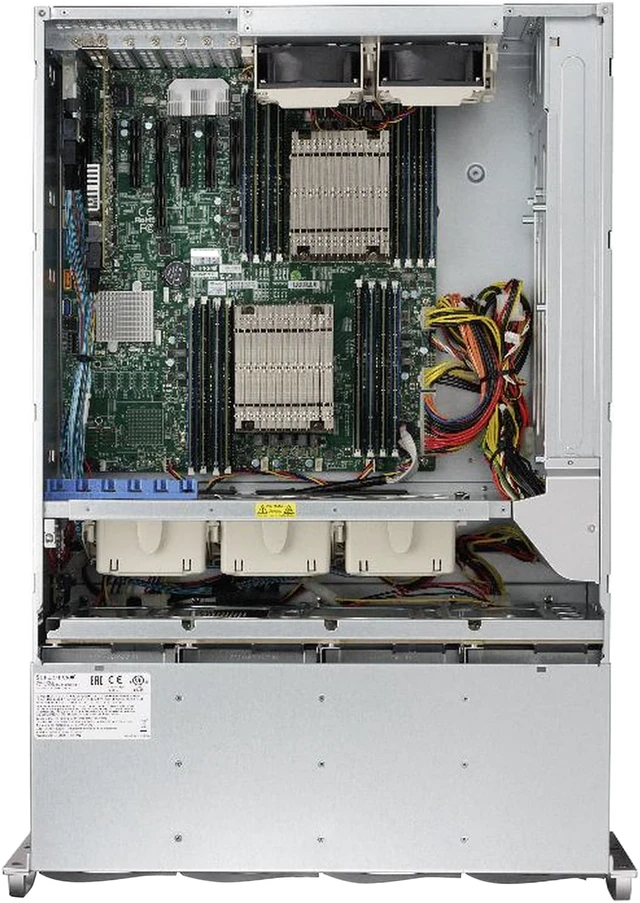

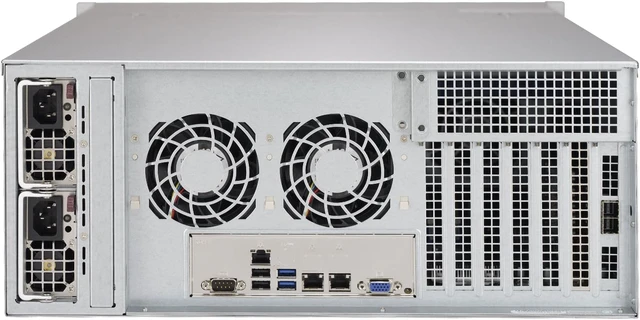

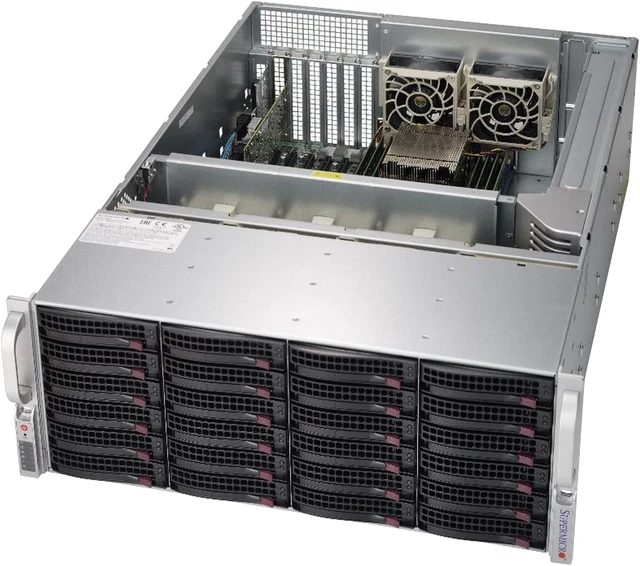

Supermicro Storage Server, 6049P-E1CR24H-OTO-12, 240TB SAS3 HDDs, 2 x Xeon Gold 5218, Memory 192GB

Dual Cascade Lake, Gold Level, 5218, 16 cores, 32 Threads, 2.3G
192GB (12 x 16GB)
SATA SSD, 240GB (1 x 240GB) for OS drive.
240TB Raw Storage, SAS 3 (24 x 10TB) for data drive.
Broadcom 3108 SAS3 AOC
2 x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
3 x Hot-swap 8cm redundant PWM cooling fans, 2 x hot-swap 8cm rear exhaust PWM fans PWM fans
1200W Redundant Power Supplies Titanium Level (96%)

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Supermicro System SSG-6049P-E1CR24H 4U Xeon LGA3647 DDR4 24x3.5Hot-swap 2TB Brown Box

Model
Brand	Supermicro
Model	SSG-6049P-E1CR24H

Interfaces
Port RJ-45	2 x RJ45 10GBase-T LAN ports 1 x RJ45 Dedicated IPMI LAN port
Port USB	4 x USB 3.0 ports (rear)

Configuration
Form Factor	4U
Processor	Dual Socket P (LGA 3647) 2nd Gen. Intel Xeon Scalable

Power
Power	1200W Redundant Power Supplies with PMBus

Features
Features	Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake / Skylake) 16 x DIMMs; up to 4TB 3DS ECC DDR4-2933 MHz RDIMM / LRDIMM, Supports Intel Optane DCPMM 3 x PCI-E 3.0 x16, 4 x PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port) 24 x Hot-swap 3.5" SAS3 / SATA3 drive bays; 2 x hot-swap 2.5" SATA3 drive bays (rear), 2 x M.2 NVMe, Expander based backplane Broadcom 3108 SAS3 AOC 2 x 10GBase-T LAN ports with Intel X722 + PHY Intel X557 Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN 3 x Hot-swap 8cm redundant PWM cooling fans, 2 x hot-swap 8cm rear exhaust PWM fans PWM fans 1200W Redundant Power Supplies Titanium Level (96%)

Dimensions & Weight
Dimensions	7.00" x 17.20" x 26.50"
Weight	55.00 lbs.

Additional Information
First Listed on Newegg	July 18, 2018
