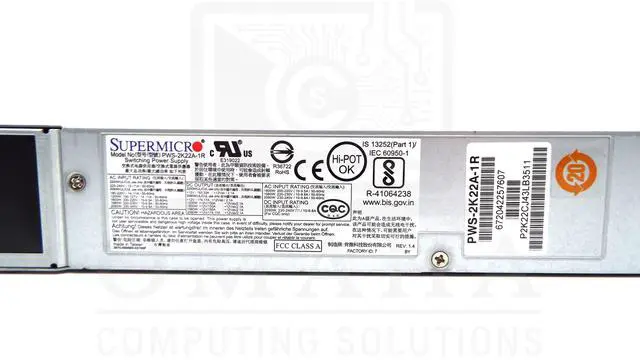

SUPERMICRO PWS-2K22A-1R 2200W 1U REDUNDANT SERVER POWER SUPPLY 80+ TITANIUM TESTED WORKING
REFURBISHED Product Type
- PRODUCT SPECIFICATIONS
- Manufacturer: Supermicro / Super Micro Computer, Inc.
- Model: PWS-2K22A-1R
- Product Type: Redundant Server Power Supply
- Form Factor: 1U
- Maximum Rated Output: Up to 2200W
- Efficiency Rating: 80 Plus Titanium
- Typical Efficiency: 96%+ at 230VAC
- Redundancy: Hot-Swappable, N+1
- Remote Management: PMBus 1.2 Compatible
- Output Voltage: +12V
- Standby Output: +12Vsb
- Input Frequency: 5060Hz
- Power Factor: 99% Typical
- Inrush Current: Less than 30A
- Output Connection: Server Backplane / Card-Edge Connection
- PSU Output Connector Specification: 4HP + 2LP + 20S
- Dimensions: 480mm L × 45mm W × 40mm H
- MTBF: Greater than 200,000 Hours at 25°C
- Operating Temperature: 0°C to 50°C
- Operating Humidity: 20%90% RH, Non-Condensing
- Protection: OCP, OVP, Short Circuit, Over-Temperature, Input Under-Voltage
- Regulatory / Safety: UL, cUL, EN/IEC 60950-1, CE, BSMI, CQC
- Environmental Compliance: RoHS / REACH
- Testing: Tested Working
- POWER OUTPUT BY INPUT VOLTAGE
- 100127VAC: Up to 1200W
- 200220VAC: Up to 1800W
- 220230VAC: Up to 1980W
- 230240VAC: Up to 2090W
- 220240VAC: Up to 2200W under specified UL/cUL configuration
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The Supermicro PWS-2K22A-1R is a high-efficiency 2200W redundant hot-swappable power supply designed for compatible Supermicro 1U server systems. Its 80 PLUS Titanium certification delivers excellent energy efficiency, reduced power loss, and dependable performance for demanding enterprise, data-center, and high-performance computing environments.
This power supply has been tested and confirmed to be in working condition. It is sold individually and is intended as a replacement or spare power supply module. Please verify your server chassis, power distribution board, and input-voltage requirements before purchasing.
Key Features:
Manufacturer: Supermicro
Model: PWS-2K22A-1R
Maximum Output Power: 2200W
Form Factor: 1U redundant power supply module
Efficiency Rating: 80 PLUS Titanium
Installation Type: Hot-swappable
Application: Enterprise servers, data centers, HPC systems, and redundant-power configurations
Condition: Grade A
Testing: Tested and confirmed working
Quantity Included: One power supply module
Compatibility: Select Supermicro server chassis and power distribution systems
Package Includes:
1 × Supermicro PWS-2K22A-1R 2200W Power Supply
Power cord, server chassis, and additional accessories are not included unless specifically shown or stated. Compatibility is the buyers responsibility; match the exact model number before ordering.
