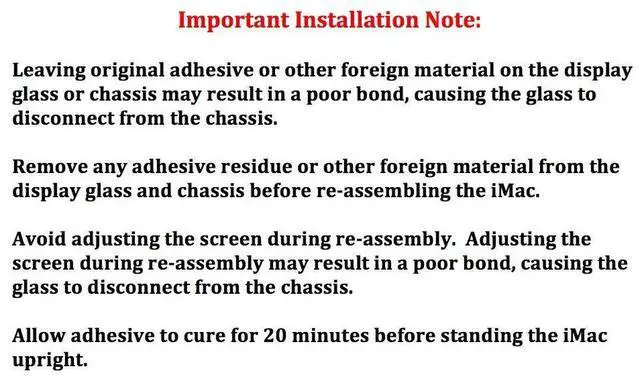

Important Installation Note:
Leaving original adhesive or other foreign material on the display glass or chassis may result in a poor bond, causing the glass to disconnect from the chassis.
Remove any adhesive residue or other foreign material from the display glass and chassis before re-assembling the iMac.
Avoid adjusting the screen during re-assembly. Adjusting the screen during re-assembly may result in a poor bond, causing the glass to disconnect from the chassis.
Allow adhesive to cure for 20 minutes before standing the iMac upright.

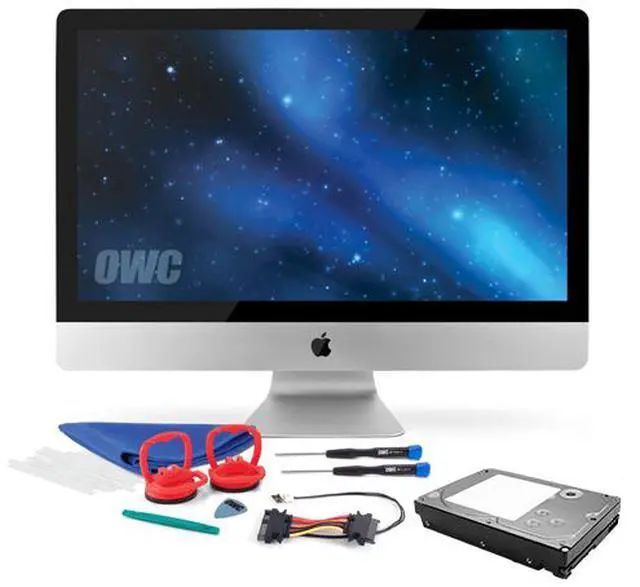

OWC 2.0TB HDD Upgrade Kit For All 2012 and Later 27" iMac models
Complete DIY kit for upgrading the hard drive in your 2012 and later 27" iMac

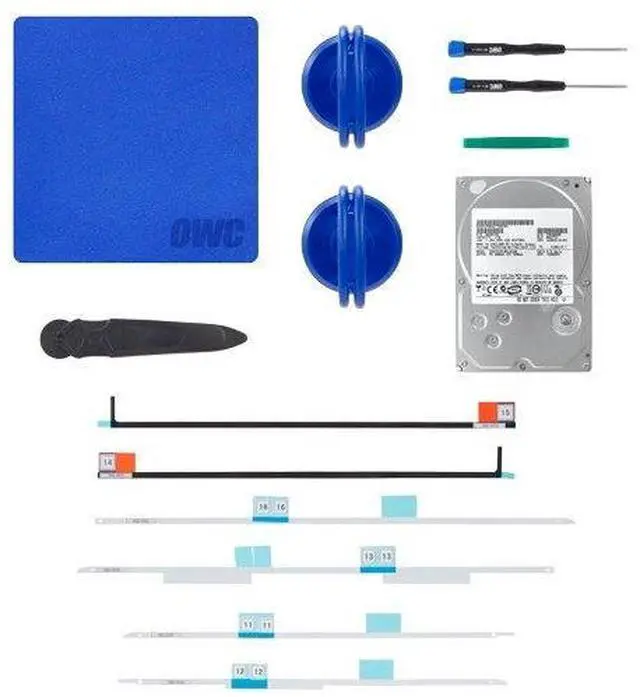

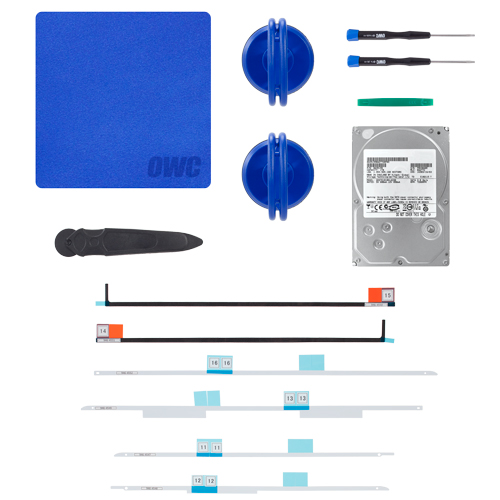

Includes
- (1) High-capacity HDD
- (1) OWC In-line Digital Thermal Sensor Cable
- (2) OWC 2-1/4" Suction Cup
- (1) Torx T10 driver
- (1) Torx T8 driver
- (1) 27" iMac Adhesive tape set for proper display resealing
- (1) Nylon Pry Tool (Spudger)
- (1) OWC Screen Removal Tool
- (1) OWC Blue Microfiber Screen Cleaning Cloth

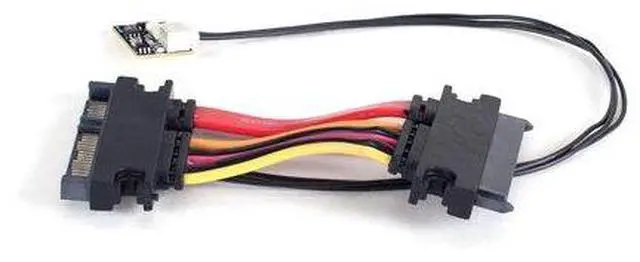

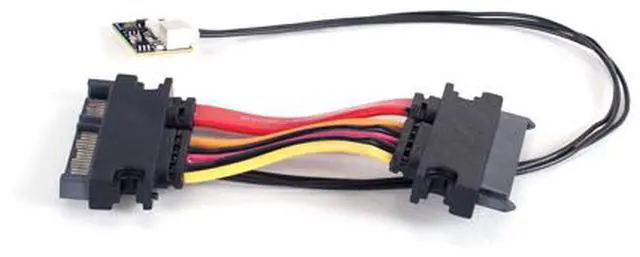

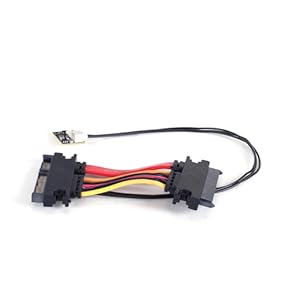

OWC's in-line solution is the only hardware digital thermal sensor on the market allowing a third-party SATA drive to be installed in your iMac. A convenient, plug-and-play cable, the In-line Digital Thermal Sensor eliminates fan noise and maintains proper system fan control through the iMac's System Management Controller. This innovative device is designed specifically for the iMac, requires no software hacks and ensures compatibility with Apple's built-in diagnostic processes.
Compatible with:
- iMac w/Retina 5K display (27-inch Mid 2017) Model ID:iMac18,3 (3.4GHz i5, 3.5GHz i5, 3.8GHz i5, 4.2GHz i7)
- iMac w/Retina 5K display (27-inch Late 2015) Model ID:iMac17,1 (3.2GHz i5, 3.3GHz i5, 4.0GHz i7
- iMac w/Retina 5K display (27-inch Mid 2015) Model ID: iMac15,1 (3.3GHz i5, 3.5GHz i5, 4.0GHz i7)
- iMac w/Retina 5K display (27-inch Late 2014) Model ID: iMac15,1 (3.5GHz i5, 4.0GHz i7)
- iMac (27-inch Late 2013) (September, 2013) Model ID: iMac14,2 (3.2GHz i5, 3.4GHz i5, 3.5GHz i7)
- iMac (27-inch Late 2012) Model ID: iMac13,2 (2.9GHz i5, 3.2GHz i5, 3.4GHz i7)

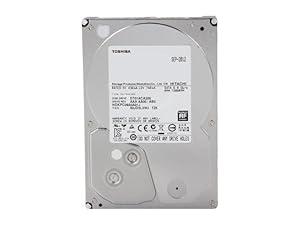

2.0TB Toshiba DT01ACAxx Series Specifications:
Specifications Form Factor: 3.5? HDD
Interface: SATA 6GB/s
Capacity: 2.0TB
Formatted Capacity: 1862GiB
Rotational Speed: 7,200 RPM
Cache / Data Buffer: 64MB
Format: Unformatted
Physical Height (max): 26.1mm (1.03?)
Width (max): 101.6mm (4.00?)
Length (max): 147mm (5.79?)
Weight (typical): 680g (1.499 lbs.) Transfer Rate (Max): 6 Gb/sec
Track-to-track Seek: 0.5ms
Power
Read Power
- 6.4 Watts
- 6.4 Watts
- 5.2 Watts
- 1.0 Watts
- 1.0 Watts
Important Installation Note:
Leaving original adhesive or other foreign material on the display glass or chassis may result in a poor bond, causing the glass to disconnect from the chassis.
Remove any adhesive residue or other foreign material from the display glass and chassis before re-assembling the iMac.
Avoid adjusting the screen during re-assembly. Adjusting the screen during re-assembly may result in a poor bond, causing the glass to disconnect from the chassis.
Allow adhesive to cure for 20 minutes before standing the iMac upright.
OWC 2.0TB HDD Upgrade Kit For All 2012 and Later 27" iMac models
Complete DIY kit for upgrading the hard drive in your 2012 and later 27" iMac
Includes
- (1) High-capacity HDD
- (1) OWC In-line Digital Thermal Sensor Cable
- (2) OWC 2-1/4" Suction Cup
- (1) Torx T10 driver
- (1) Torx T8 driver
- (1) 27" iMac Adhesive tape set for proper display resealing
- (1) Nylon Pry Tool (Spudger)
- (1) OWC Screen Removal Tool
- (1) OWC Blue Microfiber Screen Cleaning Cloth
OWC's in-line solution is the only hardware digital thermal sensor on the market allowing a third-party SATA drive to be installed in your iMac. A convenient, plug-and-play cable, the In-line Digital Thermal Sensor eliminates fan noise and maintains proper system fan control through the iMac's System Management Controller. This innovative device is designed specifically for the iMac, requires no software hacks and ensures compatibility with Apple's built-in diagnostic processes.
Compatible with:
- iMac w/Retina 5K display (27-inch Mid 2017) Model ID:iMac18,3 (3.4GHz i5, 3.5GHz i5, 3.8GHz i5, 4.2GHz i7)
- iMac w/Retina 5K display (27-inch Late 2015) Model ID:iMac17,1 (3.2GHz i5, 3.3GHz i5, 4.0GHz i7
- iMac w/Retina 5K display (27-inch Mid 2015) Model ID: iMac15,1 (3.3GHz i5, 3.5GHz i5, 4.0GHz i7)
- iMac w/Retina 5K display (27-inch Late 2014) Model ID: iMac15,1 (3.5GHz i5, 4.0GHz i7)
- iMac (27-inch Late 2013) (September, 2013) Model ID: iMac14,2 (3.2GHz i5, 3.4GHz i5, 3.5GHz i7)
- iMac (27-inch Late 2012) Model ID: iMac13,2 (2.9GHz i5, 3.2GHz i5, 3.4GHz i7)
2.0TB Toshiba DT01ACAxx Series Specifications:
Specifications Form Factor: 3.5? HDD
Interface: SATA 6GB/s
Capacity: 2.0TB
Formatted Capacity: 1862GiB
Rotational Speed: 7,200 RPM
Cache / Data Buffer: 64MB
Format: Unformatted
Physical Height (max): 26.1mm (1.03?)
Width (max): 101.6mm (4.00?)
Length (max): 147mm (5.79?)
Weight (typical): 680g (1.499 lbs.) Transfer Rate (Max): 6 Gb/sec
Track-to-track Seek: 0.5ms
Power
Read Power
- 6.4 Watts
- 6.4 Watts
- 5.2 Watts
- 1.0 Watts
- 1.0 Watts
-
