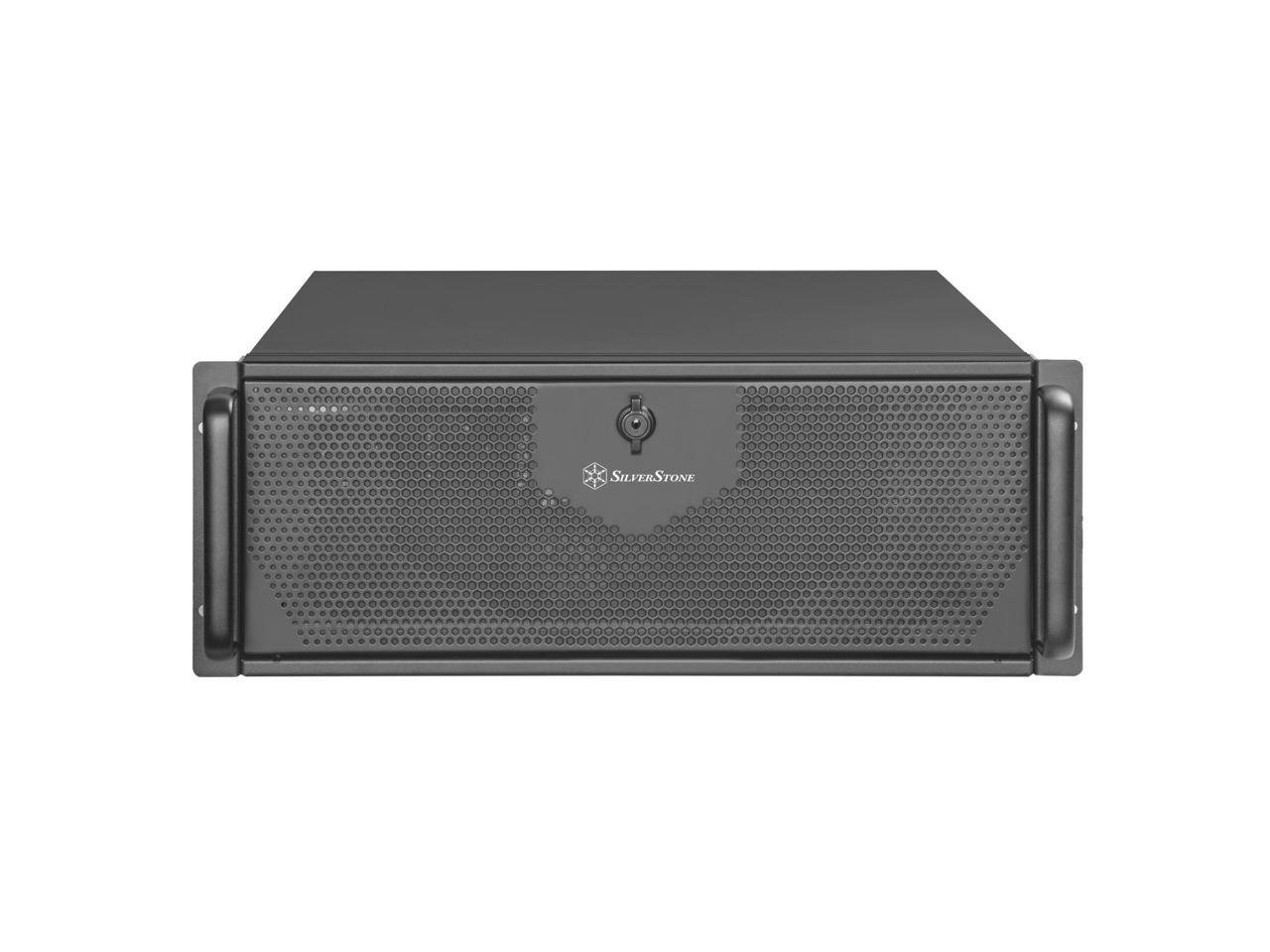

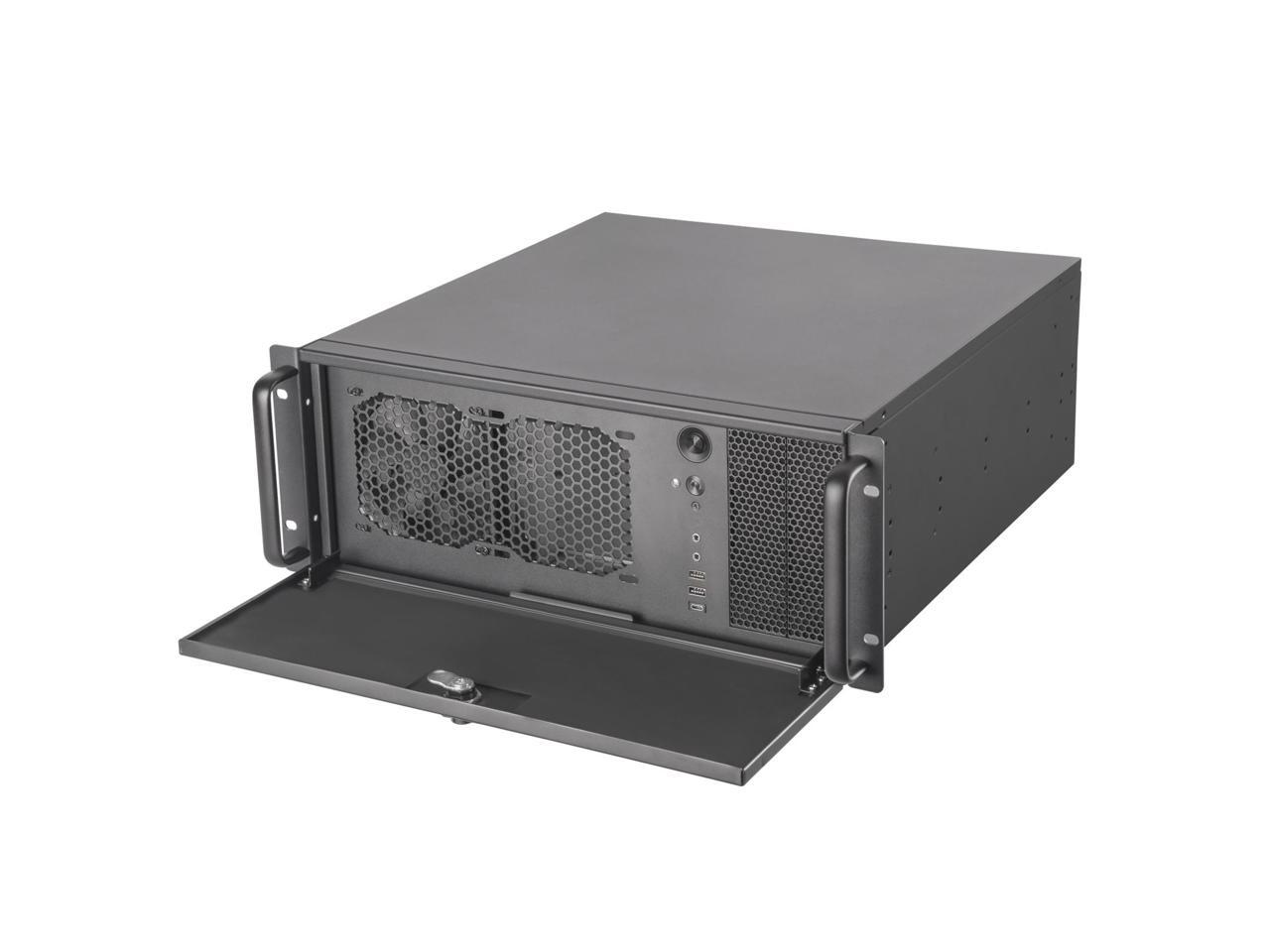

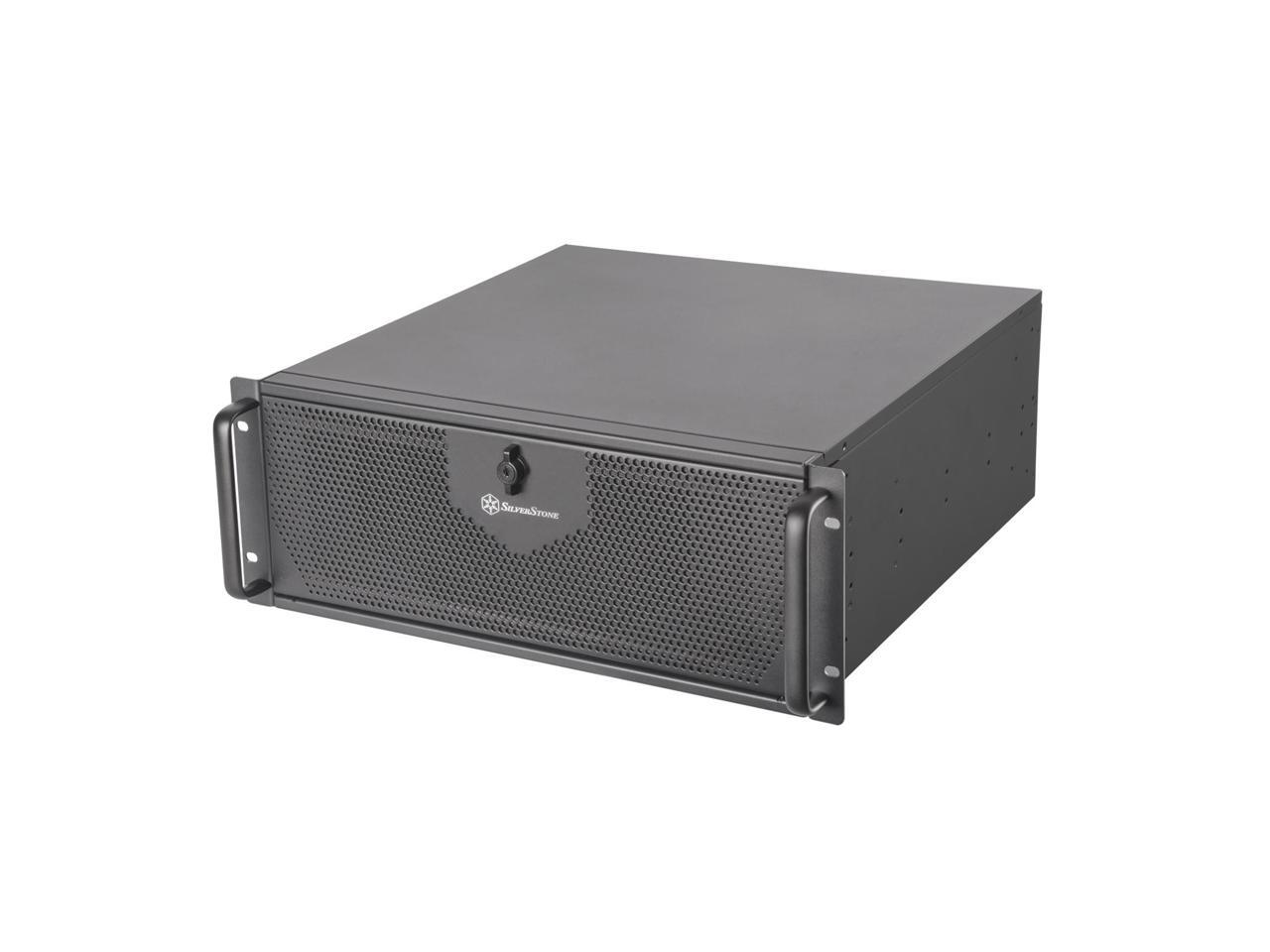

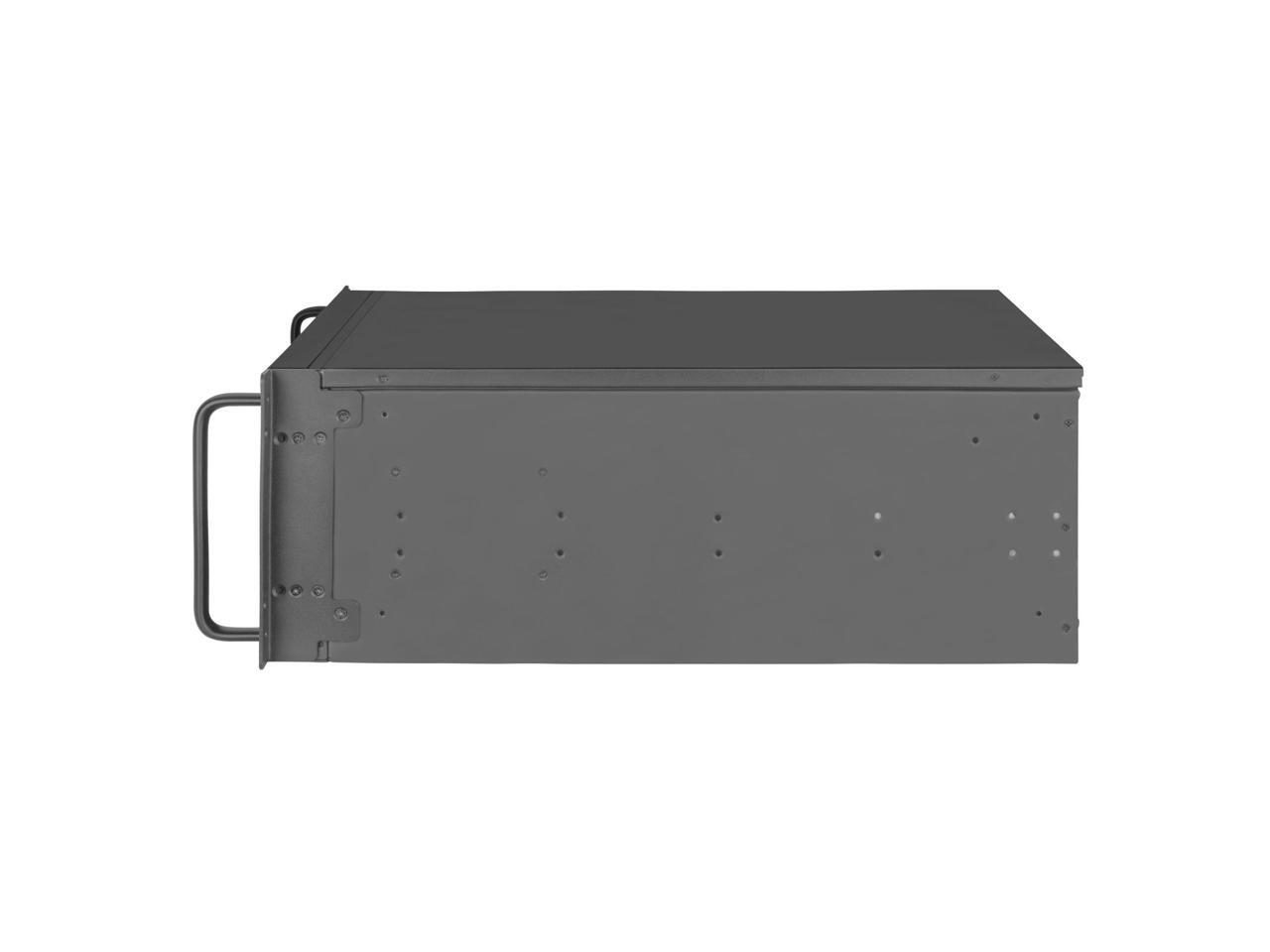

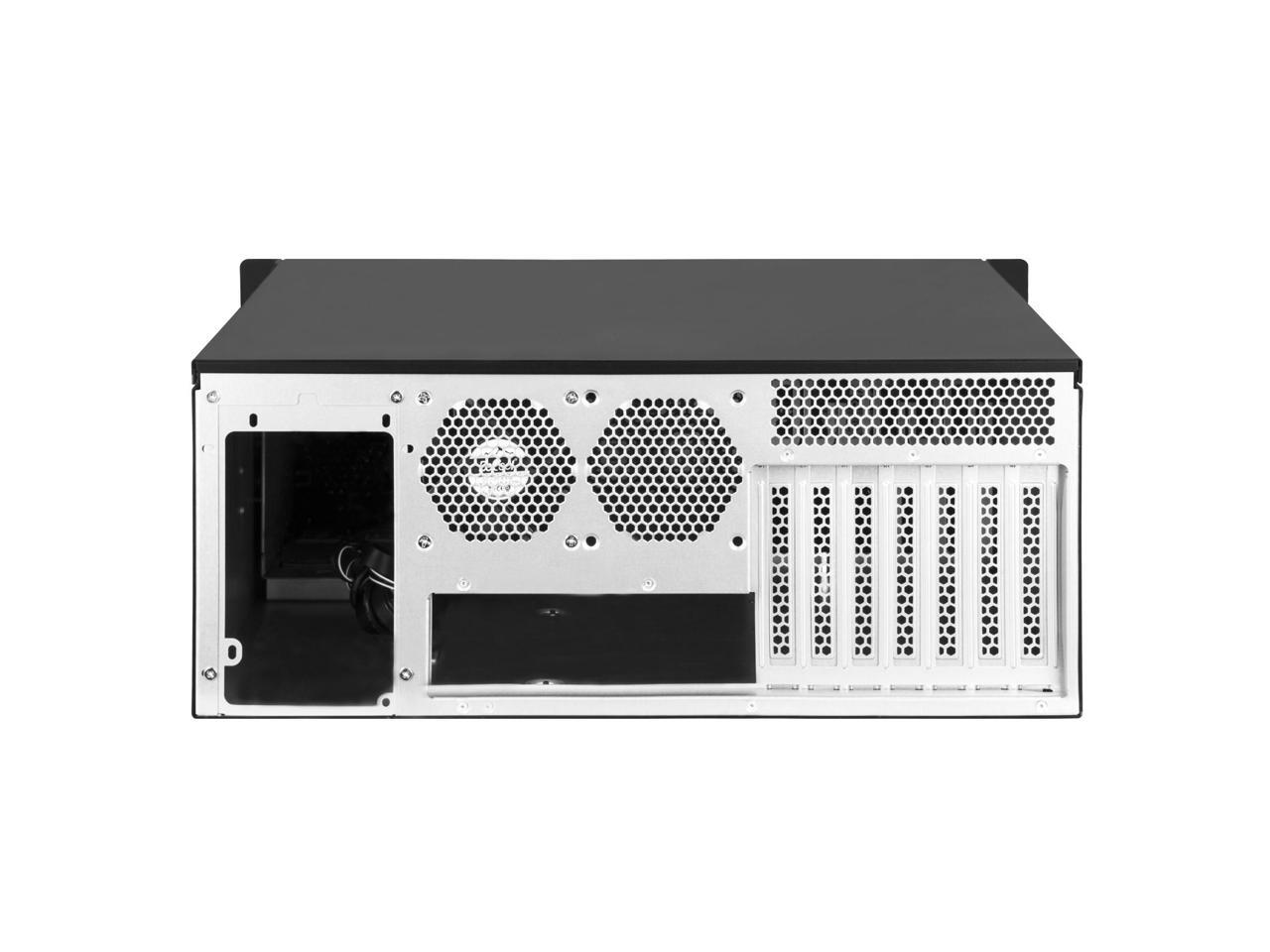

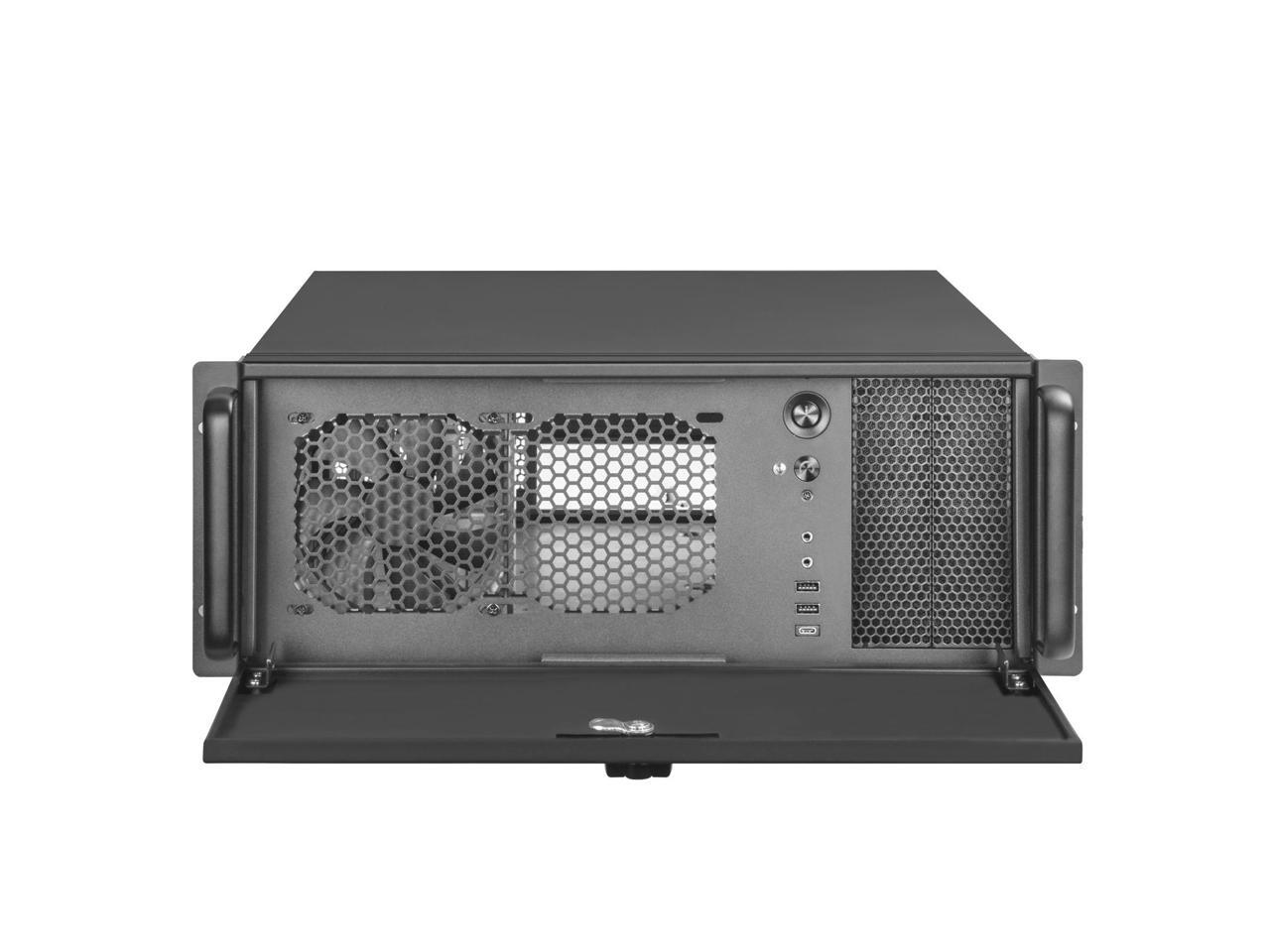

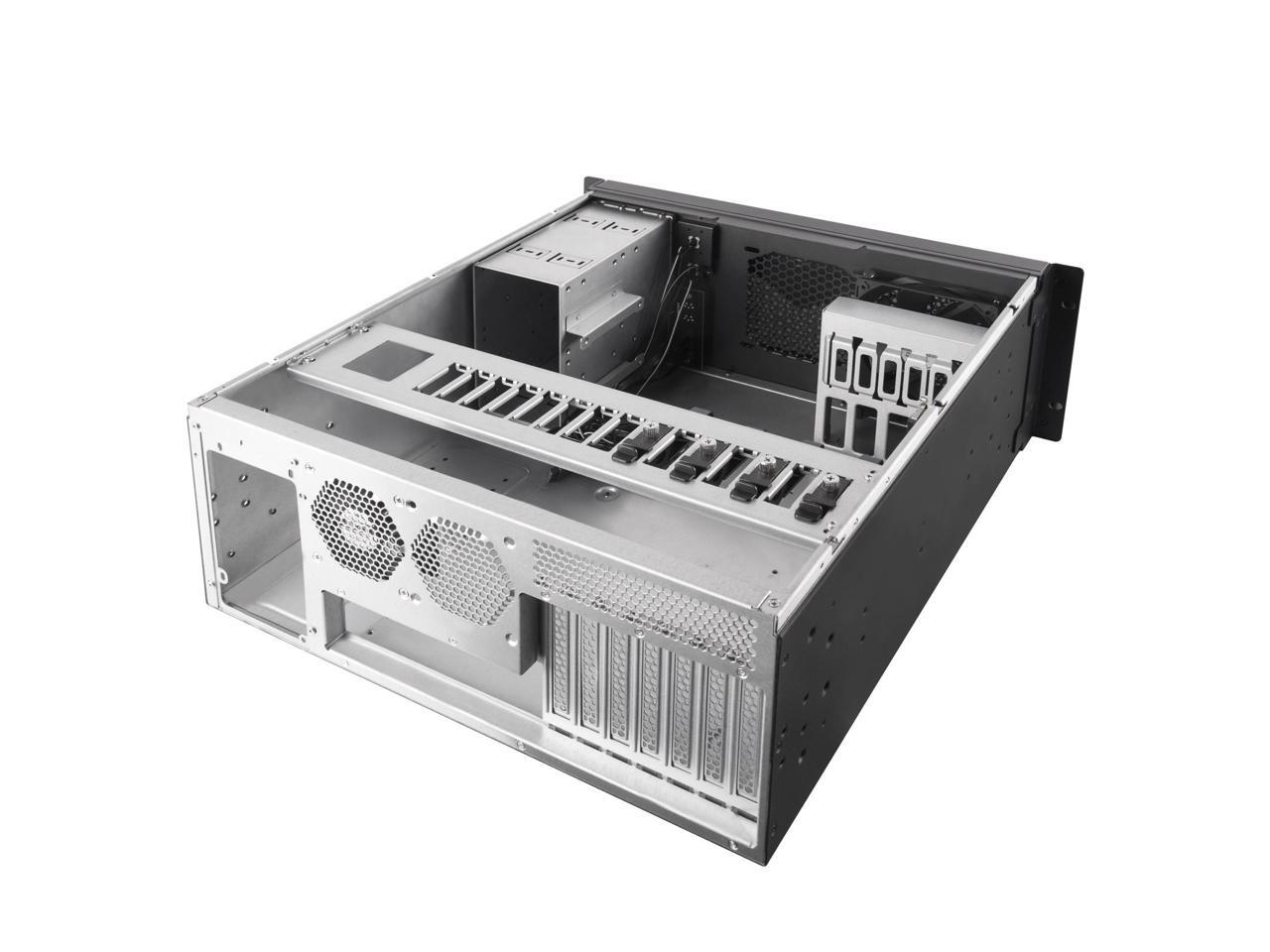

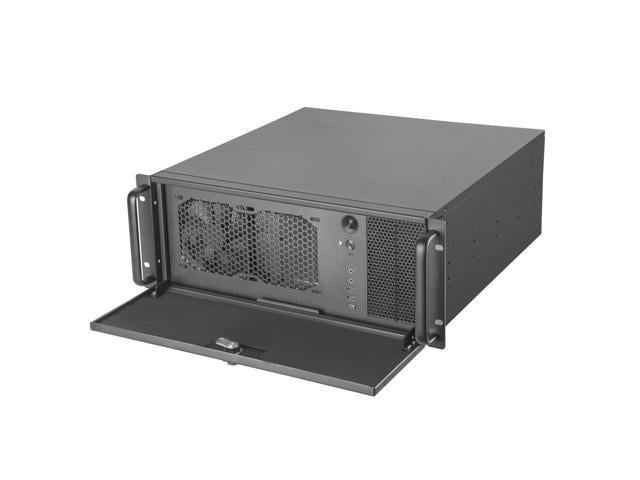

RM42-502, 4U rackmount server chassis with liquid cooling compatibility
- Supports up to SSI-EEB motherboards
- Front panel features anti-theft lock design providing additional security
- Supports 240mm liquid cooling radiators
- Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
- Includes one USB Type-C interface
- Includes sliding rail mounting holes for quick rail installation
- Can be placed upright or horizontal
Product Specifications
| Model No. | SST-RM42-502B (Black) |
|---|---|
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bay | External -5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2), Internal - 2.5" x 1 |
| Cooling system | Front - 120mm x 2 (120mm x 1 fan included),Rear - 80mm x 2 (80mm x 1 fan included) |
| Limitation of CPU cooler | w/ GPU holder: 130mm, w/o GPU holder: 148mm |
| Front I/O Port | USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1 |
| Dimension | 430mm (W) x 176mm (H) x 468mm (D) |
| Chassis form factor | 4U |
|---|---|
| Material | Steel |
| Power Supply | PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant |
| Radiator support | Front - 120mm x 2 / 240mm x 1 |
| Expansion Slot | 7 |
| LED indicator | Power status x 1, HDD activity x 1 |
| Extra | Side switch for chassis intrusion security |
Expansion card
- Length w/ expansion card retainer: 337mm
- Length w/o expansion card retainer: 426mm
- Width w/ GPU holder: 116mm
- Width w/o GPU holder: 154mm
*RM42-502 has 2 rows of sliding rail mounting holes, if you wish to position the chassis in a positive U position, please install the rails on the lower row of the mounting holes
