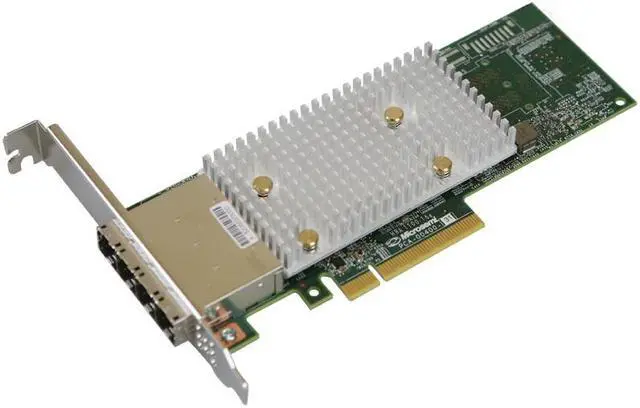

Adaptec CC 2293600-R HBA 1100-16e

Microsemi 12 GbPS 16 external Port Host Bus Adapter delivers up to 1.5M IOPs and offering significant power savings.

• Connectors: 4 x SFF-8644
• RAID Levels: NA
• Interface: 8-Lane PCIe Gen3
• Ports: 6 External
• Form Factor: Low-profile MD2

Operating System

• Microsoft Windows
• Red Hat Linux
• SUSE Linux
• CentOS
• Ubuntu Linux
• VMware ESXi

CPU Architecture: Intel, AMD, Cavium ThunderX2 (ARM)

Benefits: Ideal for high performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity.

Key Differentiators: Ideal for high-performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity
Customer Needs: Provides I/O connectivity that offers the highest bandwidth, lowest latency, and highest I/O performance, paired with broad operating system support, including 12 Gbps and 6 Gbps SATA systems

Key Software Features

• Support for up to 256 SAS/SATA target devices (238 SSD/HDDs maximum support and remainder are reserved for expanders and enclosure management)
• Multi-LUN support
• SAS expander support
• TLR
• SATA NCQ
• Hot Plug Drive
• S.M.A.R.T.
• MPIO
• Multi-Initiator for SAS
• Enclosure Management
• SES-2, SES-3
• SFF-8485, SGPIO
• SFF-8489, IBPI
• BMC Support

Management Utilities
maxView Storage Manager

• Web based GUI Management utility
• OS Support: Windows, Linux, VMware
• Remote configuration, monitoring & notification
• Remote firmware updates
• SMI-S Support
• SMTP

ARCCONF

• Command-line interface

BIOS Configuration Utility (CTRL+A)

• Legacy configuration utility
• Flashable BIOS support

uEFI BIOS Configuration Utility

• Flashable BIOS support
• HII GUI support

ROM-based uEFI BIOS Configuration Utilities

• HII-based pre-boot GUI configuration utility
• Arcconf CLI for uEFI shell
• Flashable BIOS support

Data Transfer Rate

• 12 Gbps per port

Form Factor

• Low Profile, MD2

Connector Configuration

• Four external mini SAS HD (SFF-8644)

Package Contents

• Microsemi Adaptec HBA 1100-16e adapter
• Additional low profile vented bracket

Physical Size: 2.535"H x 6.6"L (64mm x 167mm)

Operating Temperature

• 0°C to 55°C* with 200 LFM airflow. Note: This adapter contains a powerful IO processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with at least 200 LFM airflow.
• *Temperature measured 1 inch from adapter.

Regulatory Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental Compliance: RoHS
Mean Time Before Failure (MTBF): 2 million hours
Warranty: 3 years
