Type | Wired |
---|
Form Factor | Desktop |
---|
Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
---|
Protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
---|
Security | Security Services Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists Comprehensive Anti-Spam Service Application Visualization Application Control Capture Advanced Threat Protection |
---|

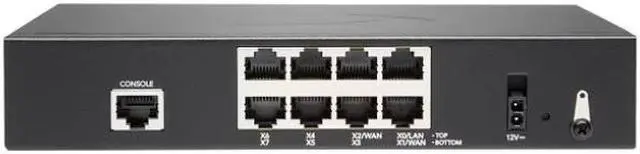

Ports | 8x1GbE, 2 USB 3.0, 1 Console |
---|
Simultaneous Sessions | 900000 |
---|
Maximum Users | 1000+ |
---|
VPN | Site-to-site VPN tunnels: 100 IPSec VPN clients (maximum:) 5 (200) SSL VPN licenses (maximum): 2 (100) Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange: Diffie Hellman Groups 1, 2, 5, 14v Route-based VPN: RIP, OSPF, BGP Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN Global VPN client platforms supported: Microsoft®, Windows 10 NetExtender: Microsoft®, Windows 10, Linux Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10
Firewall / VPN Performances Firewall inspection throughput: 3 Gbps Threat prevention throughput: 1 Gbps Application inspection throughput: 1.5 Gbps IPS throughput: 1.5 Gbps Anti-malware inspection throughput: 1 Gbps TLS/SSL inspection and decryption throughput (DPI SSL): 500 Mbps IPSec VPN throughput: 1.38 Gbps Connections per second: 9,000 Maximum connections (SPI): 900,000 Maximum connections (DPI): 200,000 Maximum connections (DPI SSL): 30,000 |
---|
Certifications | Granted: FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware |
---|
Compliance | FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC MSIP, ANATEL |
---|
Power Input | 100 - 240 VAC, 50-60 Hz, 3A |
---|
Max Power Consumption | 16.84W |
---|
