Please note: Packing list is not include any SSD/HDD and other spare parts. Only the Expansion card 1.
Product Name: PCI-E 4X TO NGFF 2B/1M KEY Riser

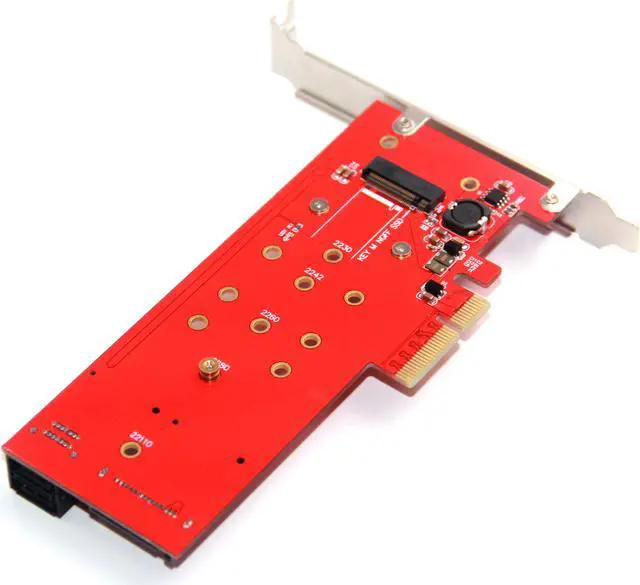

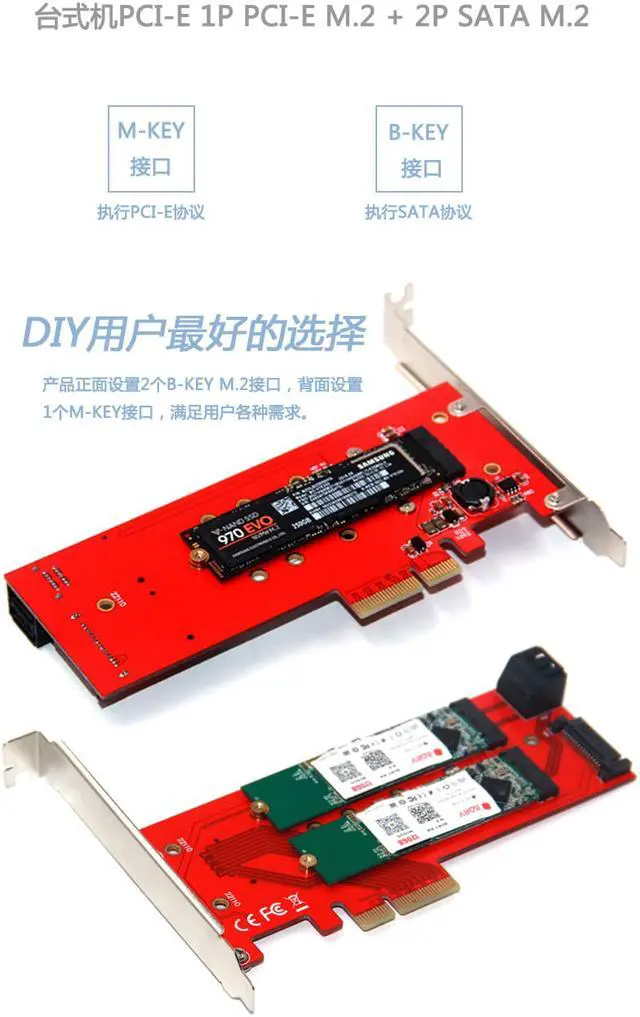

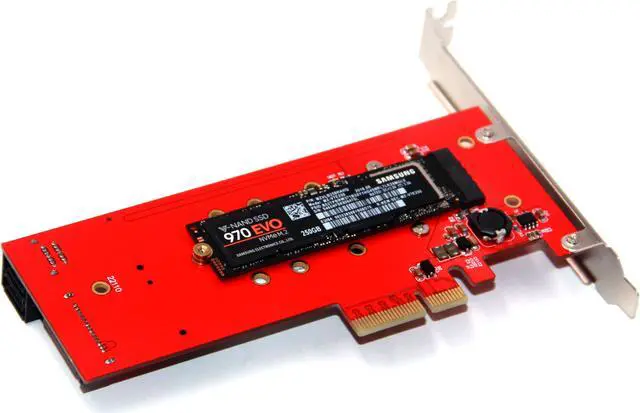

Product Description: LM-110N is a multi-interface M. 2 solid state drive adapter. This product with one M. 2 M-KEY interface (PCIe protocol) and two M. 2 B-KEY interfaces (SATA protocol), which can easily expand an NVMe solid state system disk or an M. 2 SATA system disk for your computer. This product is reserved with an external power interface. 3pcs M. 2 interfaces can be connected to the SSD hard disk at the same time. When the SSD hard disk Excessive Power Consumption and the computer is not Recognized., it can be connected to the external power supply for increase the power supply. When the Main Board's power supply is sufficient, don't need connect an external power supply. 3.

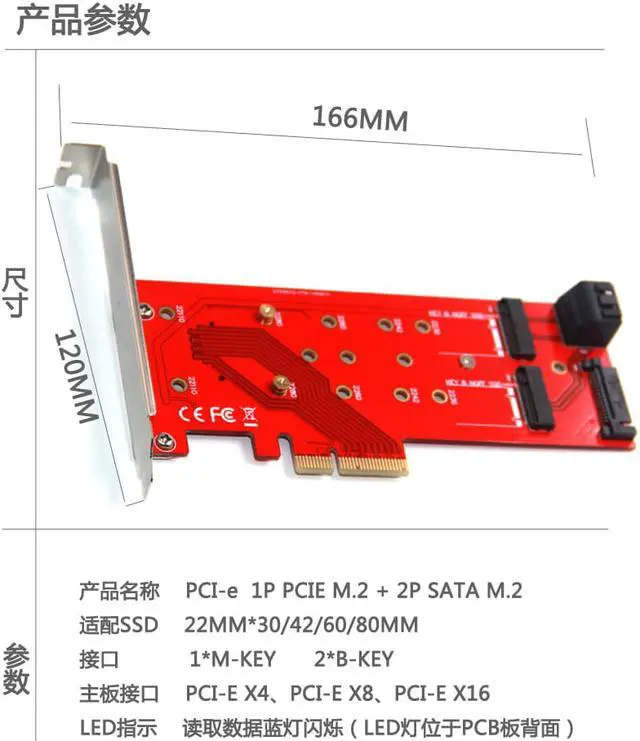

Product Size Chart: 166mm*120mm 4.
Product Features: *Multi-interface, can connect a variety of M. 2 interface SSD, easily expand the system disk. *With LED indicator for easy control of SSD operation. *Reserve external power supply interface, when using high-power SSD, you can connect external power supply at any time to increase power supply. *Fixed SSD copper studs are removable, for connection to the various specifications SSDs easily. *High quality elastic connectors for a more stable contact. *Gold finger gold plating, better conductivity. 5.
Product Parameters: Product
Name: PCI-E 4X TO NGFF 2B/1M KEY Riser
Product Model: LM-110N

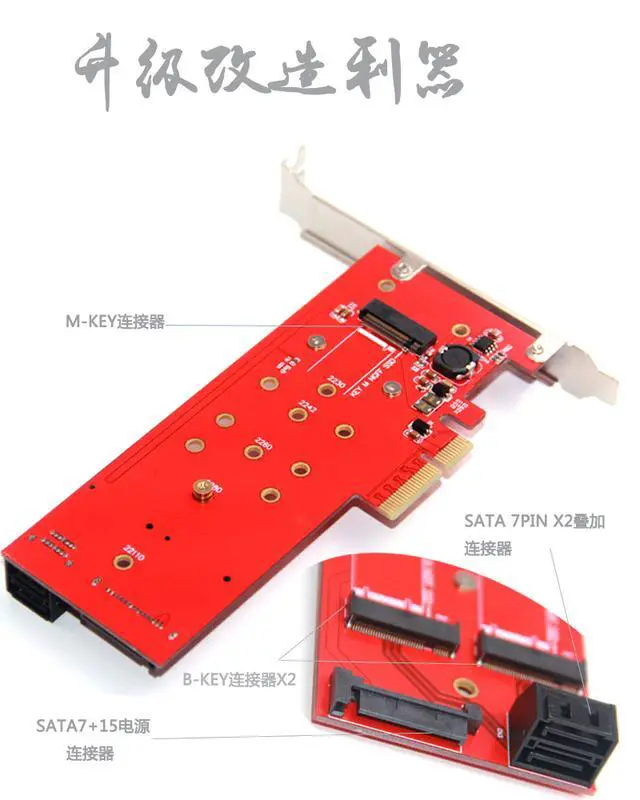

Interface Type: SATA7P*2 M 2 M KEY*1 M 2 B KEY*2
Power Supply Interface: SATA15P
Support Slot: PCI E X4/PCI-E X16
Support System: WIN7/8/10, Linux, Mac 6.

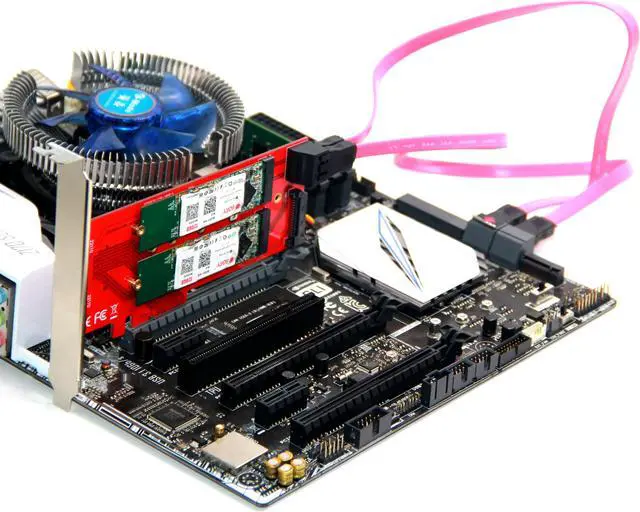

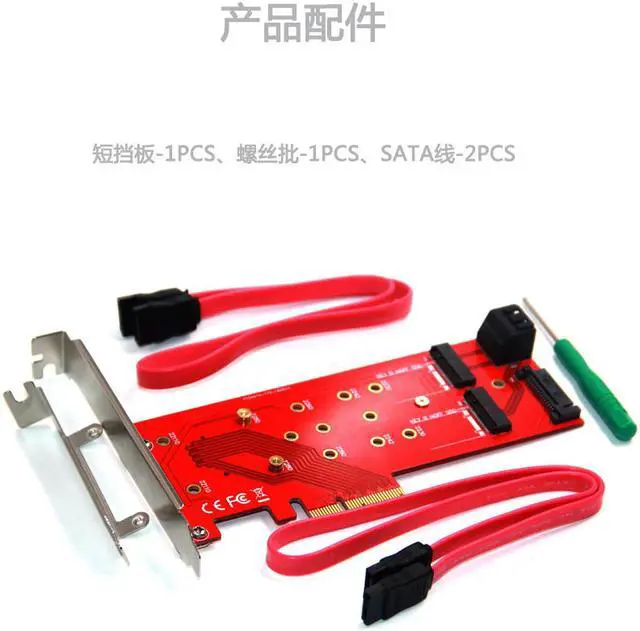

Product Accessories List: PCI-E 4X Adapter Card x1 SATA cable x2 Short Bracket x1 Screwdriver x1 Manual x1 7. Product Installation Diagram
