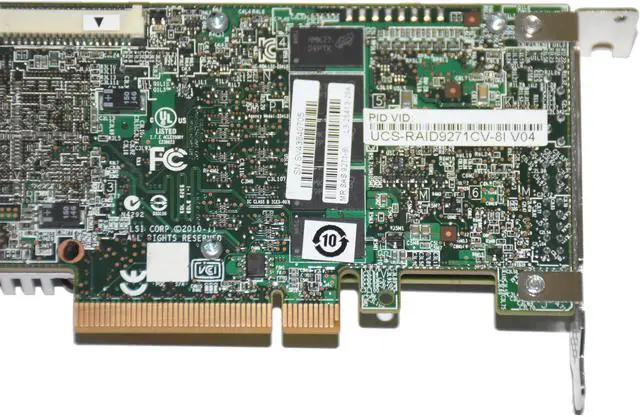

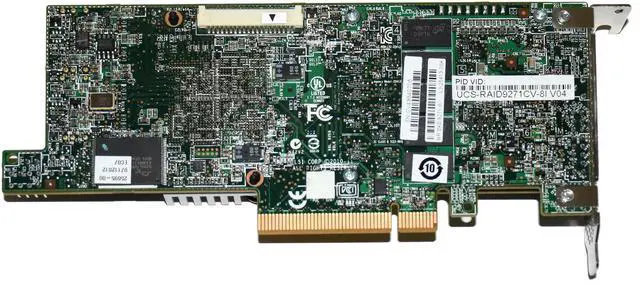

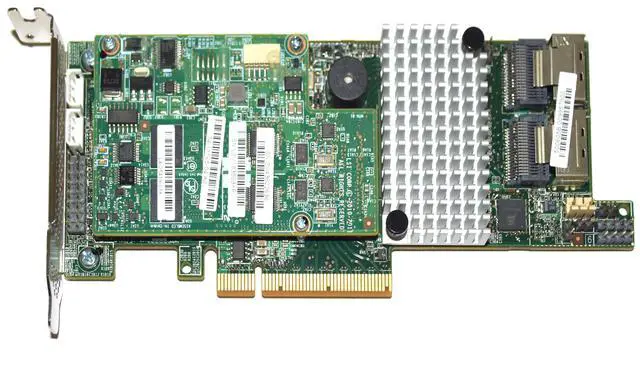

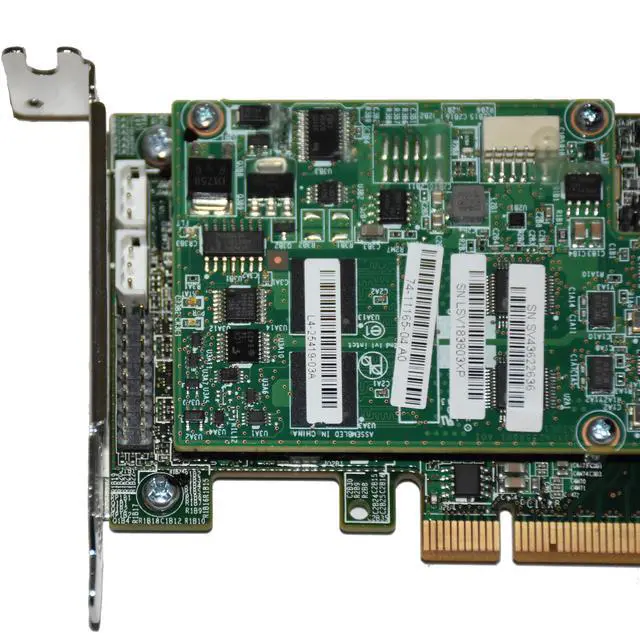

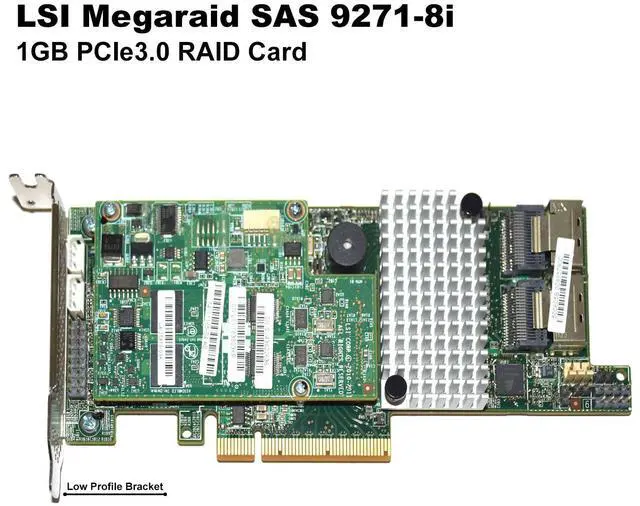

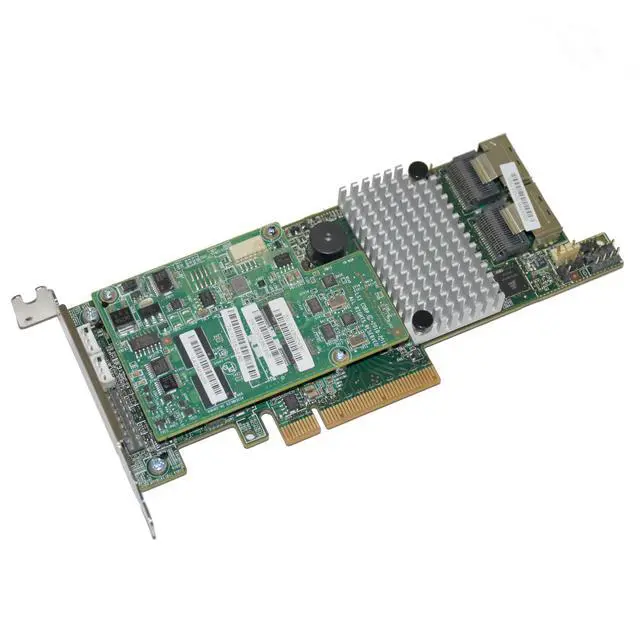

LSI Logic L5-25413-18 MegaRAID SAS 9271-8i 8 Port PCI Express 3.0 1GB DDR3 Single Controller Card

Features: Eight internal SATA+SAS ports Two mini-SAS SFF-8087 x4 connectors - side mount 6Gb/s throughput per port LSISAS2208 Dual Core ROC o 800MHz PowerPC MD2 Low profile ( 6.6 X 2.536 ) x8 PCI Express 3.0 host interface 1GB DDRIII cache (1333MHz) Optional CacheVault Module (LSICVM01) Optional battery backup unit (LSIiBBU09 remote mount) Connect up to 128 SATA and/or SAS devices RAID levels 0, 1, 5 and 6 RAID spans 10, 50 and 60 Benefits Second generation 6Gb/s SATA+SAS with unprecedented levels of performance Designed for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs) Designed for IOPs performance and advanced software options help users realize full benefits of SSD deployments CacheVault technology option for greener, lower total cost cache protection Support for CacheCade Pro 2.0 read/write caching software to help accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache. Proven interoperability with the latest server platforms based on the PCI Express 3.0 specification Helps to meet high I/O transaction demands of database and datacenter applications Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments Detail

Specifications

Solution Provided Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs) Form Factor MD2 Low Profile Internal Connectors Two Mini-SAS SFF8087 internal connector (side mount) Device Support Up to 128 SAS and/or SATA hard drives and SSDs I/O Processor/SAS Controller LSISAS2208 Dual-Core RAID on Chip (ROC) Cache Memory 1 GB 1333MHz DDRIII SDRAM Cache Protection MegaRAID CacheVault flash cache protection (optional LSICVM01 / LSI00297) MegaRAID LSIiBBU09 (optional LSIiBBU09 / LSI00279) Key RAID Data Protection Features MegaRAID Management Suite -RAID levels 0, 1, 5 and 6 -RAID spans 10, 50 and 60 -Online Capacity Expansion (OCE) -Online RAID Level Migration (RLM) -Auto resume after loss of system power during arrays, array rebuild or reconstruction (RLM) -Single controller Multipathing (failover) Load Balancing -Configurable stripe size up to 1MB -Fast initialization for quick array setup -Check Consistency for background data integrity -SSD Support with SSD Guard technology -Patrol read for media scanning and repairing -64 logical drive support -Up to 64TB LUN support -DDF compliant Configuration on Disk (COD) -S.

M. A. R. T support -Global and dedicated Hot Spare with Revertible Hot Spare support Automatic rebuild Enclosure affinity Emergency SATA hot spare for SAS arrays Enclosure management SES (Inband) SGPIO (sideband)
Operating Temperature Maximum ambient: Controller
Card: 60C, with optional LSIiBBU 09: 55 C Operating Voltage + 3.3V, +12V MTBF (Calculated), 031, 514hours Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3 FCC Class A, Class B UL1950 UL CSA C 22.2 VCCI RRL for MIC BSMI C-tick Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3 FCC Class A, Class B UL1950 UL CSA C 22.2 VCCI RRL for MIC BSMI C-tick Optional SSD Optimization MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/sSATA+SAS controllers MegaRAID OS Support Extensive support includes Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more. Item Dimension (LxWxH) 8 x 10.2 x 2.5 Weight 2.00 lb Warranty Information 3 Years
