Waveshare Binocular Camera Module Dual IMX219 with 8 Megapixels for Stereo and Depth Vision Support Jetson Nano Developer Kit B01 versi Compute Module 3/3+

IMX219-83 Stereo Camera, 8MP Binocular Camera Module, Depth Vision
Overview

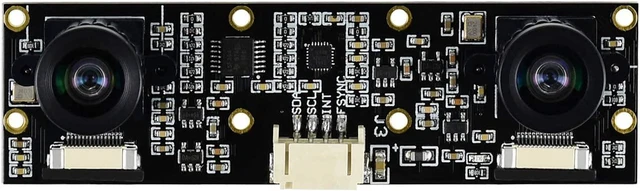

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

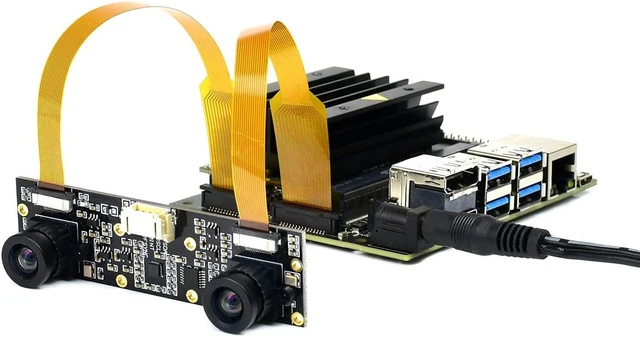

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

8 Megapixels

Sensor: Sony IMX219

Resolution: 3280 × 2464 (per camera)

Lens specifications: CMOS
size: 1/4inch/Focal
Length: 2.6 mm/Angle of
View: 83/73/50 degree (diagonal/horizontal/vertical)/Distortion: <1%/Baseline Length: 60mm

ICM20948:
Accelerometer:
Resolution: 16-bit/Measuring
Range (configurable): ±2, ±4, ±8, ±16g/Operating
Current: 68.9 uA

ICM20948:
Gyroscope:
Resolution: 16-bit/Measuring
Range (configurable): ±250, ±500, ±1000, ±2000°/sec/Operating
Current: 1.23 mA
ICM20948:
Magnetometer: Resolution: 16-bit/MMeasuring Range: ±4900µT/Operating Current: 90uA

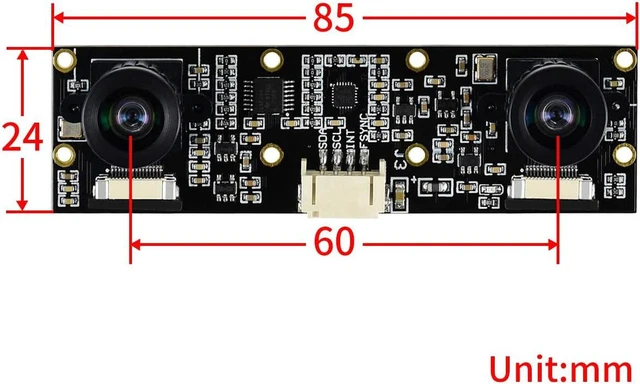

Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

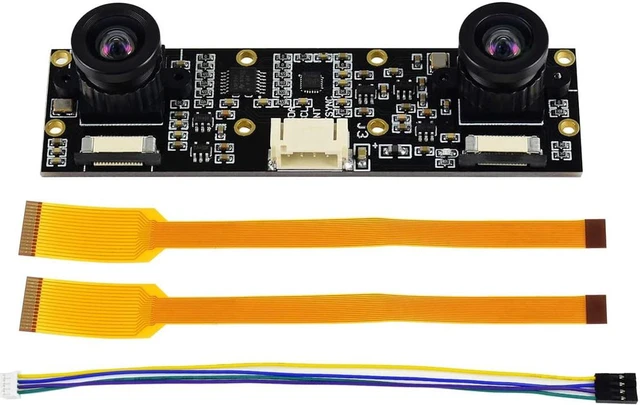

Package Content

Weight: 0.103 kg

IMX219-83 Stereo Camera x1

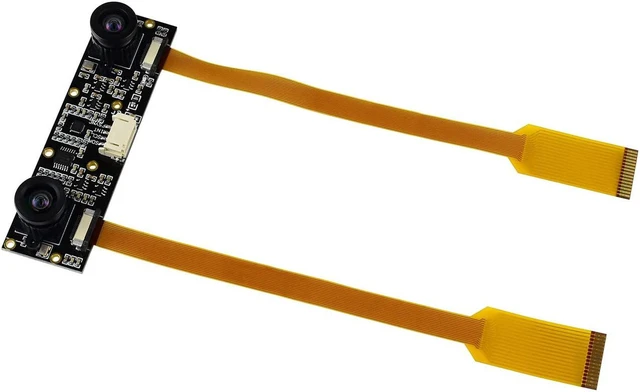

FFC (2PCS) x1

PH 2.0 4PIN wire x1
