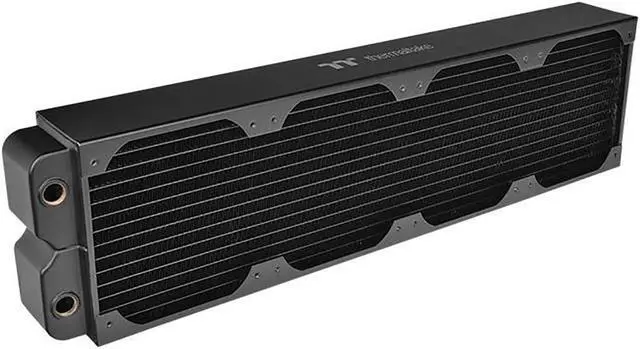

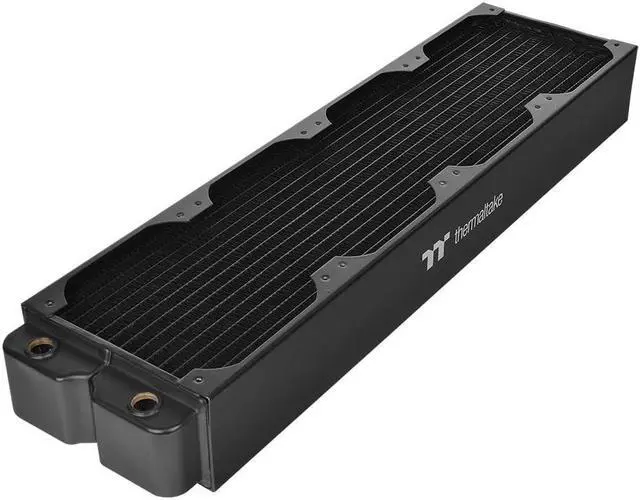

Thermaltake CL-W192-CU00BL-A 64 mm Pacific CL480 Copper Radiator

The Pacific CL480 Radiator is a high-performance 480mm copper radiator with high-density copper fin design and brass tank. Built for 120mm high-static pressure fans, the radiator is manufactured from premium-quality materials that provide exceptional performance, unrivalled reliability. The unique stainless steel side panels guarantee the durability as well as reduce the weight of the radiator. Integrated G1/4" threads make it easy to install, while rigid connections ensure leak-resistant measures are in place. With an ideal mounting, fitting and flow set-up, the Pacific CL480 Radiator meets your cooling needs in every way.

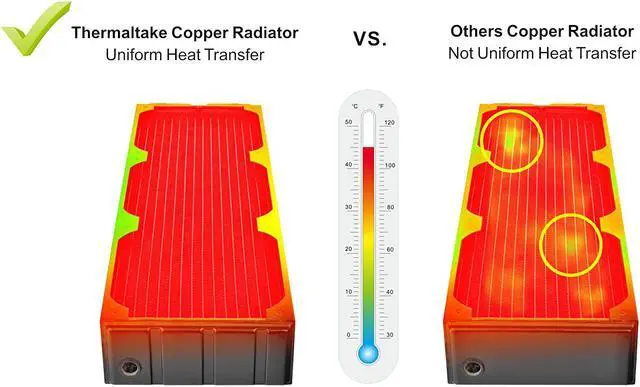

The radiator is optimized for efficiently pulling heat away from the power-dissipating components thus achieving maximum heat dissipation at both low and high airflow operation. After soldering, the fin and tube connect to form a joint, thereby creating uniform heat transfer.

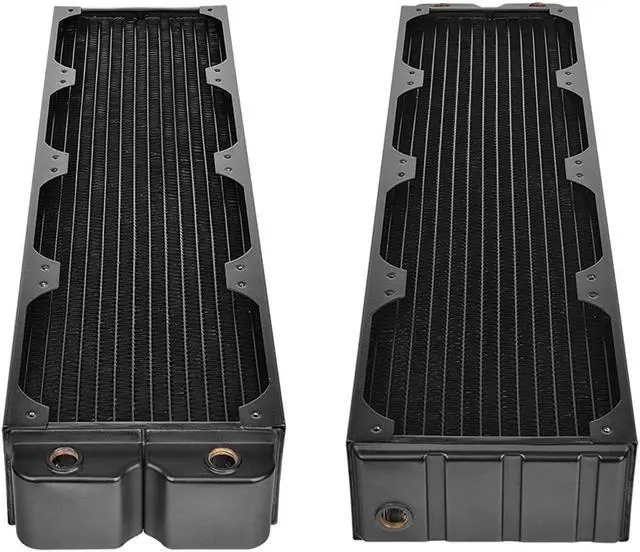

To assure the best thermal capacity and increase heat transfer, the Pacific CL480 is engineered with an extremely thick 64mm radiator along with a triple-row 14-set flat tube design and brass tank. This technique allows that water flows down on the one side, and then passes across the bottom chamber before circulating back to the other side of the radiator.

Fin density is optimally designed to accommodate high air volume (FPI: 14). The performance improves significantly with increased fan speed, offering superior cooling efficiency during operation.

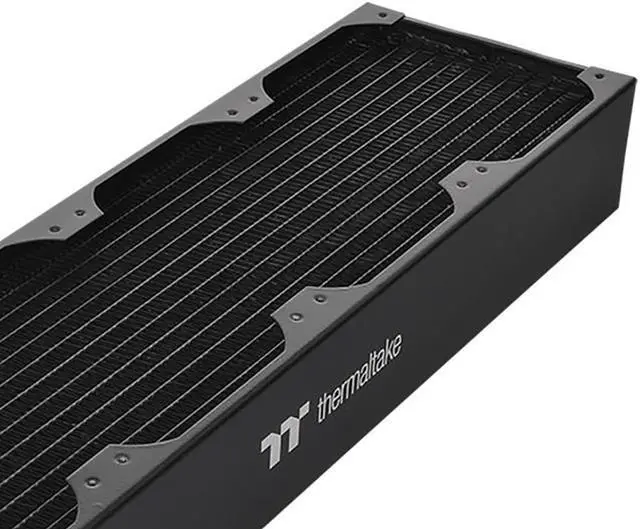

Unlike most of copper radiators on the market, the radiator utilizes stainless steel made side panels that increase the durability and strength of the radiator while reducing the weight.

Dimensions - 522 (L) x 132 (W) x 64 (H)
Weight - 2100 g
Material - Copper
FPI (Fin per Inch) -KEY_TAB 14
Flat Tube - 16 set
Parts - Stopper *3 (G¼”)
Screw Thread - G¼” * 5

Model: CL-W192-CU00BL-A
