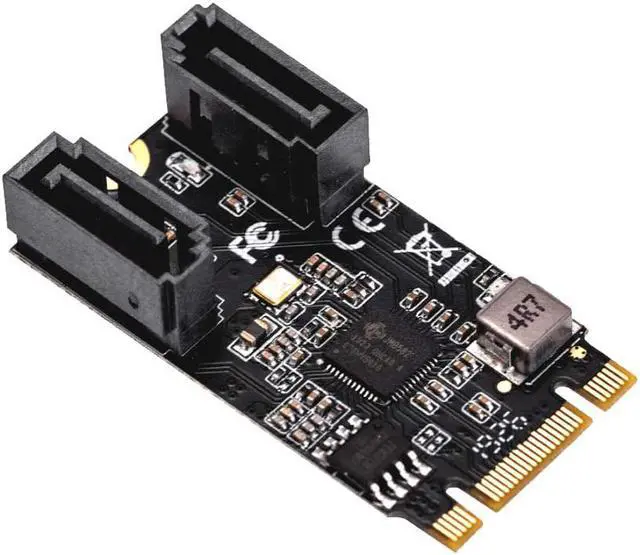

IOCrest SI-ADA40149 2 Port SATA III 6Gb-s M.2 22x42 Controller Card

The IO Crest 2 Port SATA III 6Gb/s M. 2 22x42 Controller Card is the easiest way to update any computer with SATA ports with a free M. 2 slot. Once installed this host card will add SATA ports with two independent channels. This allows support of two SATA devices at speeds of up to 6Gb/s whether it is a SATA hard drive or SATA device. Using the JMB582 chipset- the SI-ADA40149 can provide a maximum sequential Read / Write Speed of 850 MB/s to 2 SATA 6Gb/s ports.

For the storage solution based on data transfer of multiple hard drives- the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously.
Features
Complies with PCI Express base specification revision 3. 1a. M. 2 B+M Key interface
Compliant with Serial ATA AHCI Specification Rev 1. 0- supports SATA 3. 0 transfer rate up to 6Gbps
Maximum sequencing read/ write speed 850 MB/s
Micron JMB582 Chipset- Port Multiplier FIS-based and Command-based switching supported
Hot plug and Hot swap SATA ports
Support Gen 1i- Gen 1x- Gen 2i- Gen 2m- Gen 2x- and Gen 3i
Compatible with Windows XP/7/8/10/Mac/NAS/Linux OS
Support install Windows OS from Win10 PESpecifications
Weight: 0.2 lbs
