4 Pack 3.5mm Replacement Repair Plug Jack TRRS 4 Pole Stereo Male Plug 1/8 3.5mm Solder Type DIY Audio Cable Connector for Headphone Headset Earphone Microphone Cable Repair
- Fancasee 4 Pack 3.5mm Replacement Repair Plug Jack TRRS 4 Pole Stereo Male Plug 1/8 3.5mm Solder Type DIY Audio Cable Connector for Headphone Headset Earphone Microphone Cable Repair
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

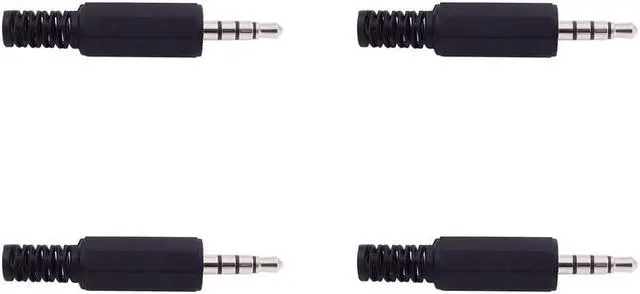

Perfect replacement 3.5 mm male plug jack for repair worn-out or broken headphone headset earphone microphone audio cable plug connector. Solder type 3.5 mm stereo 4 pole male plug jack replacement.

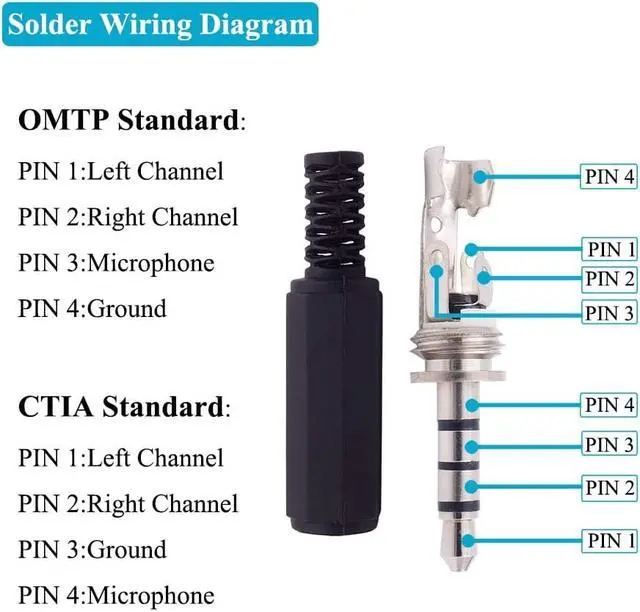

Solder Wiring Diagram OMTP standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Microphone; PIN 4 - Ground.
CTIA standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Ground; PIN 4 - Microphone. (Refer to the 2nd product image. ) Suitable for cable with diameter up to 5mm. Easy to handle you really don't have to be a professional to do this. Insert the cables into the sleeve solder the bare wire and the plug together and then twist and lock in place.
Package contents: 4-Pack 3.5 mm replacement plug jack solder type stereo 4 pole male plug.
Solder Wiring Diagram OMTP standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Microphone; PIN 4 - Ground.
CTIA standard: PIN1 - Left channel; PIN 2 - Right channel; PIN 3 - Ground; PIN 4 - Microphone. (Refer to the 2nd product image. ) Suitable for cable with diameter up to 5mm. Easy to handle you really don't have to be a professional to do this. Insert the cables into the sleeve solder the bare wire and the plug together and then twist and lock in place.
Package contents: 4-Pack 3.5 mm replacement plug jack solder type stereo 4 pole male plug.
