CHENYANG USB 3.0 to SATA 2.5" Hard Disk to M.2 NGFF PCI-E 2 Lane SSD for E431 E531 X240 Y410P Y510

USB 3.0 to SATA 2.5" Hard Disk to M.2 NGFF PCI-E 2 Lane SSD for E431 E531 X240 Y410P Y510

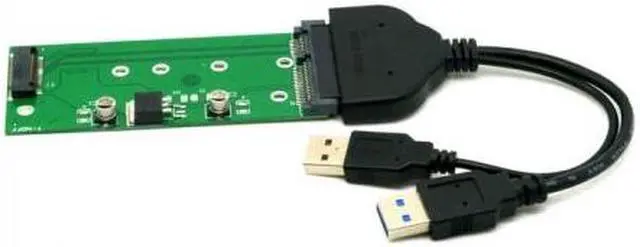

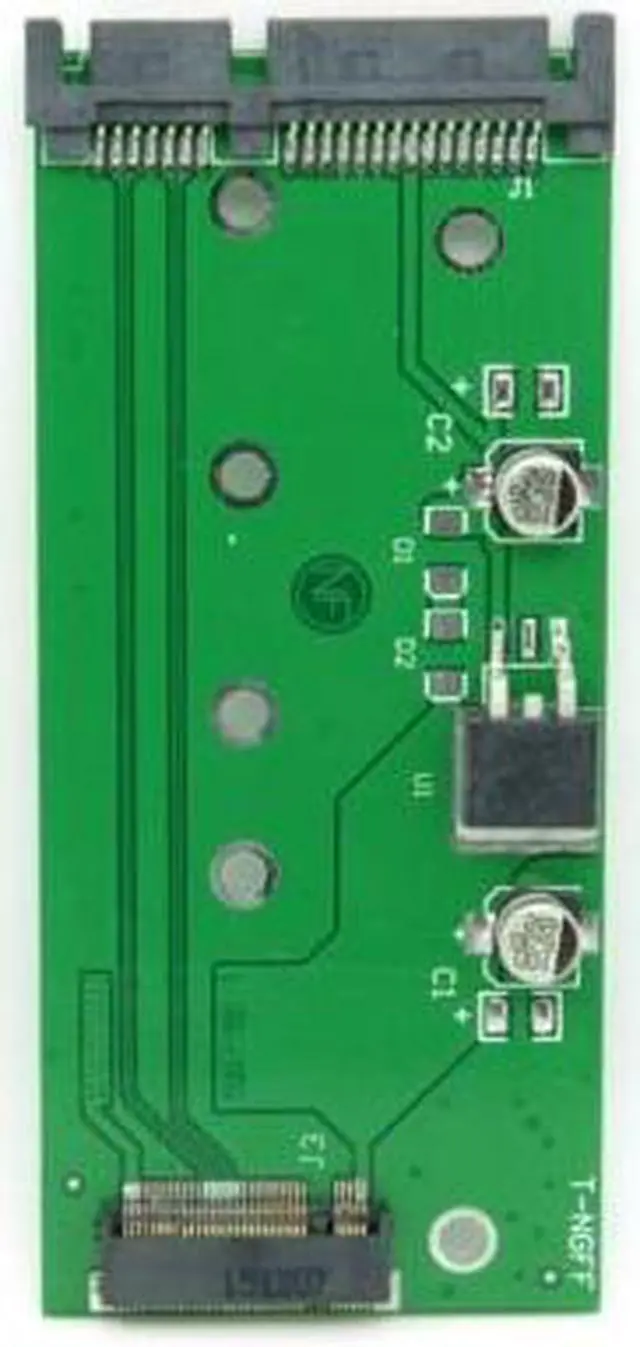

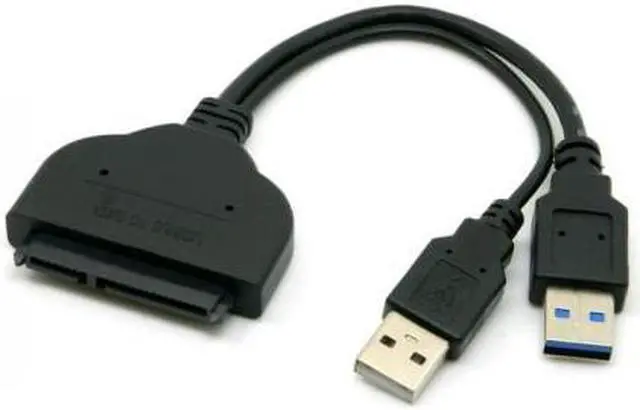

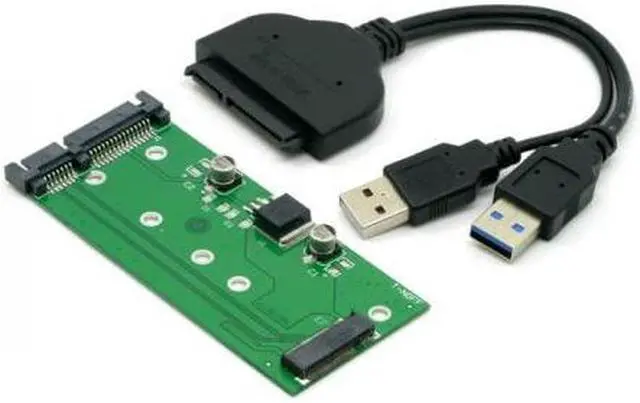

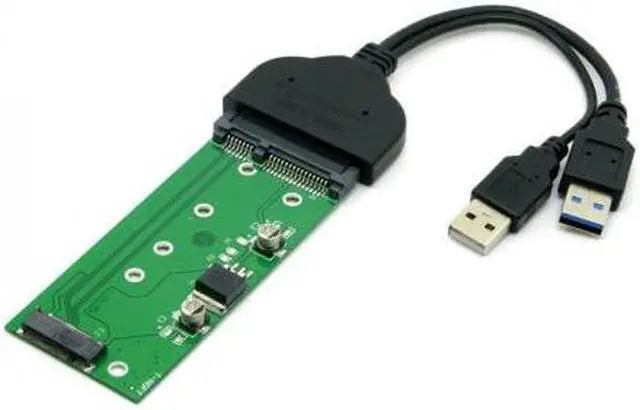

The item included one cable and one PCBA.


SATA III to M.2(NGFF) Storage adapter, providing one 7pin + 15pin power connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.
Work for E431 E531 X240 Y410P Y510P M.2 NGFF PCI-E 2 LANE SSD
The adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.
Fully compliant with SATA revision 3.1
Fully compliant with PCI Express M.2 Specification Version 1.0
PWM Power IC / 1.4MHz 5.5V synchronous buck converter
M.2 SSD input voltage: 3.3V ±5%, input max. current: 3A




Note: The adapter only work for B-key or B/M-key socket, cannot work for M-key socket.
