Coolgear USB-C to USB-A Power Delivery Adapter with Mounting Kit - CG-UCUSBPD

USB-C Power Delivery is Here!

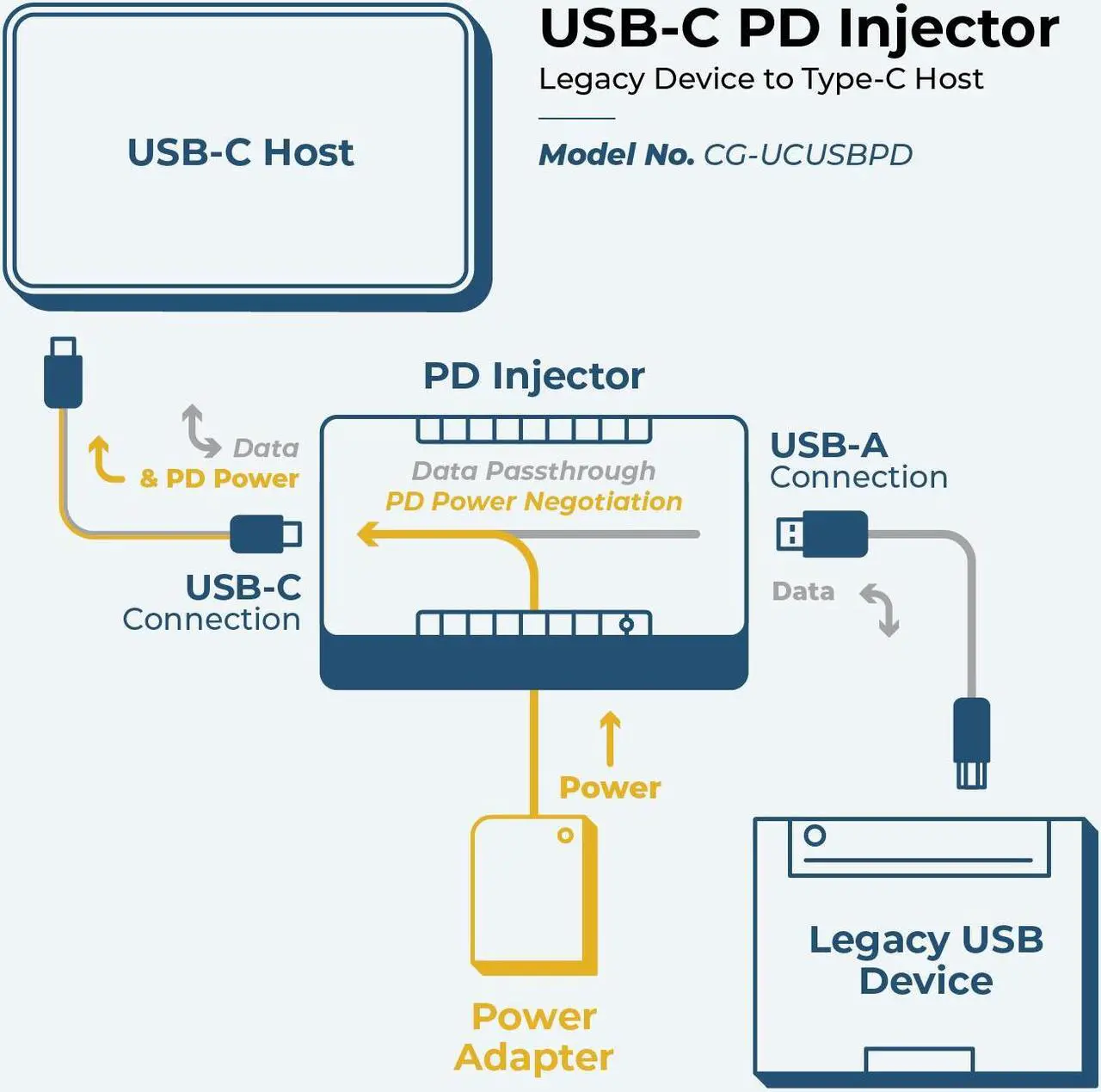

USB-C to USB-A Power Delivery Adapter is USB 3.1 Gen1/2 compliant and is backward compatible with USB 2.0/1.1. It acts as a PD source (power delivery source) for its upstream connector that works with USB 3.1 or USB 2.0 devices. The USB-C upstream port is fully compliant with a USB 3.1 and USB PD capable host.

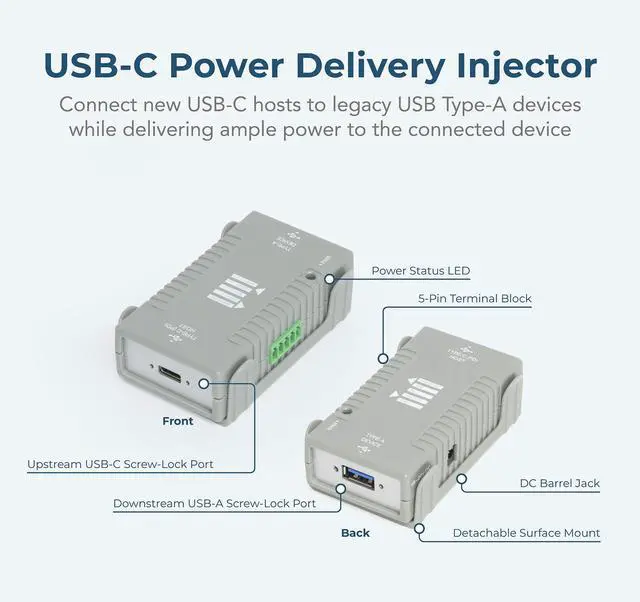

USB-C Power Delivery Adapter Features

• Compliant with USB 3.1 Gen1 and Gen2

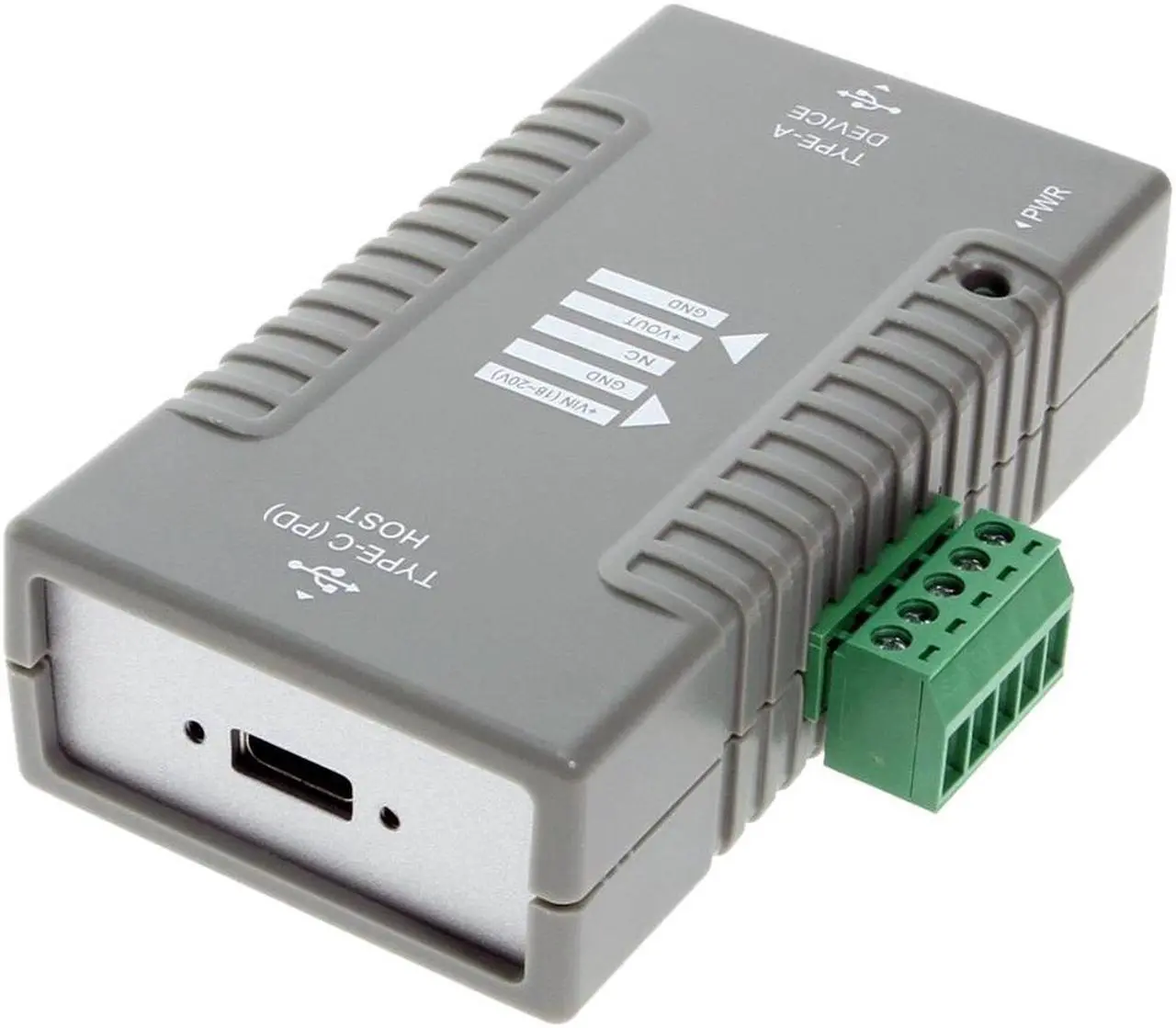

• One upstream Type-C Connector Supports PD Capable Host

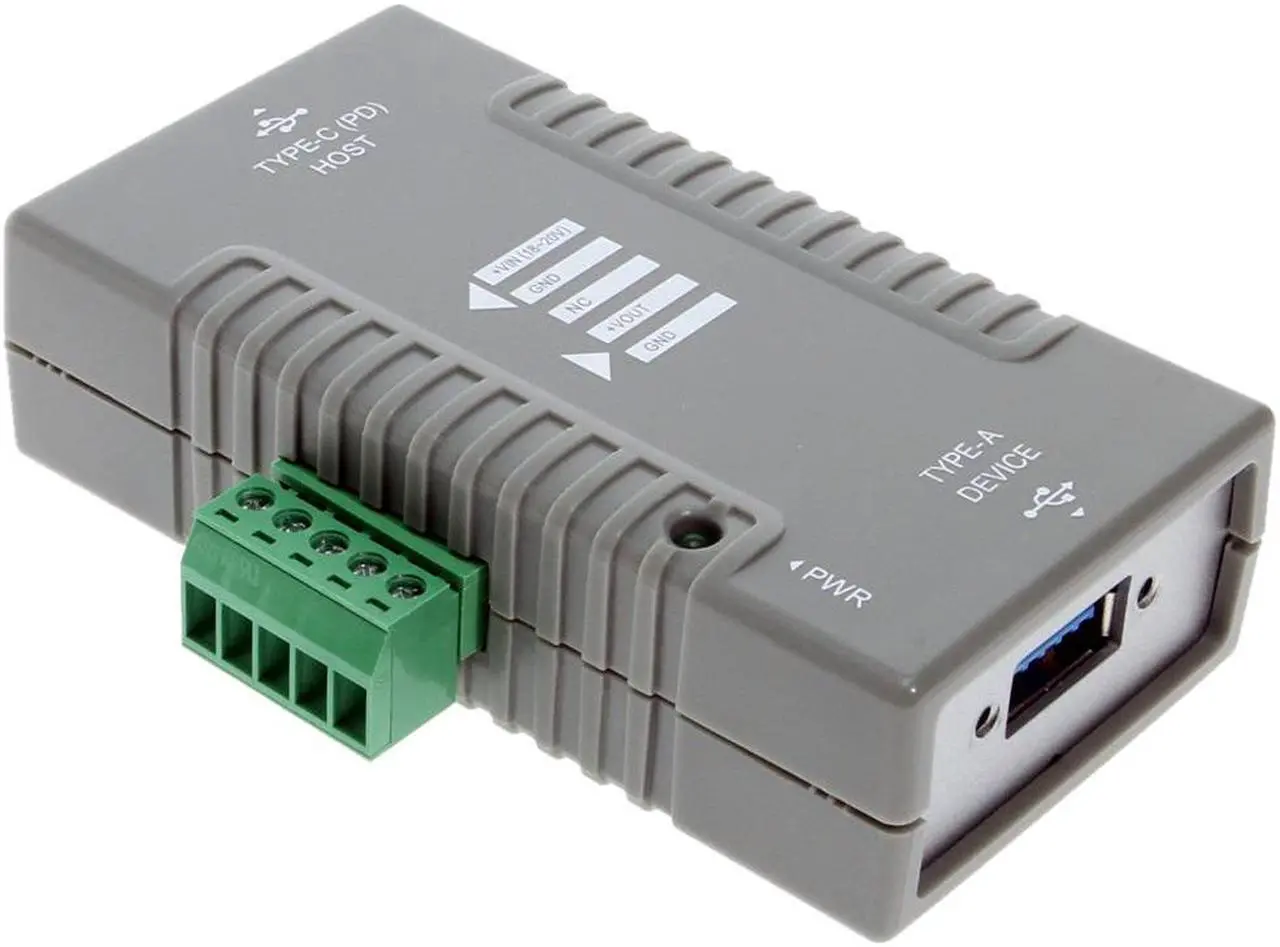

• One Downstream Type-A USB 3.1 Gen1/Gen2 Connector for Devices


• Supports USB PD (power delivery), Works as a Source

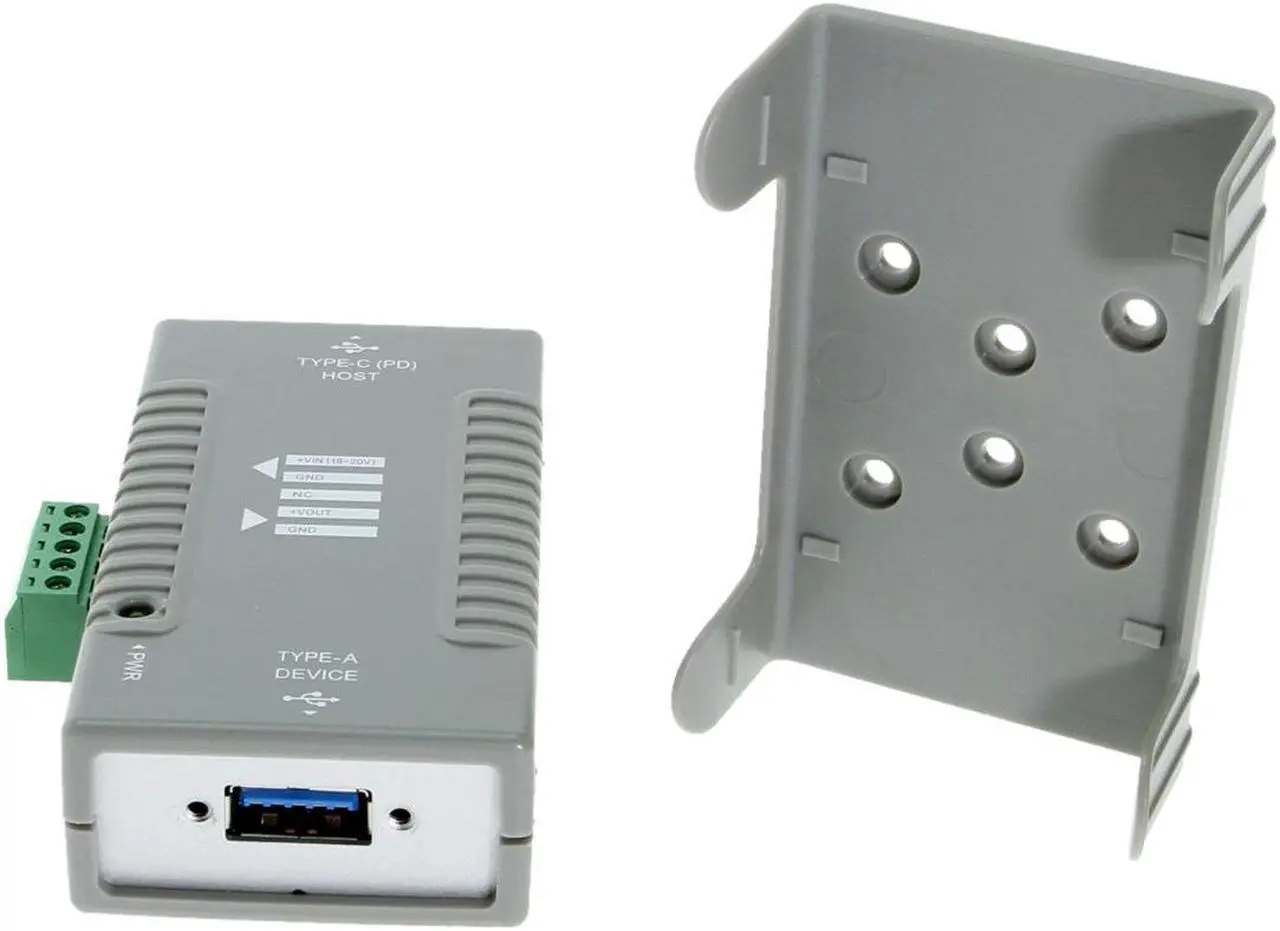

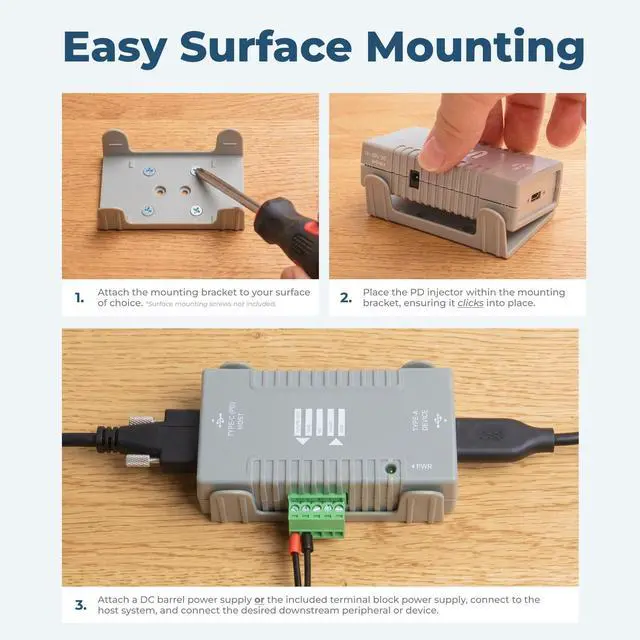

• Detachable Mounting Kit for Wall or DIN Rail Mounting Options


• Supports Type-C and Type-A Screw Lock USB Cables


• DC Power Input: 18-20V DC, from DC Jack or Terminal Blocks


• Provides Negotiated Power Output to Terminal Blocks


• Detection of USB Cable connector Attached, Orientation and Role Detection


• Assign CC and VCONN Pins


• Supports Source PDOs (Power Data Object): 20V/5A, 14.5V/2A, 12V/3A and 5V/3A


• Operating Temperature: 0 to 55 C (32 to 131 F)


• Operating Humidity: 5 to 95% RH


• Storage Humidity: -20 to 85 C (-4 to 185 F)

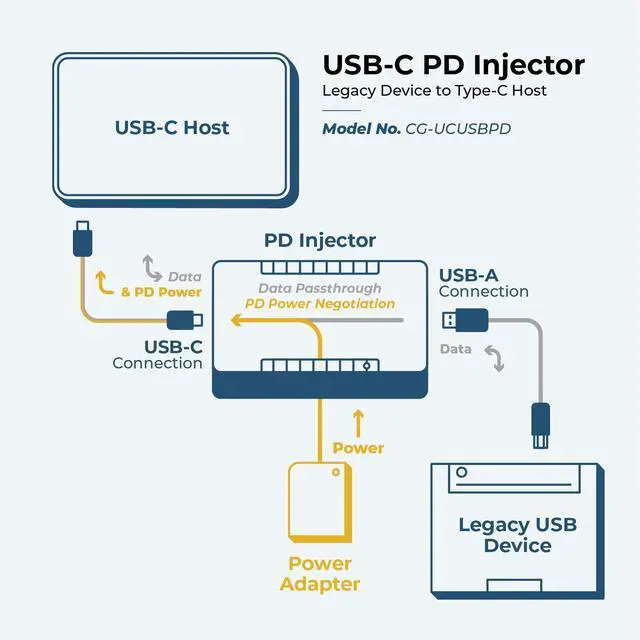

Input and Output Power

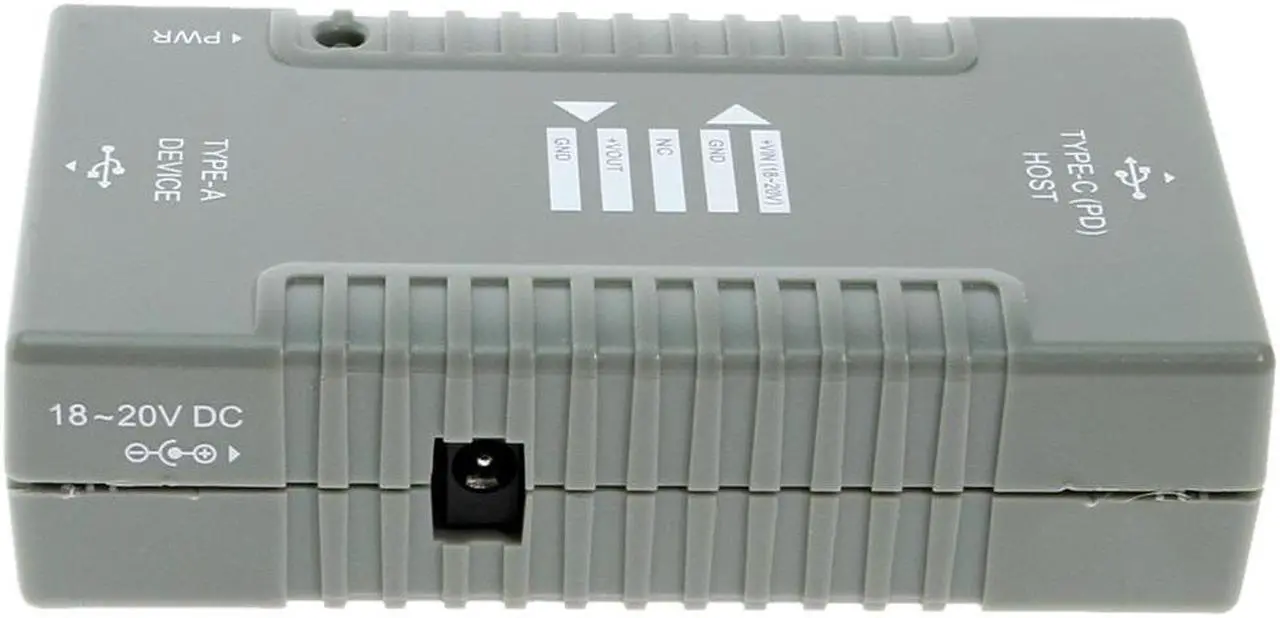

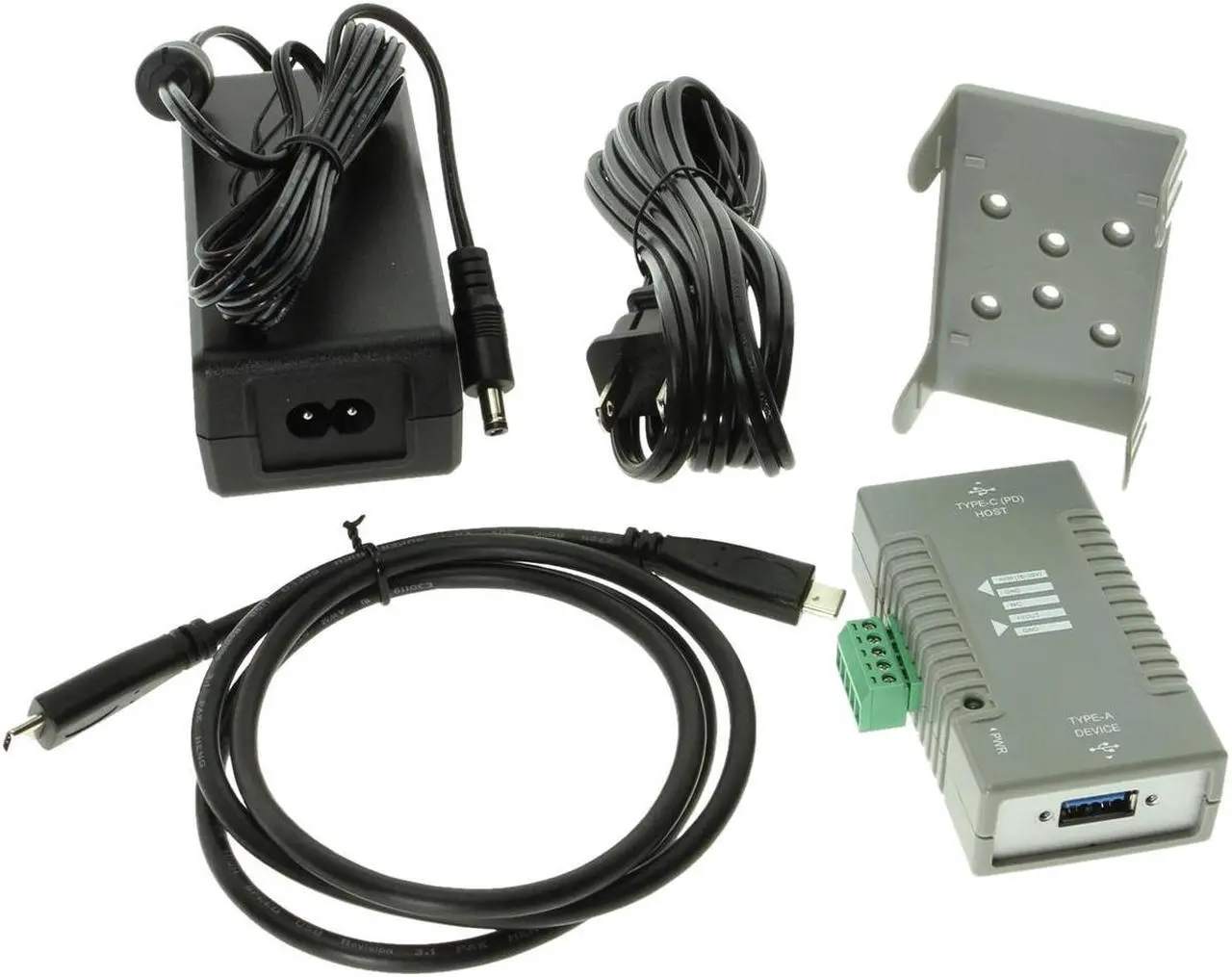

The USB-C to USB-A PD Adapter requires 18-20V DC for operation. It can be connected to either the DC Jack or Terminal Blocks (but not simultaneously). The included 19V/2.64A (50W) standard power supply must be connected to the DC Jack.

The USB-C to USB-A PD Adapter produces the required power for the USB-A device (5V fixed) and the PD source power (19V, 14.5V, 12V, or 5V). This depends on which PDO is requested and granted by the PD sink for the USB-C upstream port.
