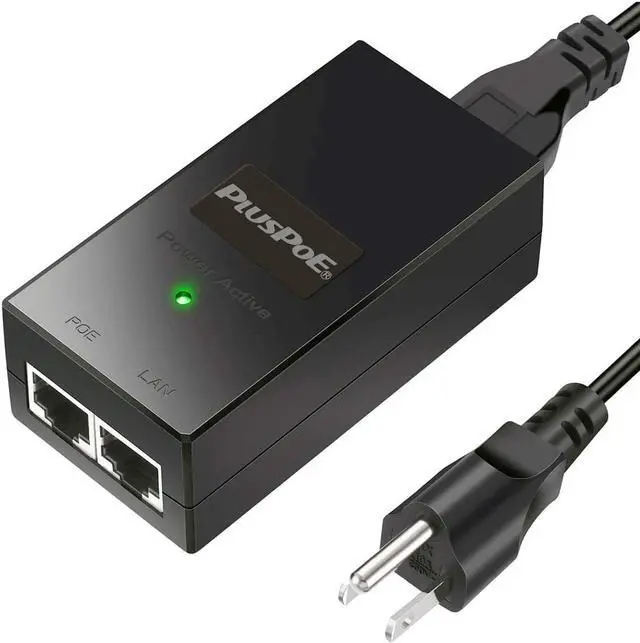

Gigabit PoE Injector Adapter, IEEE 802.3af Compliant, 10/100/1000Mbps RJ-45, 48V POE Power Supply Adapter, up to 100 Meters (325 Feet)
- IEEE 802.3af compliant PoE injector, up to 24 watt PoE power supply
- 1 Gigabit Ethernet port input and 1 PoE+ Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds.
- Converts a non-PoE Gigabit port to a PoE+ Gigabit port and Network a PoE device located up to 100 meters (328 ft.) away.
- Plug & play, no configuration is needed, simply connect a PoE network device to this poe adapter, accommodates most installations scenarios.
- Compact and cost effective PoE injector which offer multiple protection, such as over current protection, over load protection, over voltage protection and anti-interference protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

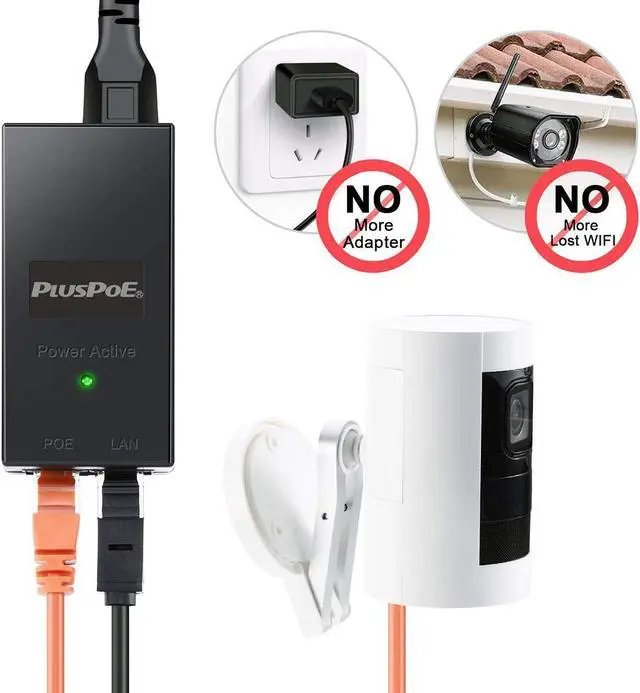

Use PoE injector with PD to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP camera or IP Phone, etc.
The PoE injector is a single port poe injector offer a compact and cost effective, it can convert standard 100-240V ac power into low-voltage.
DC that runs over existing LAN cable to power up IEEE 802.3 af/at compliant network accessories. Remote powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.
Features:
Up to 15.4W (Max 24watt) of Power on 2-pairs
Supports 10/100/1000 Base-T applications
Led indicators power input and poe output
Internal ac/dc converter no need for external power brick
easy plug and play installation
Muti-protection
Specification:
Pass Through Data Rates: 10/100/1000Mbps
Out Power Voltage: 48~56VDC
User Port Power: 15.4W att, Max 24W Power Budget
AC Input Voltage: 100-240VAC
Ac Input Current: 0.5A 100-240VAC
AC Frequency: 50 to 60 HZ

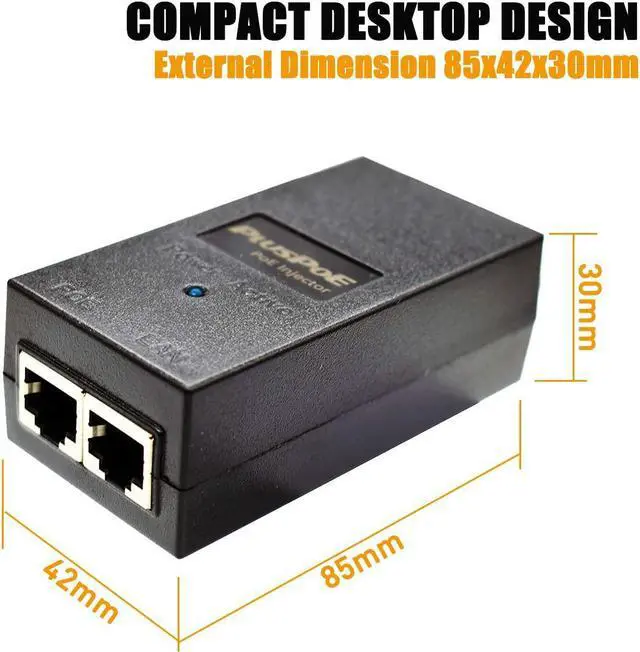

Dimensions: 85x42x30 mm
System Indicator: AC power
Connectors: shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature: -0 to 40
Storage Temperature: -40 to 60

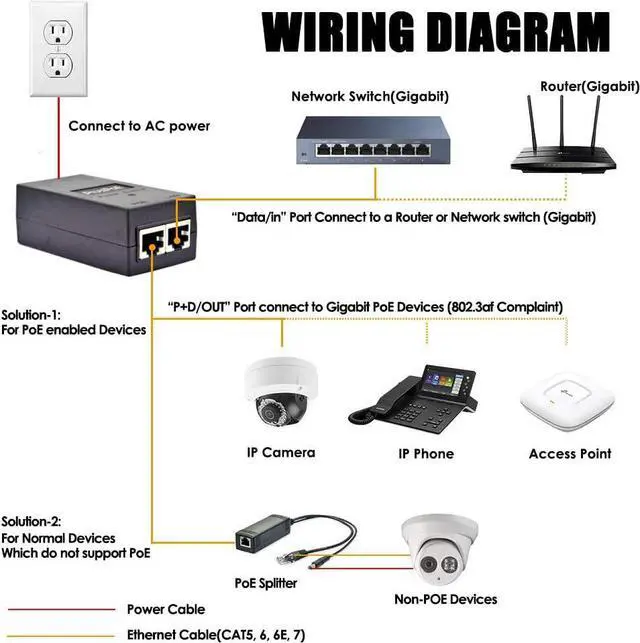

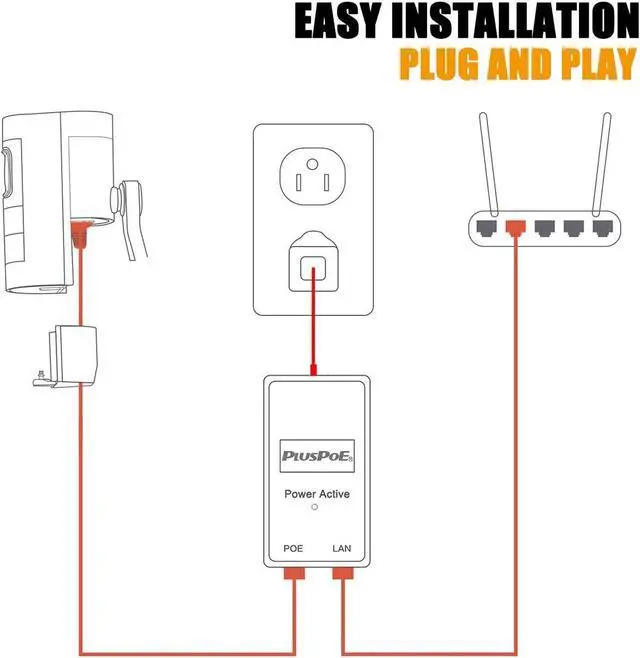

Installation Steps
1. Use a CAT5e UTP cable to connect port of Ethernet devices to the DATA IN port
2. Connect AC cable with Injector and Socket
3. Connect the PoE OUT port to a PD with CAT5 UTP cable
The PoE injector is a single port poe injector offer a compact and cost effective, it can convert standard 100-240V ac power into low-voltage.
DC that runs over existing LAN cable to power up IEEE 802.3 af/at compliant network accessories. Remote powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.
Features:
Up to 15.4W (Max 24watt) of Power on 2-pairs
Supports 10/100/1000 Base-T applications
Led indicators power input and poe output
Internal ac/dc converter no need for external power brick
easy plug and play installation
Muti-protection
Specification:
Pass Through Data Rates: 10/100/1000Mbps
Out Power Voltage: 48~56VDC
User Port Power: 15.4W att, Max 24W Power Budget
AC Input Voltage: 100-240VAC
Ac Input Current: 0.5A 100-240VAC
AC Frequency: 50 to 60 HZ
Dimensions: 85x42x30 mm
System Indicator: AC power
Connectors: shielded RJ-45, EIA 568A and 568B
Operating Ambient Temperature: -0 to 40
Storage Temperature: -40 to 60
Installation Steps
1. Use a CAT5e UTP cable to connect port of Ethernet devices to the DATA IN port
2. Connect AC cable with Injector and Socket
3. Connect the PoE OUT port to a PD with CAT5 UTP cable
