LR1002-1ET POE IP Over Coax EOC Transmitter Single Port Long Reach Ethernet Over Coax Extender for CCTV IP Camera(Transmitter Only)
- Ethernet & Power transmission over coaxial cable, EoC Transmitter can be used as a pair with EoC Receiver to upgrade analog system to IP surveillance system while using existing coaxial cable. 100 Mbps bandwidth over 1,000 feet regular RG59 transmission, working with CCA/CCU RG59/RG6 cable. Support PoE power transmission with load capacity 11W over 1,000ft transmission, working with PoE IP camera, VoIP phone, PoE WiFi AP.
- Act as MoCA (Multimedia over Coax) in point-to-point connection, transmit video / audio / data / control signal over coax cable.
- Plug-and-play, configuration free. When used as a pair with EoC Receiver, EoC receiver should be powered by PoE switch or PoE injector, no additional power adapter is required in EoC transmitter side.

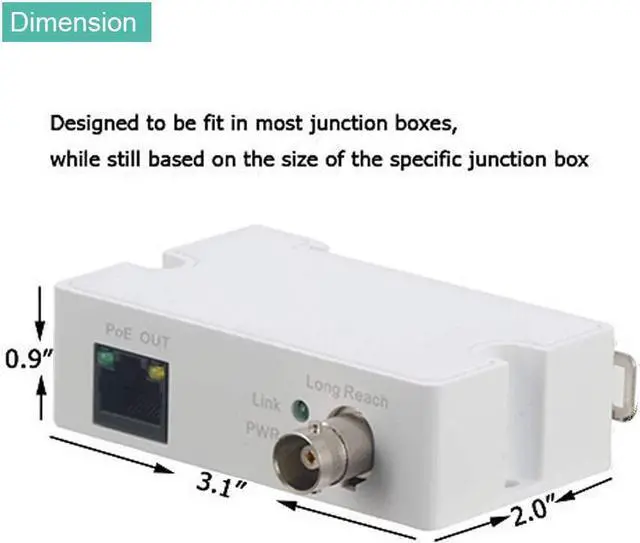

- Including One EoC Transmitter, small size (3.1"x2.0"x0.9"), light weight, fit into regular back box. Supports MDI/MDIX self-adaption
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Application
Ideal for Security Video Systems, Video Switching system, Home Automation, Multi-media, Education systems, Access Control system, Information Diffusion system, etc;

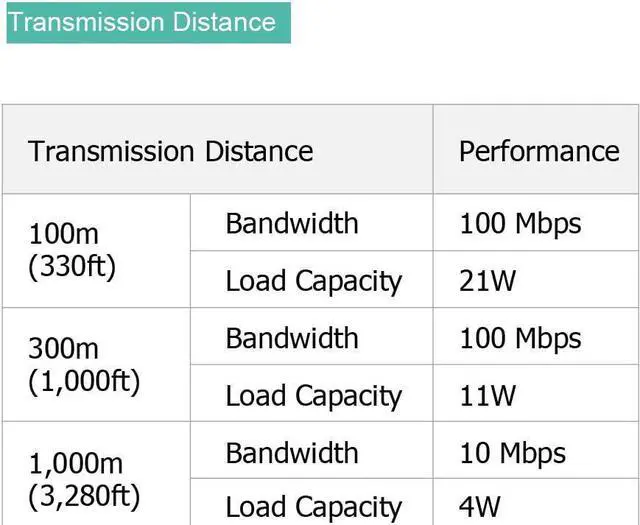

Compatible to IEEE 802.3 af / IEEE 802.3 at POE protocol, max 21W POE load capacity in 330ft, or 11W POE load capacity in 300m.
Important Notes
EOC transmitter must be used with EOC transmitter for upgrading analog surveillance system into IP surveillance system.

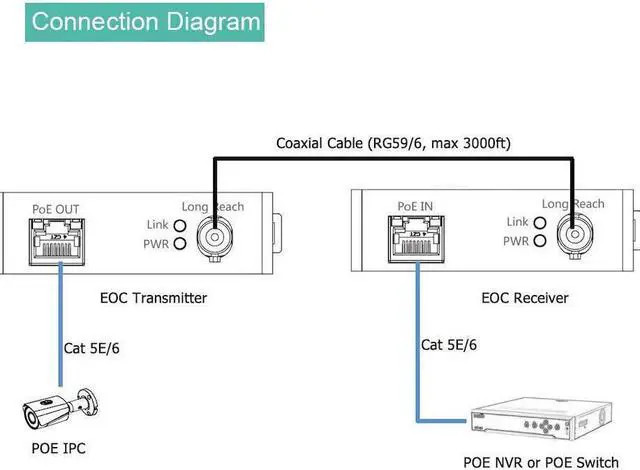

EOC transmitter should be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE supply device (POE NVR, POE Switch or POE Injector).
Package Included
1 * EOC IP Over Coax Transmitter
1* User Manual
Ideal for Security Video Systems, Video Switching system, Home Automation, Multi-media, Education systems, Access Control system, Information Diffusion system, etc;
Compatible to IEEE 802.3 af / IEEE 802.3 at POE protocol, max 21W POE load capacity in 330ft, or 11W POE load capacity in 300m.
Important Notes
EOC transmitter must be used with EOC transmitter for upgrading analog surveillance system into IP surveillance system.
EOC transmitter should be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE supply device (POE NVR, POE Switch or POE Injector).
Package Included
1 * EOC IP Over Coax Transmitter
1* User Manual
