Cudy 2 Channel Gigabit Outdoor PoE Extender,2 Output PoE Ports, IP67 Waterproof, 10/100/1000Mbps, PoE Repeater/PoE Amplifier/PoE Booster, Wall-Mount, Comply with 802.3bt / 802.3at / 802.3af

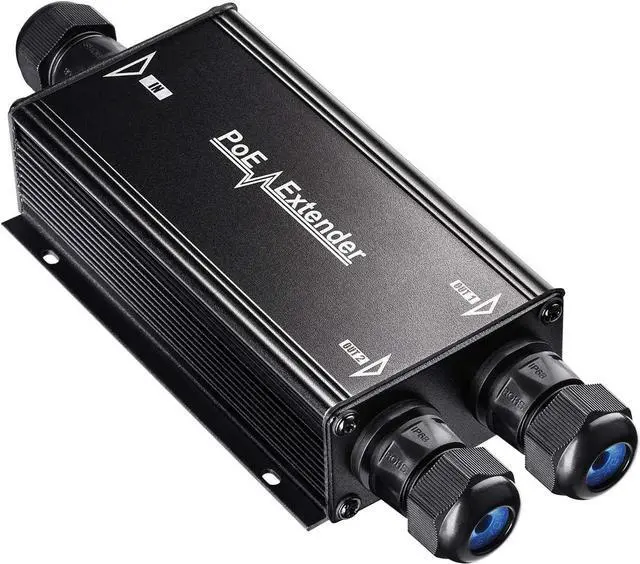

- 2 Channel gigabit outdoor PoE extender, easy to extend PoE Power to two PoE devices, such as Wireless APs, Base Stations, Network Cameras or other PoE devices through an exterior network data cable.

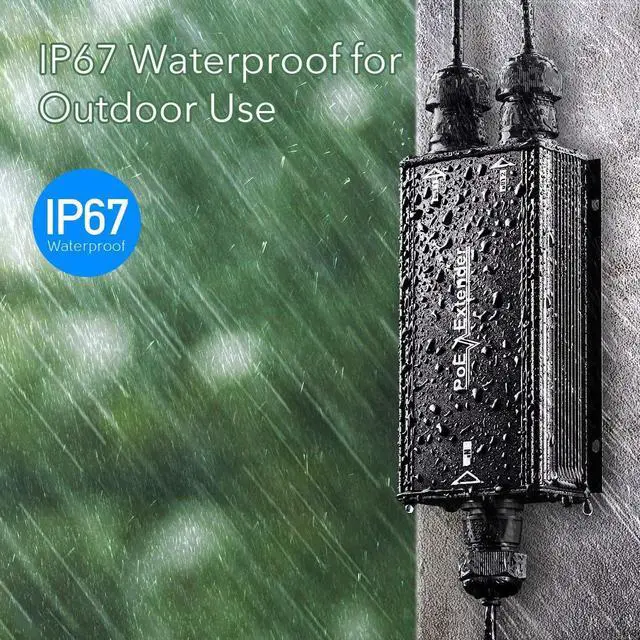

- IP67 Waterproof, designed for outdoor use. The PoE Extender includes watertight connectors on the input and output ends. With Surge protection and working temperatures of -25°C to 55°C, it will withstand inclement weather. *DO NOT SUBMERGE OR BURY*
- The input port is IEEE802.3 bt/at/af compliant, which support up to 60 watts PoE power input. While two output PoE ports is 802.3at/af compliant, support to deliver up to 30 watts PoE power per port.

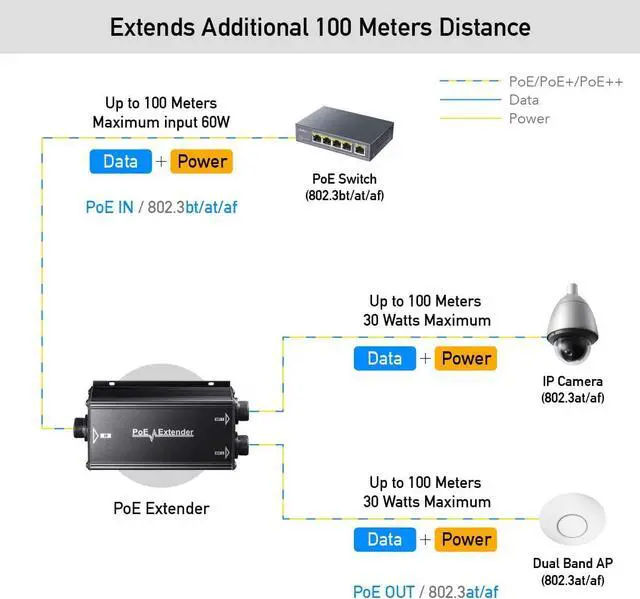

- Extends an additional 100m for PoE network. Daisy chain support connect up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.).
- Wall-mount design,plug and play, no additional power supply required.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical
Number of Channels 1 PoE/PoE+/PoE++ Input, 2 PoE/PoE+ Output
PoE Standard Input: 802.3 bt(PoE++)/ 802.3 at (PoE+)/ 802.3 af (PoE), Output: 802.3 at (PoE+)/ 802.3 af (PoE)
Ethernet Speed 10/100/1000Mbps Half/Full Duplex
Connectors Waterproof RJ-45 EIA 568A and 568B
Ethernet Cable Requirement Outdoor type Shielded category 5e (or higher)
Mounting Wall of shelf
Environment Indoor or Outdoor
Pin Assignment&Polarity Input: 1/2 (-) 3/6 (+) 7/8 (-) 4/5 (+), Output: 1/2 (+)3/6 (-)
Environmental Conditions Operating Ambient Temperature: -25 to 55°C
Operating Humidity: Maximum 90%Non-condensing
Storage Temperature: -30 to 70°C, Storage Humidity: Maximum 95%Non-condensing
Gigabit Speed
The PoE Extender features one 10/100/1000Mbps PoE+ input port and two 10/100/1000Mbps PoE+ output port.
Wall Mount Design
The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage

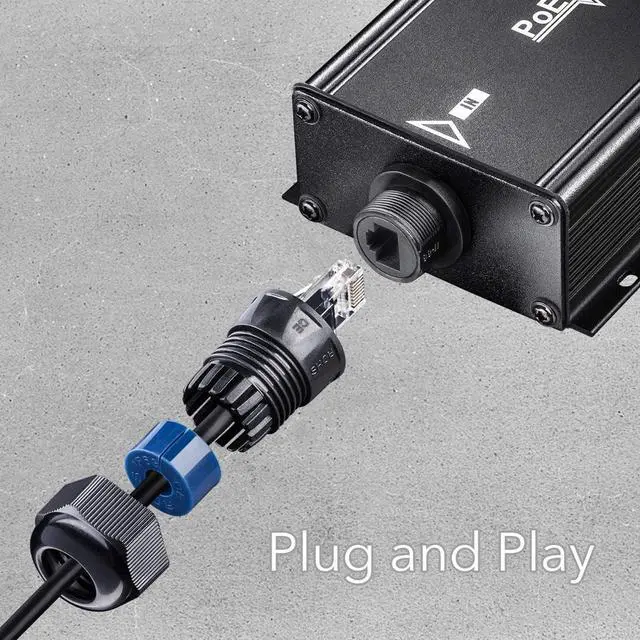

Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and
Polarity Input: both 1/2(-), 3/6(+) and 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).
Specifications
Number of Channels 1 PoE/PoE+/PoE++ Input, 2 PoE/PoE+ Output
PoE Standard Input: 802.3 bt(PoE++)/ 802.3 at (PoE+)/ 802.3 af (PoE), Output: 802.3 at (PoE+)/ 802.3 af (PoE)
Ethernet Speed 10/100/1000Mbps Half/Full Duplex
Connectors Waterproof RJ-45 EIA 568A and 568B
Ethernet Cable Requirement Outdoor type Shielded category 5e (or higher)
Mounting Wall of shelf
Environment Indoor or Outdoor
Pin Assignment&Polarity Input: 1/2 (-) 3/6 (+) 7/8 (-) 4/5 (+), Output: 1/2 (+)3/6 (-)
Environmental Conditions Operating Ambient Temperature: -25 to 55°C
Operating Humidity: Maximum 90%Non-condensing
Storage Temperature: -30 to 70°C, Storage Humidity: Maximum 95%Non-condensing
Gigabit Speed
The PoE Extender features one 10/100/1000Mbps PoE+ input port and two 10/100/1000Mbps PoE+ output port.
Wall Mount Design
The wall-mounted design is convenient for network deployment, allowing the expander to be installed in any position, and ensuring stability and avoiding damage
Plug and Play
Plug and Play, no other settings required. No external power required. Pin Assignment and
Polarity Input: both 1/2(-), 3/6(+) and 4/5(+), 7/8(-), Output: 1/2 (+), 3/6 (-).
