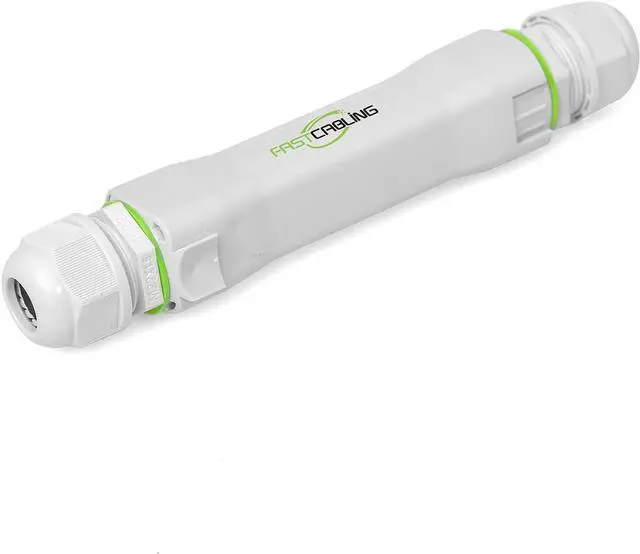

Waterproof Direct Burial PoE Extender, Ethernet Extension Breaking 100m Distance Limit, IEEE 802.3af/at/bt, PoE+, Plug and Play

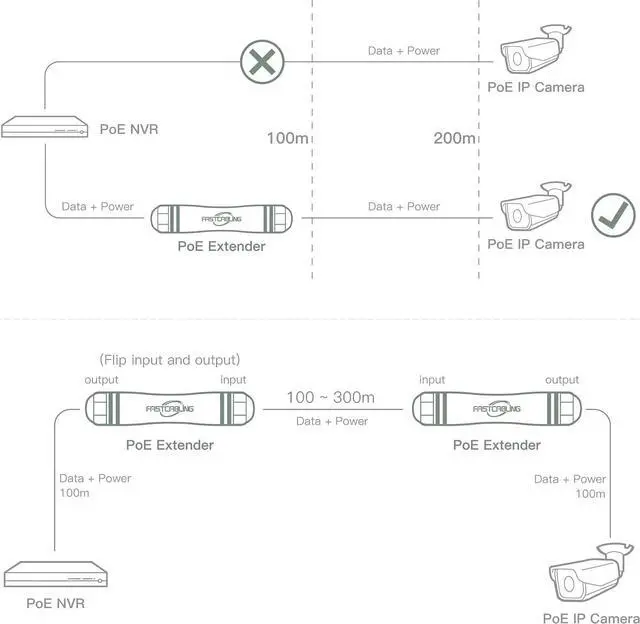

- PoE extension for another 100 meters.
- Reliable IP67 waterproof and directly burial design
- Fast transmission speed remains at 100Mbps
- Plug and Play, easy and fast installation, No required external power supply

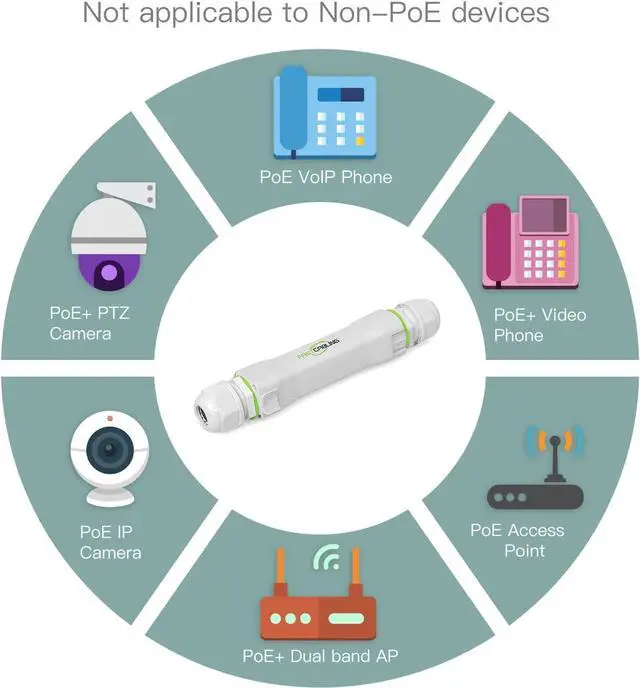

- Important: Only work with standard PoE equipment such as PoE IP camera, PoE access point, PoE VoIP. Will not work with non-PoE equipment such as network switch, laptop.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Using Pure Copper Ethernet Cable
One of the tricky things to repeat the PoE is the power loss inline. There is always PoE loss during the transmission. You should pick the pure copper Ethernet cable instead of the CCA type.

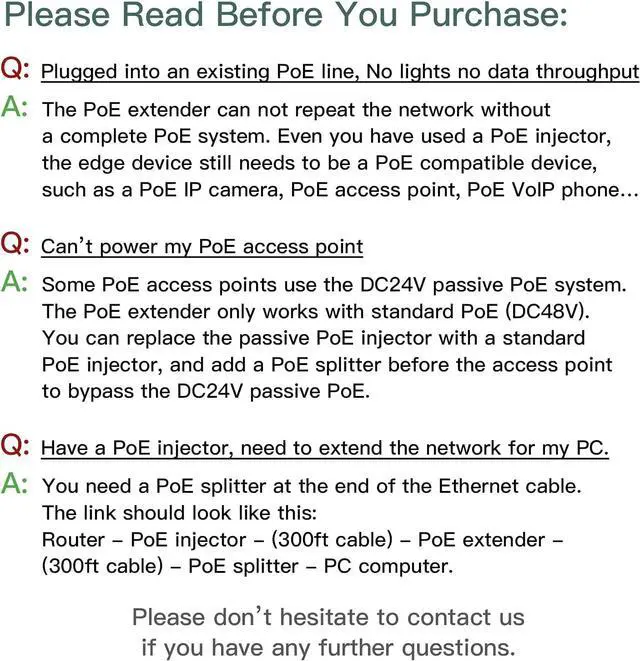

Only Repeat Standard PoE
The PoE extender can NOT repeat the passive PoE especially the 24VDC type. The PoE extender will consider DC24V is over lower voltage status and set itself to the protection mode.

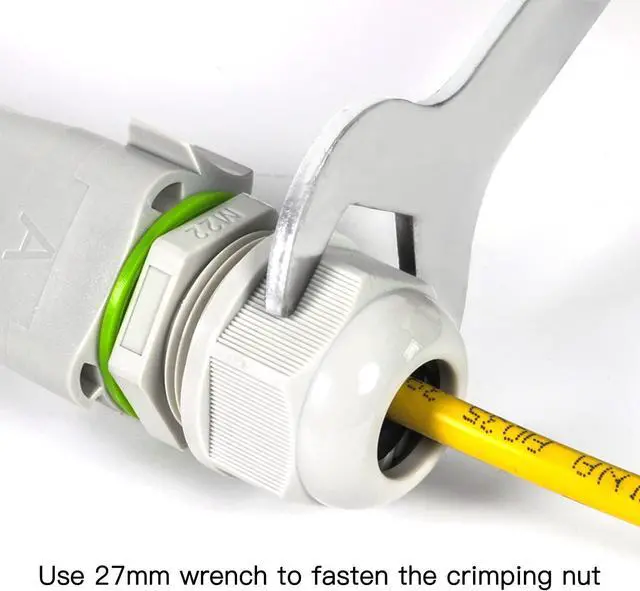

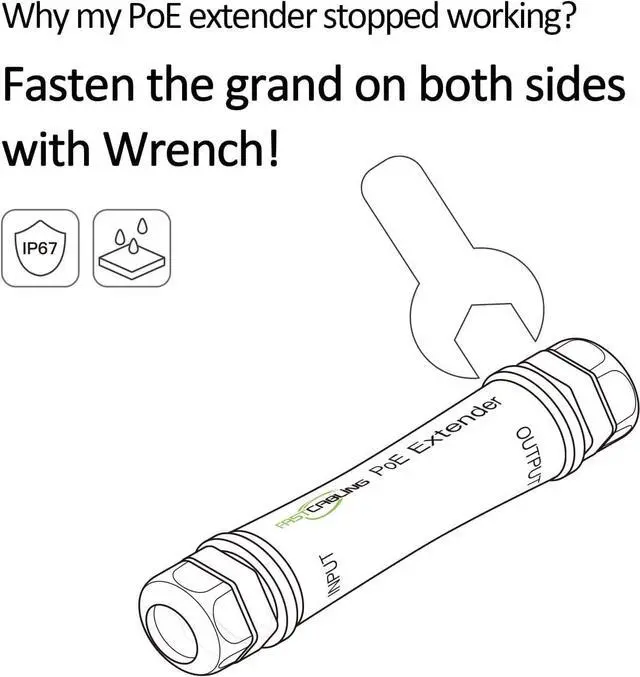

IP67 Waterproof with Wrench Fasten
The 27mm wrench is a "MUST" use tool to fasten the gland, otherwise, the extender can't achieve IP67 waterproof rated. The water may sneak into the RJ45 connectors.
Technical
Number of Ports 1 port PoE in, 1 port PoE out
Data Rate 10/100 BaseTX
Standard IEEE 802.3 af, IEEE 802.3 at
PoE Input 1/2(-), 3/6(+) or 7/8(-), 4/5(+) or 4 pairs working with 5720-74
PoE Output 1/2(-), 3/6(+) or 7/8(-), 4/5(+) or 4 pairs working with 5720-74
Connectors Shielded RJ45, EIA 568A and 568B
Network Cables Shielded category 5 (or higher)
Surge Protection Differential mode±2KV, Common mode±4KV
Waterproof Rating IP67
Operating Temperature -10°C ~ 55°C 5 to 90% RH (non-condensing)
Storage Temperature -40°C ~ 70°C
Humidity 5 to 90% RH (non-condensing)
One of the tricky things to repeat the PoE is the power loss inline. There is always PoE loss during the transmission. You should pick the pure copper Ethernet cable instead of the CCA type.
Only Repeat Standard PoE
The PoE extender can NOT repeat the passive PoE especially the 24VDC type. The PoE extender will consider DC24V is over lower voltage status and set itself to the protection mode.
IP67 Waterproof with Wrench Fasten
The 27mm wrench is a "MUST" use tool to fasten the gland, otherwise, the extender can't achieve IP67 waterproof rated. The water may sneak into the RJ45 connectors.
Technical
Specifications
Number of Ports 1 port PoE in, 1 port PoE out
Data Rate 10/100 BaseTX
Standard IEEE 802.3 af, IEEE 802.3 at
PoE Input 1/2(-), 3/6(+) or 7/8(-), 4/5(+) or 4 pairs working with 5720-74
PoE Output 1/2(-), 3/6(+) or 7/8(-), 4/5(+) or 4 pairs working with 5720-74
Connectors Shielded RJ45, EIA 568A and 568B
Network Cables Shielded category 5 (or higher)
Surge Protection Differential mode±2KV, Common mode±4KV
Waterproof Rating IP67
Operating Temperature -10°C ~ 55°C 5 to 90% RH (non-condensing)
Storage Temperature -40°C ~ 70°C
Humidity 5 to 90% RH (non-condensing)
